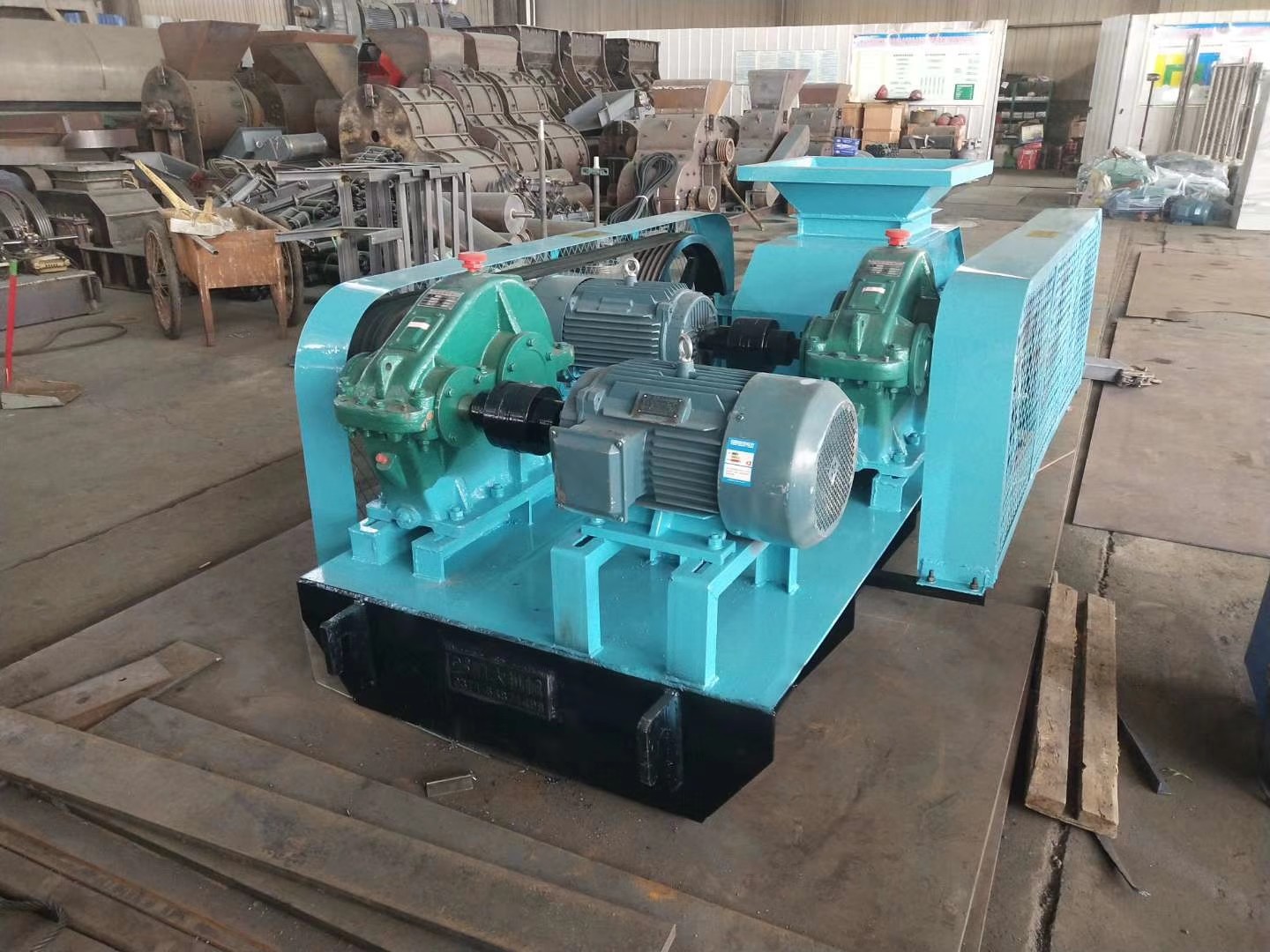

Mining Ore Double Roller Crusher Machine
| Place of Origin | China |
|---|---|
| Brand Name | Ascend |
| Certification | CE |
| Model Number | 2PG400x250 2PG610x400 2PG750x500 |
| Minimum Order Quantity | 1 set |
| Price | USD 3000-15000 Per set |
| Packaging Details | wooden box or in container |
| Delivery Time | 10 working days |
| Payment Terms | T/T, Western Union |
| Supply Ability | 20 set per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Double Roll Crusher | Application | Gold Orel Crushing |
|---|---|---|---|
| Spare Parts Material | Mn13Cr2 | Voltage | 380V 50Hz |
| Catagory | Rock Crushing Machine | Adjustment | Mechnical Way |
| Type | Teeth Or Smooth Roller Plate | ||
| High Light | Ore rock crushing machine,Mining Ore double roller crusher |
||
Product Description
20 ton per hour gold ore rock double roller crusher machine
The roll crusher machine can be classified into single roll crusher, double roll crusher, and four-roller crusher according to the roller quantity. Double roll crusher, also known as toothed roll crusher, is the most commonly used. Based on the roller speed, roll crusher machine is laid in high-speed roll crusher, low-speed roll crusher, and differential-speed roll crusher.
Working principle
The main parts of roll crusher are two rollers, one fixed roller and one movable roller. The two rollers are driven by wheels and belts. When the roll crusher machine works, the movable roller is pushed by the spring between the body and wheel to rotate forth and back. Materials fed by the vibrating feeder fall between the two rollers and get squeezed and crushed. Qualified particles will through the teeth on the rollers and are exhausted out.
Product advantages
- Large crushing ratio. When a larger crushing ratio is needed, a crushing stick-shaped device can be equipped under the rollers to adjust the crushing ratio.
- Simple structure. The modularized frame allows roll crusher to be installed at your place or to have a grouped installation.
- Low over-crushing rate. Roller crusher machine adopts a combined crushing mode, not impaction, which avoids a second crushing in the body.

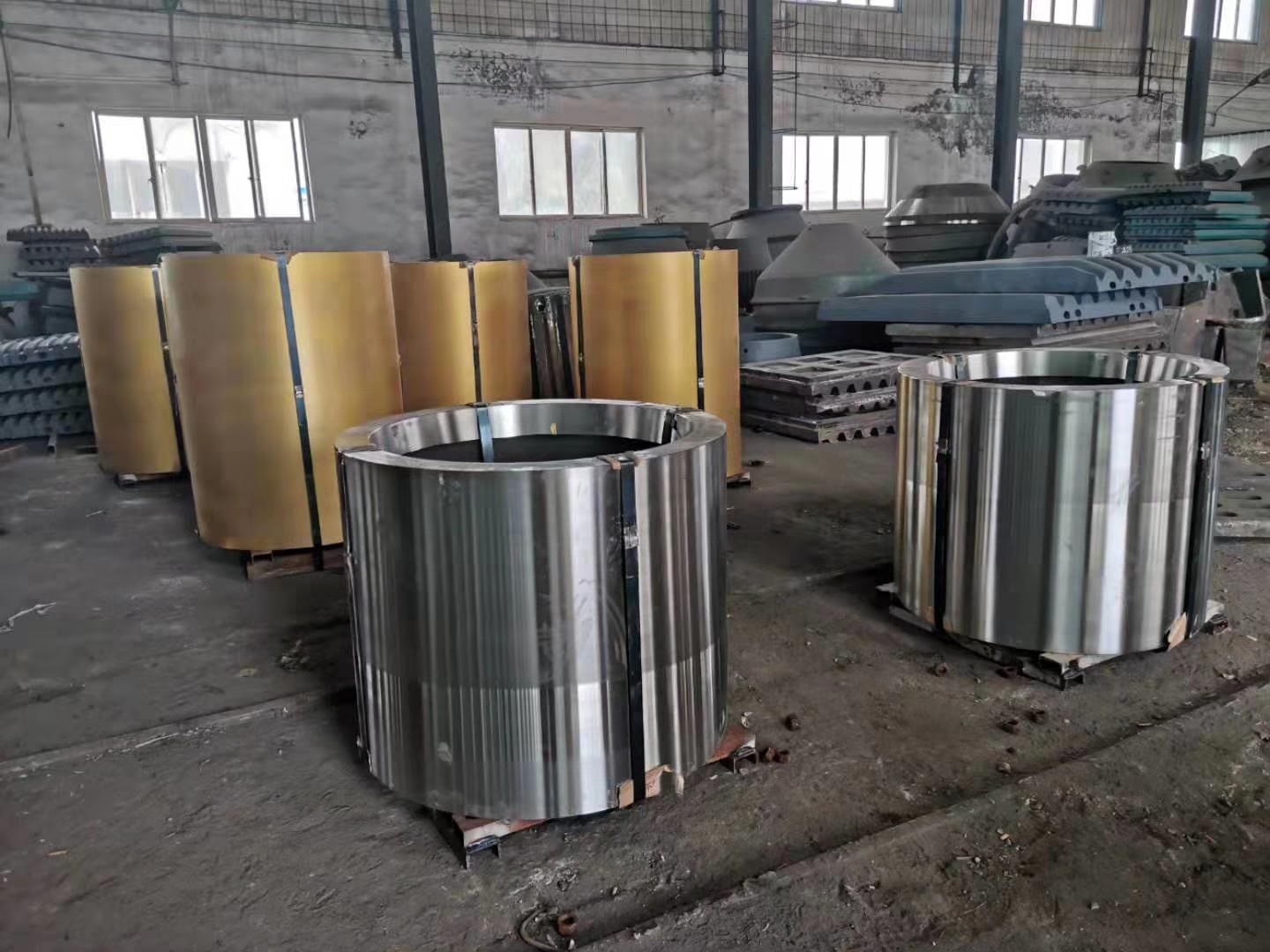

Product spare parts
Product specifications
| Model |
Max. Feeding size (mm) |
Discharge size (mm) |
Capacity (t/h) |
Motor power (kw) |
Weighy (t) |
| 2PG-400*250 | 25 | 1-8 | 5-10 | 5.5*2 | 1.5 |
| 2PG-610*400 | 40 | 1-20 | 13-35 | 15*2 | 4.5 |
| 2PG-750*500 | 2-20 | 15-40 | 18.5*2 | 12.25 | |
| 2PG-900*500 | 3-40 | 20-50 | 22*2 | 14 | |
| 2PGC450*500 | 300 | 15-75 | 20-45 | 7.5*2 | 4.2 |
| 2PGC600*750 | 400 | 15-125 | 30-180 | 18.5*2 | 7.8 |
| 2PGC600*900 | 40-100 | 18.5*2 | 8.4 | ||
| 2PGC600*1200 | 50-120 | 22*2 | 11.2 | ||
| 2PGC800*1000 | 20-150 | 80-180 | 22*2 | 12.6 | |
| 2PGC800*1200 | 100-220 | 30*2 | 15.2 | ||
| 2PGC900*900 | 500 | 30-150 | 80-180 | 30*2 | 14.5 |

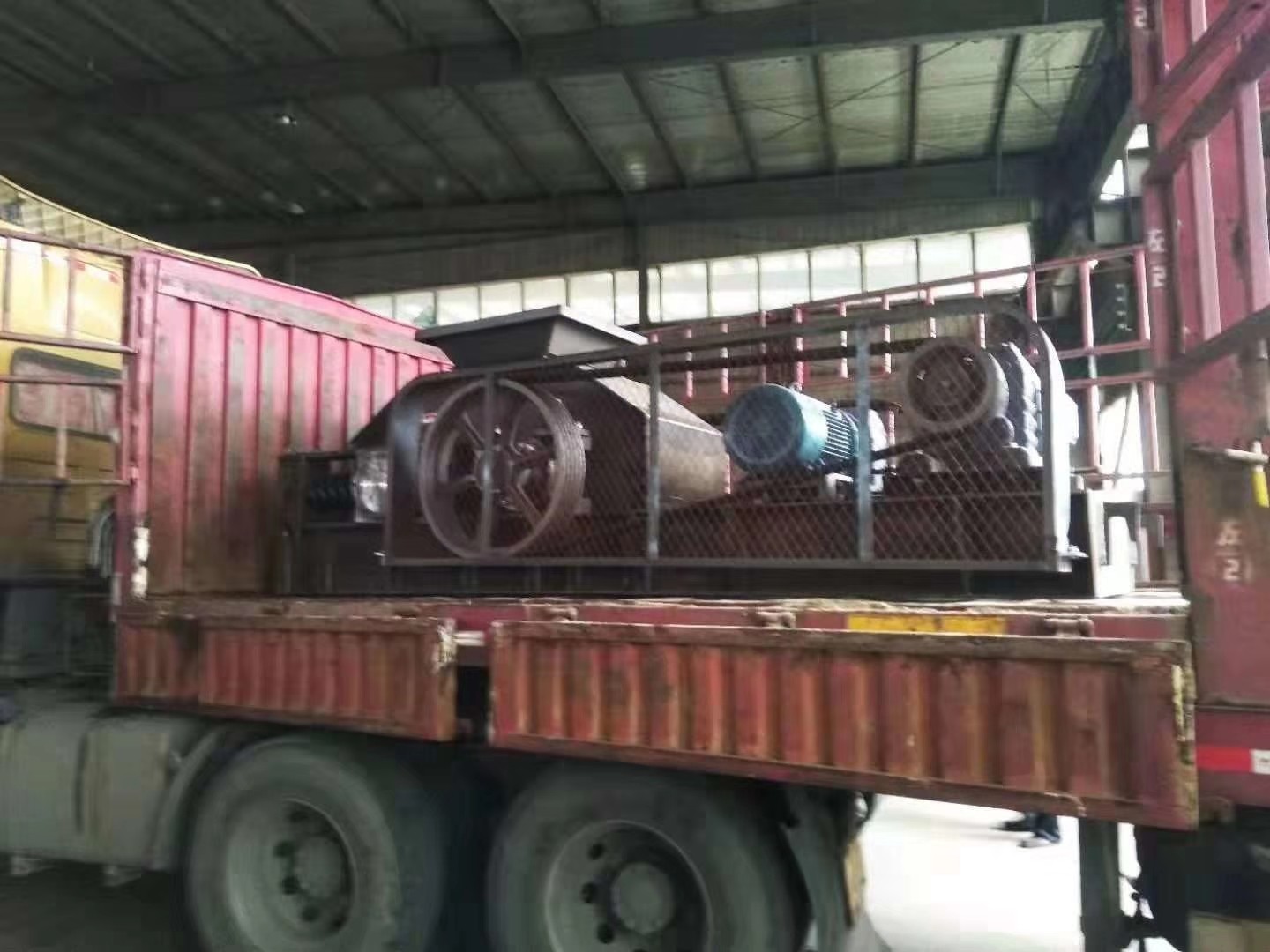

Product delivery
The two roller crusher is usually put in wooden box or container according to customer requirements.
