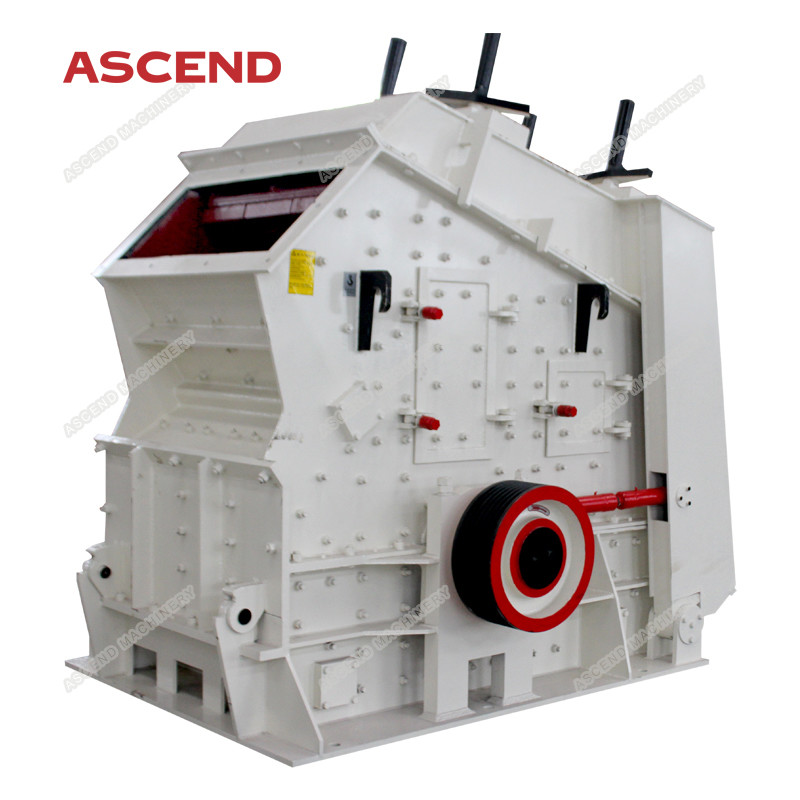

Limestone Impact Stone Crusher Machine

Place of Origin Zhengzhou, China
Brand Name Ascend
Certification ISO9001, CE
Model Number PF1010 PF1210 PF1212 PF1214
Minimum Order Quantity 1 set
Price negotiable
Packaging Details Large part is non-packed but rustproof and moisture proof then wrapped by plastic sheeting before delivery. The small parts are packed into wooden box.
Delivery Time 10-20 working days
Payment Terms L/C, T/T, Western Union, MoneyGram
Supply Ability 20-50 sets per month
Product Details
Key Words Limestone Impact Crusher Capacity 10-350tph
Spare Parts Long-term Supply, Sufficient Warranty Engineers Available To Service Machinery Overseas, Online Support, Field Installation, Commissioning And Training, Video Technical Support
Input Size Less Than 300mm Founction Secondary Impact Crushing
After-sales Service Provided Commissioning And Training
High Light

PE250x1000 limestone impact crusher


Limestone impact mill rock crusher

Leave a Message
Product Description


  Engineers Available Impact Stone Crusher Machine , 10-350 Tph Mining Impact Crusher


The impact crusher is suitable for a variety of coarse, medium and fine materials whose size is no more than 500mm and compressive strength is no more than 350MPa due to the new manufacturing technology and unique design of the structure.


The impact crusher is mainly divided into two categories: the single-rotor and double-rotor. It features high crushing ratio, high capacity, simple crushing process, low energy consumption, and convenient maintenance and its finished products are cubic in excellent shape without any tension or cracks.

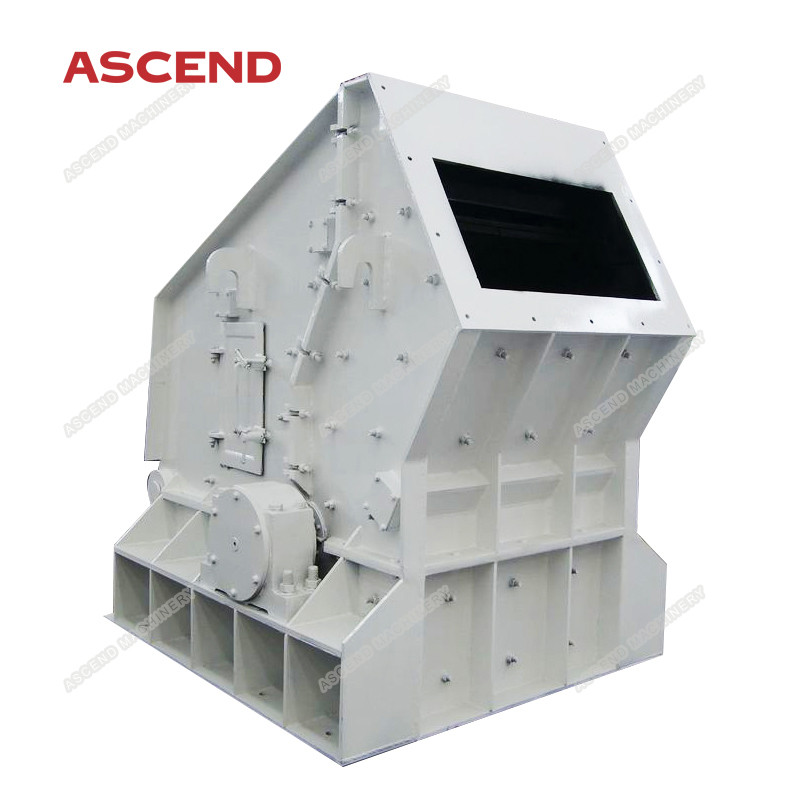

     Limestone Impact Stone Crusher Machine 0



impact crusher, granite rock crusher , stone crusher advantages:

  • Cost-effective and Energy-saving

    The impact crusher has a large feeding inlet and a large crushing chamber. It can process those large and high-hardness materials and the finished products have little stone powder.

  • Optimum particle shapes

    The gap between the impacting plate and the hammer can be optionally adjusted to effectively control the discharge granularity, thus producing beautiful finished products in a uniform size.

  • Unique Structure

    The machine is rigid and compact, and its rotor has high inertia.

  • High Comprehensive Effect

    High chrome hammer is resistant to impact and wear and provides large impacting force.

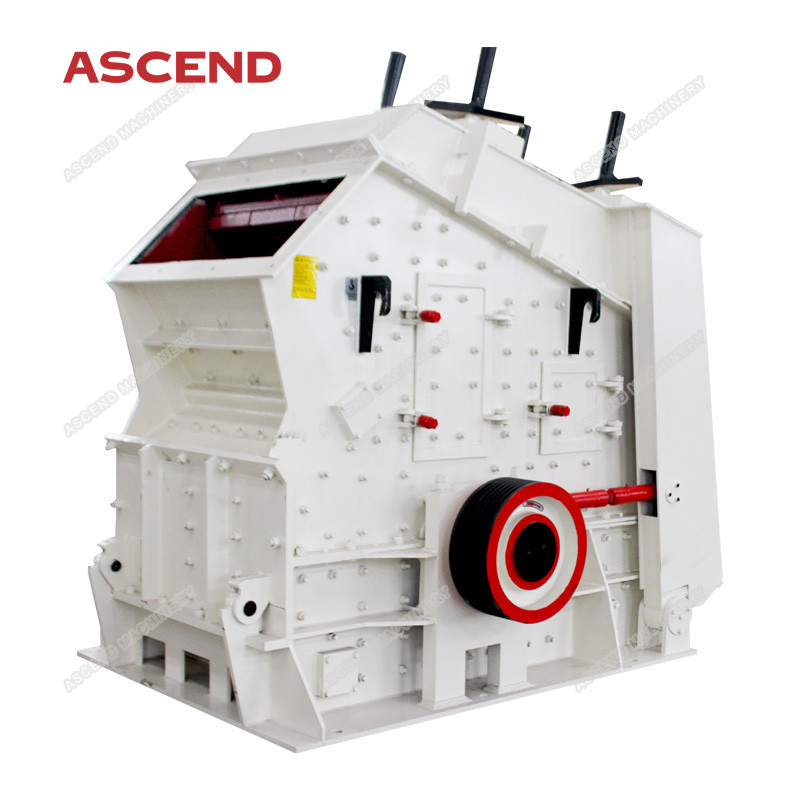

       Limestone Impact Stone Crusher Machine 1


Working Principle


The impact crusher is a mechanical device that uses impact energy to crush materials with medium hardness. The rotor rotates at a high speed under the driving force of the motor, and the ore obtains huge kinetic energy from the process. After entering the action area of the hammer, the materials are hit and crushed by the hammer on the rotor, then thrown at a high speed to the counter-attack device and broken again. Finally, they are rebounded from the impacting liner back to the zone and crushed. This is a repeated process, and the materials are broken in the first, second and third impacting chambers. When crushed into being in required particle size, the materials are discharged from the discharge port. Users can adjust the gap between the counter-rack and the rotor to achieve the goal of changing the materials’ discharging size and shape.

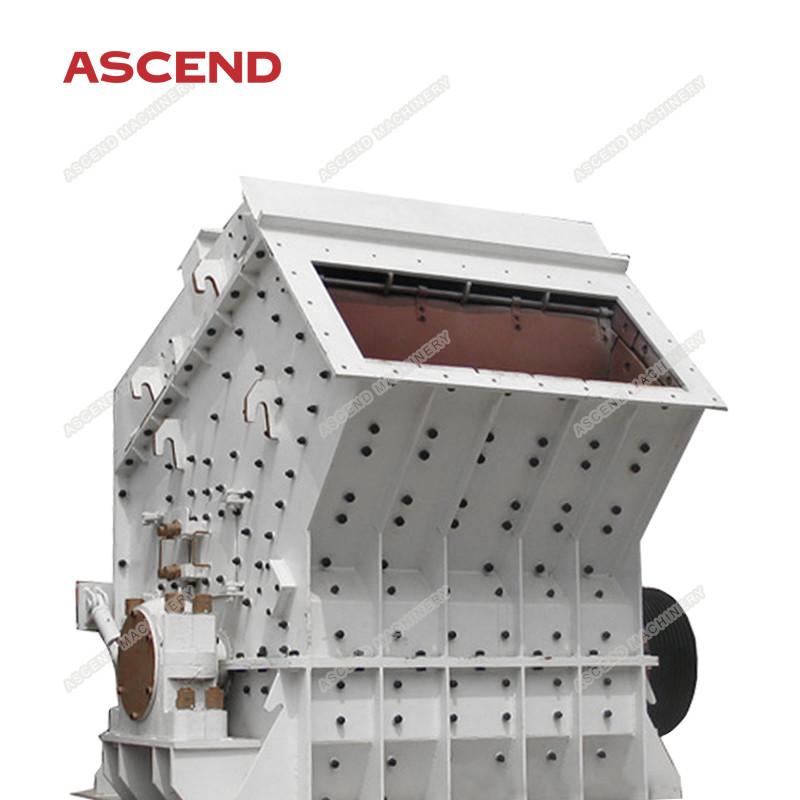

              Limestone Impact Stone Crusher Machine 2



Model Specification
The Maximum
Feeding Size
PF-1007 Φ1000×700 400×730 300 30-70 4P 37-45 2330×1660×2300 12
PF-1010 Φ1000×1050 400×1080 350 50-90 4P 45-55 2370×1700×2390 15
PF-1210 Φ1250×1050 400×1080 350 70-130 6P 110 2680×2160×2800 17.7
PF-1214 Φ1250×1400 400×1430 350 80-180 6P 132 2650×2460×2800 22.4
PF-1315 Φ1320×1500 860×1520 500 100-280 6P 200 3180×2720×3120 27
PF-1320 Φ1300×2000 993×2000 500 140-380 6P 250 3220×3100×3120 34
PF-1520 Φ1500×2000 830×2040 700 200-550 4P 315-400 3959×3564×3330 50.6
PF-1820 Φ1800×2000 1260×2040 800 400-800 4P 630-710 4400×3866×4009 83.21
