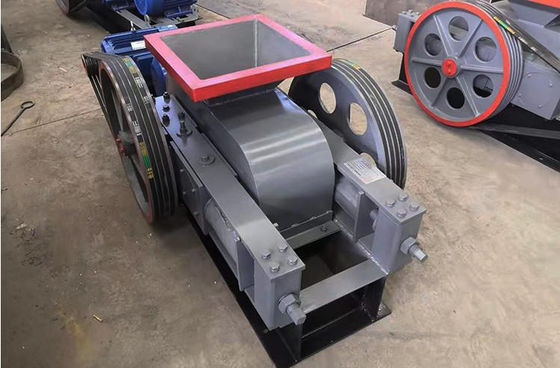

Gold Ore 380V Double Roll Crusher Machine

Place of Origin China
Brand Name Ascend
Certification CE
Model Number 2PG400x250 2PG610x400 2PG750x500
Minimum Order Quantity 1 set
Price USD 3000-15000 Per set
Packaging Details wooden box or in container
Delivery Time 10 working days
Payment Terms T/T, Western Union
Supply Ability 20 set per month
Product Details
Name Two Roller Crusher Application Stone Crushing
Spare Parts Material Mn13Cr2 Voltage 380V 50Hz
Catagory Stone Crushing Machine Warranty One Year
High Light

Gold Ore toothed roll crusher

,

rock double roller crusher

Leave a Message
Product Description

High efficiency gold ore rock double roller crusher mill

Double roller Crusher is widely used for secondary and fine crushing in the industry of mining, building materials, chemical industry, metallurgy and so on. It can crush materials in middle hardness such as rocks, ore, coke, lump coal, slag, mineral slag, cement clinker, fireproof materials, etc.It is ideal secondary crushing equipment to replace the ball mill or impact crusher machine.

Gold Ore 380V Double Roll Crusher Machine 0



Working principle

The materials to be crushed fall from the feeding hopper to the space between the two rolls, after being squeezed and crushed, the final products will be discharged by gravity. There are springs behind each roller, in case hard materials are fed, they can protect the rollers from damage.

Gold Ore 380V Double Roll Crusher Machine 1

Product advantages

1. Compact structure, reliable performance
2. Low noise and high efficiency
3. Easy to install and only need simple foundation
4. It can adjust the pressure and size easily, and can be made to meet the customer's request
5. Self-protection, the parts can not be damaged when hard materials such as the metals goes into the crushing cavity
6. Low attrition rate and easy to maintain

Gold Ore 380V Double Roll Crusher Machine 2Gold Ore 380V Double Roll Crusher Machine 3Gold Ore 380V Double Roll Crusher Machine 4

Product spare parts

Gold Ore 380V Double Roll Crusher Machine 5

Gold Ore 380V Double Roll Crusher Machine 6

Product specifications

Model

Max. Feeding size

(mm)

Discharge size

(mm)

Capacity

(t/h)

Motor power

(kw)

Weighy

(t)

2PG-400*250 25 1-8 5-10 5.5*2 1.5
2PG-610*400 40 1-20 13-35 15*2 4.5
2PG-750*500 2-20 15-40 18.5*2 12.25
2PG-900*500 3-40 20-50 22*2 14
2PGC450*500 300 15-75 20-45 7.5*2 4.2
2PGC600*750 400 15-125 30-180 18.5*2 7.8
2PGC600*900 40-100 18.5*2 8.4
2PGC600*1200 50-120 22*2 11.2
2PGC800*1000 20-150 80-180 22*2 12.6
2PGC800*1200 100-220 30*2 15.2
2PGC900*900 500 30-150 80-180 30*2 14.5



Product delivery

The two roller crusher is usually put in wooden box or container according to customer requirements.

Gold Ore 380V Double Roll Crusher Machine 7

Gold Ore 380V Double Roll Crusher Machine 8

Gold Ore 380V Double Roll Crusher Machine 9
