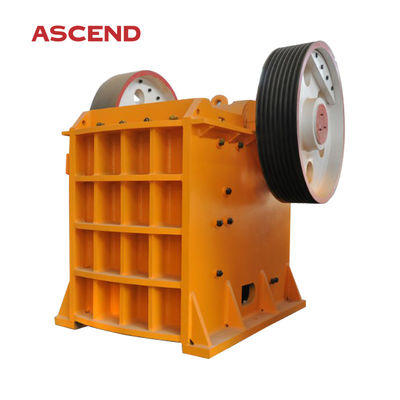

PE600x900 PE750x1060 Manganese Plate Jaw Crusher Mining Equipment

Place of Origin Zhengzhou, China
Brand Name Ascend
Certification ISO9001, CE
Model Number PE500x750 PE600x900 PE750x1060
Document Product Brochure PDF
Minimum Order Quantity 1 set
Price USD 3000-18000
Packaging Details jaw crusher Free installation and technical training. 1. small parts are wooden box package. 2. main engine nude packing, container, or upon customers requirement.
Delivery Time 10-20 working days
Payment Terms T/T, Western Union, MoneyGram, L/C
Supply Ability 20 Sets per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Jaw Crusher Color Optional
Material High Manganese Mn13Cr2 Function Crushing, Mining, Construction, Etc.
Highlight

PE600x900 Jaw Crusher Mining Equipment

,

lead stone crushing machine

Leave a Message
Product Description

Widely used jaw crusher in minging business

High efficiency Jaw crusher

Jaw crusher is traditional primary stone crusher machine, widely used in mining, construction, road building, infrastructuring and other industries. It is mainly used to crush material like granite, limestone, basalt, gold, copper, iron, lead and zinc ore, etc.



PE600x900 PE750x1060 Manganese Plate Jaw Crusher Mining Equipment 0



Jaw crusher advantages

Jaw crusher is widely used in various materials processing of mining&construction industries, such as it is suit for crushing granite,marble, basalt, limestone, quartz, cobble, iron ore, copper ore, and someother mineral &rocks.



PE600x900 PE750x1060 Manganese Plate Jaw Crusher Mining Equipment 1



working principle

When PE jaw crusher works, through the motor's wheels, the triangle belt and slot wheel drive the eccentric shaft, it makes the movable jaw plate move by a regulated track. Therefore, the materials in the crushing cavity which composed of fixed jaw plate, movable jaw plate and side-lee board can be crushed and the final products will be discharged from the discharging port.



              PE600x900 PE750x1060 Manganese Plate Jaw Crusher Mining Equipment 2



Product pictures



PE600x900 PE750x1060 Manganese Plate Jaw Crusher Mining Equipment 3PE600x900 PE750x1060 Manganese Plate Jaw Crusher Mining Equipment 4PE600x900 PE750x1060 Manganese Plate Jaw Crusher Mining Equipment 5



Jaw crusher specifications

Model Feeding mouth size
(mm)
Max Feeding size
(mm)
Adjusting range
of output size
(mm)
Capacity
(t/h)
rotation speed
(r/min)
Power
(kw)
Weight
(t)
Dimension
(L×W×H)
(mm)
PE-150×250 150×250 125 10-40 1-3 260 5.5 0.7 1000×870×990
PE-200×300 200×300 180 15-50 2-6 260 7.5 1 1050×920×990
PE-220×350 220×350 200 18-55 4-10 260 11 1.3 1100×970×990
PE-250×400 250×400 210 20-60 5-20 300 15 2.8 1300×1090×1270
PE-400×600 400×600 340 40-100 16-60 275 30 7 1730×1730×1630
PE-500×750 500×750 425 50-100 40-110 275 55 12 1980×2080×1870
PE-600×900 600×900 500 65-160 50-180 250 55 17 2190×2206×2300
PE-750×1060 750×1060 630 80-140 110-320 250 110 31 2660×2430×2800
PE-900×1060 900×1060 685 230-290 230-390 250 110 33 2870×2420×2940
PE-900×1200 900×1200 750 95-165 220-450 200 110 52 3380×2870×3330
PE-
PEX-150×750 150×750 120 18-48 8-25 320 15 3.8 1200×1530×1060
PEX-250×750 250×750 210 25-60 13-35 330 30 5.5 1380×1750×1540
PEX-250×1000 250×1000 210 25-60 16-52 330 30 7 1560×1950×1390
PEX-250×1200 250×1200 210 25-60 20-61 330 37 9.7 2140×1660×1500
PEX-300×1300 300×1300 250 20-90 16-105 300 55 15.6 2720×1950×1600
