Ore Mineral Rock Grinding Rod Mill

Place of Origin China
Brand Name Ascend
Certification CE/ISSO9001
Model Number 900x1200, 1200x1500 1500x3000 1830x3000
Minimum Order Quantity 1 set
Price USD 3500-35000 Per set
Packaging Details Water and rust proof in wooden box or cotainer
Delivery Time 7-10 working days
Payment Terms T/T, Western Union
Supply Ability 10 set per month
Product Details
Name Grinding Rod Mill Application Mining Ore And Stone Crushing
Grinding Media Casting Steel Rod Motor AC Motor
Warranty One Year Color Customized
Power 30 To 120KW
High Light

Rock grinding ball mill


quartz grinding rod mill

Leave a Message
Product Description

High Capacity Mineral Ore Rod Mill For Stone Crushing And Grinding

A Rod mill is a type of grinder used to grind, blend and sometimes for mixing of materials for use in mineral dressing processes, paints, pyrotechnics, ceramics and selective laser sintering. It works on the principle of impact and attrition: size reduction is done by impact as the balls or steel rods drop from near the top of the shell.

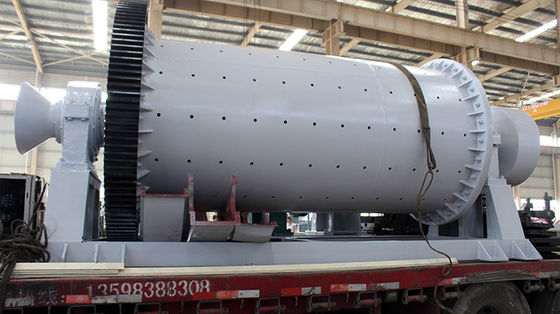

Ore Mineral Rock Grinding Rod Mill 0

Working principle

Rod mill is Suitable for wet crushing,coarse grinding various hardness ores and other materials,especially for the artificial sand process of adjustment fineness mesh.Rod mill Sand and gravel industry is widely used in construction and gravel equipment,mainly for feldspar, quartz, river gravel processing of raw materials such as ore crushing.Cylinder rotates at a constant speed,the friction and grinding action of centrifugal force to be thrown up to a certain height,so that the material under attack grinding, and achieve the purpose.

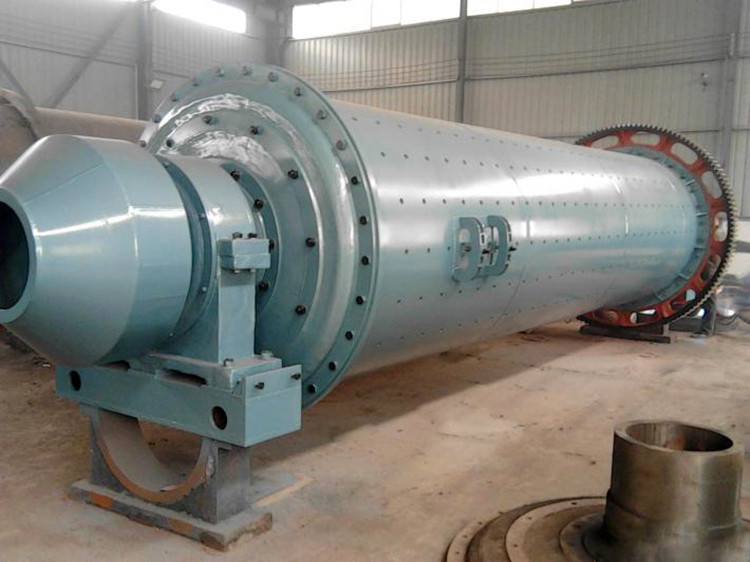

Ore Mineral Rock Grinding Rod Mill 1

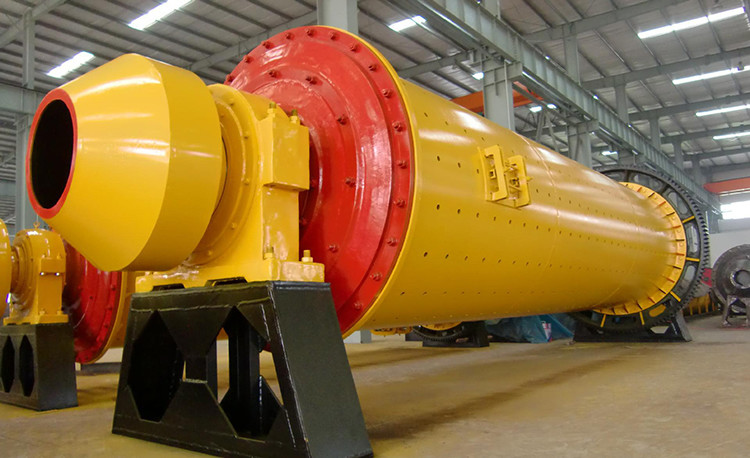

Ore Mineral Rock Grinding Rod Mill 2

Product advantages

(1) Rod mill is usually selected in order to prevent over grinding in gravity or magnetic separation plant of tungsten tin and other rare metals mine;
(2) In two stages grinding, the capacity of rod mill machine used in the first stage grinding is larger than ball mill’s;
(3) In some cases, rod mill can replace short head cone crusher.

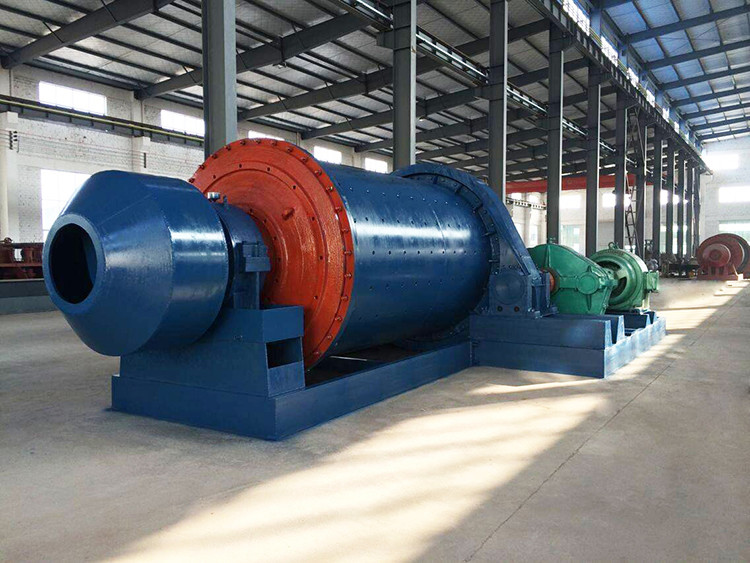

Ore Mineral Rock Grinding Rod Mill 3

Spare parts

Ore Mineral Rock Grinding Rod Mill 4
