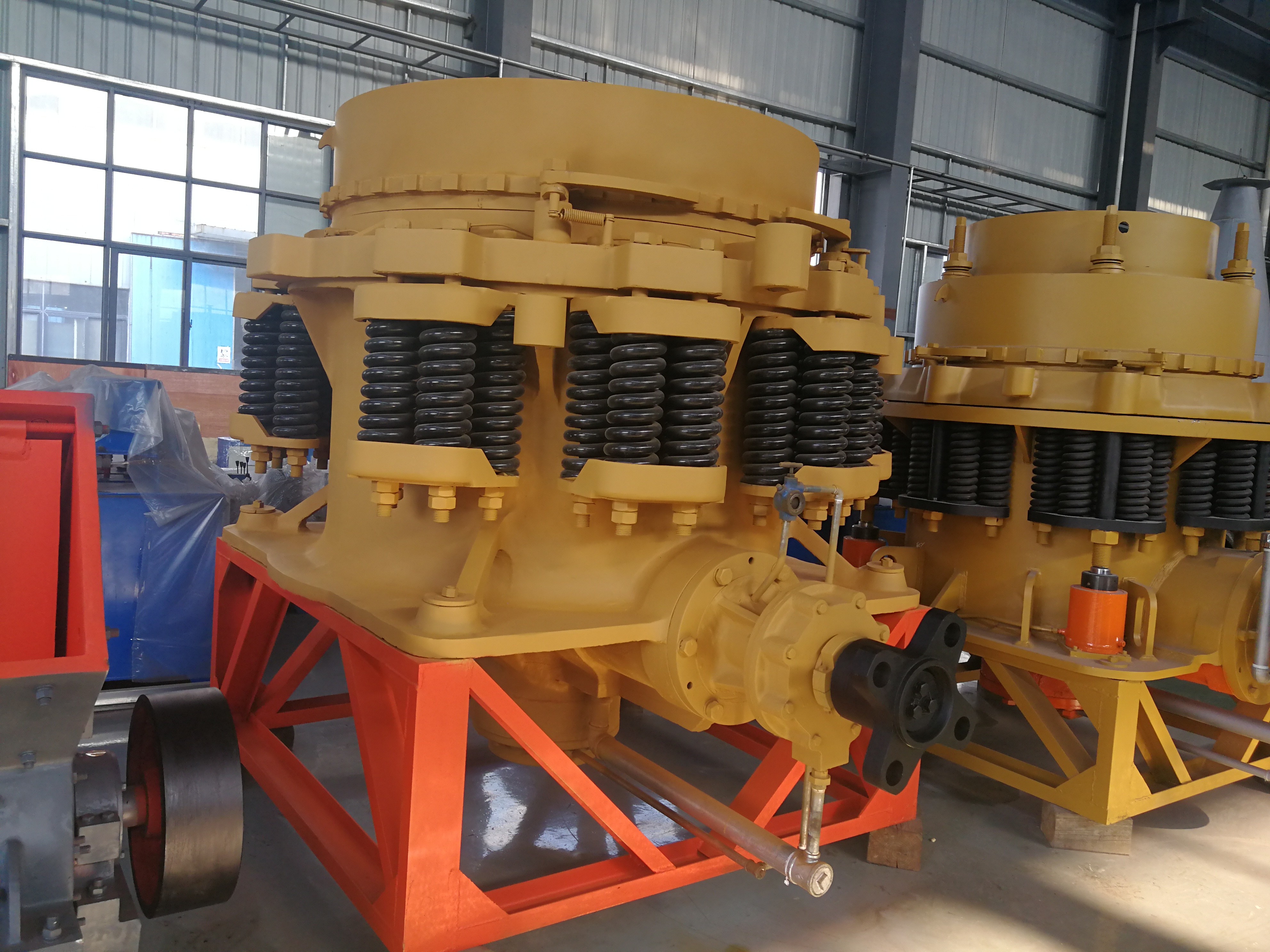

Granite River Stone Hydraulic Cone Crusher
Place of Origin | China |
---|---|
Brand Name | Ascend |
Certification | CE |
Model Number | CS75 CS160 CS240 |
Document | Product Brochure PDF |
Minimum Order Quantity | 1 set |
Price | USD 3500-35000 Per set |
Packaging Details | water and rust proof in container |
Delivery Time | 7-10 working days |
Payment Terms | T/T, Western Union |
Supply Ability | 10 set per month |

Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xApplication | Quarry And Mining Ore | Key Words | Symons Spring And Hydraulic Cone Crusher |
---|---|---|---|
Warranty | One Year | Spare Parts Name | Mantle And Concave |
Dimension(l*w*h) | 2726X1950X2182 | Motor Type | AC Motor |
Capacity(t/h) | 30-90(t/h) | ||
Highlight | Granite Hydraulic Cone Crusher,River Stone Roller Crusher machine |
Granite river stone hard rock cone crusher crushing plant
Cone crusher is widely used in metallurgy,building materials, mining, chemical and other industries.It can perform medium and find crushing operations on iron ore,cooper ore,limestone,quartz,granite,sandstone and other medium and medium hardness materials.The Standard type is suitable for medium ,medium and short heads for fines.
Working principle
Cone crusher consists of frame, transmission device, hollow eccentric shaft, bowl-shaped bearing, crushing cone, springs and hydraulic pressure station for adjusting discharge opening. During operation, the motor drives the eccentric shaft shell to turn around through ahorizontal axle and a pair of bevel gear. The axle of crushing cone swings with the force of eccentric shaft shell so that the surface of the crushing wall is close to the roll mortar wall from time to time. In this way, the ores and rocks will be pressed and crooked and crushed.
Product pictures
1. Flexible transmission, automatic clearing
2. Energy saving, environmental protection
3. High performance and good product granularity
4. High reliability, easy maintenance and easy operation.
5. Wide range of application
Cone crusher Spare parts
Product specifications
Type | Diameter of cylinder (mm) |
Feeding size (mm) |
Adjustment range of output size (mm) |
Capacity (t/h) |
Rotation speed (r/min) |
Power (kw) |
Overall size (mm) |
Weight (t) |
PYB600 | 600 | 65 | 12-25 | 15-25 | 356 | 30 | 1740*1225*1940 | 5.5 |
PYZ600 | 600 | 45 | 5-18 | 8-23 | 356 | 30 | 1740*1225*1940 | 5.5 |
PYD600 | 600 | 36 | 3-13 | 5-20 | 356 | 30 | 1740*1225*1940 | 5.5 |
PYB900 | 900 | 115 | 15-50 | 50-90 | 333 | 55 | 2692*1640*2350 | 11.2 |
PYZ900 | 900 | 60 | 5-20 | 20-65 | 333 | 55 | 2692*1640*2350 | 11.2 |
PYD900 | 900 | 50 | 3-13 | 15-50 | 333 | 55 | 2692*1640*2350 | 11.3 |
PYB1200 | 1200 | 145 | 20-50 | 110-168 | 300 | 110 | 2790*1878*2844 | 24.7 |
PYZ1200 | 1200 | 100 | 8-25 | 42-135 | 300 | 110 | 2790*1878*2844 | 25 |
PYD1200 | 1200 | 50 | 3-15 | 18-105 | 300 | 110 | 2790*1878*2844 | 25.3 |
PYB1750 | 1750 | 215 | 25-50 | 280-480 | 245 | 160 | 3910*2894*3809 | 50.3 |
PYZ1750 | 1750 | 185 | 10-30 | 115-320 | 245 | 160 | 3910*2894*3809 | 50.3 |
PYD1750 | 1750 | 85 | 5-13 | 75-230 | 245 | 160 | 3910*2894*3809 | 50.2 |
PYB2200 | 2200 | 300 | 30-60 | 59-1000 | 220 | 260-280 | 4622*3302*4470 | 80 |
PYZ2200 | 2200 | 230 | 10-30 | 200-580 | 220 | 260-280 | 4622*3302*4470 | 80 |
PYD2200 | 2200 | 100 | 5-15 | 120-340 | 220 | 260-280 | 4622*3302*4470 | 81.4 |
