PC400x300 PC600x400 models 8 10 15tph capacity diesel engine mobile hammer crusher mill for glass limestone gravel

  • PC400x300 PC600x400 models 8 10 15tph capacity diesel engine mobile hammer crusher mill for glass limestone gravel
  • PC400x300 PC600x400 models 8 10 15tph capacity diesel engine mobile hammer crusher mill for glass limestone gravel
  • PC400x300 PC600x400 models 8 10 15tph capacity diesel engine mobile hammer crusher mill for glass limestone gravel
  • PC400x300 PC600x400 models 8 10 15tph capacity diesel engine mobile hammer crusher mill for glass limestone gravel
  • PC400x300 PC600x400 models 8 10 15tph capacity diesel engine mobile hammer crusher mill for glass limestone gravel
  • PC400x300 PC600x400 models 8 10 15tph capacity diesel engine mobile hammer crusher mill for glass limestone gravel
  • PC400x300 PC600x400 models 8 10 15tph capacity diesel engine mobile hammer crusher mill for glass limestone gravel
Place of Origin CHINA
Brand Name ASCEND
Certification ISO9001
Model Number PC300x200,PC400x300,PC600x400
Document Product Brochure PDF
Minimum Order Quantity 1 set
Price USD 6600-7800 set
Packaging Details Water and rust proof in wooden box or container
Delivery Time 7-10 work day
Payment Terms T/T, Western Union
Supply Ability 20 set per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Mobile Hammer Crusher Machine After-sales Service Provided 1 Year
Raw Material Stones Rocks Ores Function Hard Stone Crushing
Advantage High Efficiency Low Energy
Leave a Message
Product Description



PC400x300 PC600x400 models 8 10 15tph capacity diesel engine mobile hammer crusher mill for glass limestone gravel 0






10 15tph capacity diesel engine mobile hammer crusher mill for glass limestone gravel

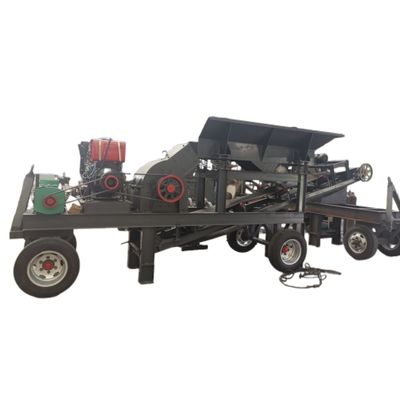

Mobile hammer crusher consists of onsists of vibrating feeder, diesel engine hammer crusher, belt conveyor and the trailer. The raw materials enter the hammer crusher through the vibrating feeder for crushing, and the crushed materials are transported out through the belt conveyor.The mobile diesel hammer crusher is specifically designed for customers who require the hammer crusher to work in remote mines or without power supply. Therefore, diesel engines can be used as an alternative to electric motors. It is widely used in making sand, brick, fine powder.

PC400x300 PC600x400 models 8 10 15tph capacity diesel engine mobile hammer crusher mill for glass limestone gravel 1PC400x300 PC600x400 models 8 10 15tph capacity diesel engine mobile hammer crusher mill for glass limestone gravel 2



Working pinciple



The working principle of the hammer crusher is that the motor drives the rotor to rotate at high speed in the crushing chamber. The material is fed into the machine from the upper feeding port and is crushed by the impact, impact, shearing and grinding of the high-speed moving hammer.

PC400x300 PC600x400 models 8 10 15tph capacity diesel engine mobile hammer crusher mill for glass limestone gravel 3



Specification



Model

Max feeding size

(mm)

Output size

(mm0

Capacity

(t/h)

Motor Power

(kw)

Weight

(kg)
PC300x200 ≤100 ≤10 2-5 5.5 600
PC400x300 ≤100 ≤10 5-10 11 800
PC600x400 ≤120 ≤15 10-25 18.5 1500
PC800x600 ≤120 ≤15 20-35 55 3100
PC1000x800 ≤200 ≤15 20-40 115 7900
PC1000x1000 ≤200 ≤15 30-80 132 8650
PC1300x1200 ≤250 ≤19 80-200 240 13600



Advantages



1. Set on the frame with wheels, easy to move and flexible;

2. It has compact structure, simple operation, high crushing ratio and fine discharge.

3. In the sand making line, it is generally used ( jaw crusher+vibrating feeder+belt conveyor+mobile hammer crusher) to form a high efficiency sand making line.

PC400x300 PC600x400 models 8 10 15tph capacity diesel engine mobile hammer crusher mill for glass limestone gravel 4



Application

PC400x300 PC600x400 models 8 10 15tph capacity diesel engine mobile hammer crusher mill for glass limestone gravel 5

PC400x300 PC600x400 models 8 10 15tph capacity diesel engine mobile hammer crusher mill for glass limestone gravel 6



Final products of the hammer crushers

PC400x300 PC600x400 models 8 10 15tph capacity diesel engine mobile hammer crusher mill for glass limestone gravel 7



Spare parts

PC400x300 PC600x400 models 8 10 15tph capacity diesel engine mobile hammer crusher mill for glass limestone gravel 8



Working site

PC400x300 PC600x400 models 8 10 15tph capacity diesel engine mobile hammer crusher mill for glass limestone gravel 9

PC400x300 PC600x400 models 8 10 15tph capacity diesel engine mobile hammer crusher mill for glass limestone gravel 10



Contact us

PC400x300 PC600x400 models 8 10 15tph capacity diesel engine mobile hammer crusher mill for glass limestone gravel 11
