Mining Vibrating Screener Equipment Diesel Engine Portable Mobile 11kw
| Place of Origin | China |
|---|---|
| Brand Name | ASCEND |
| Certification | CE/ISSO9001 |
| Model Number | 2YK1237 2YK1548 3YK2460 |
| Minimum Order Quantity | 1 set |
| Price | 4000-12900 USD Per Set |
| Packaging Details | Water and rust proof in wooden box or cotainer |
| Delivery Time | 7-10 working days |
| Payment Terms | T/T, Western Union, L/C |
| Supply Ability | 10 set per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Vibrating Screener Machine | Motor | AC Motor |
|---|---|---|---|
| Application | Mining Ore, Slag, Quarry | Color | Customized |
| Warranty | 1 Year | Dimension | 5570mmx3086mmx3296mm |
| Layer | 1-5 Layers(as Customized) | Function | Screening/Separation/Sorting/Sieving |
| High Light | Mining Vibrating Screener Equipment,Mining Ore Vibrating Screen Machine Mobile,11kw Vibrating Screen Machine |
||
Product Description

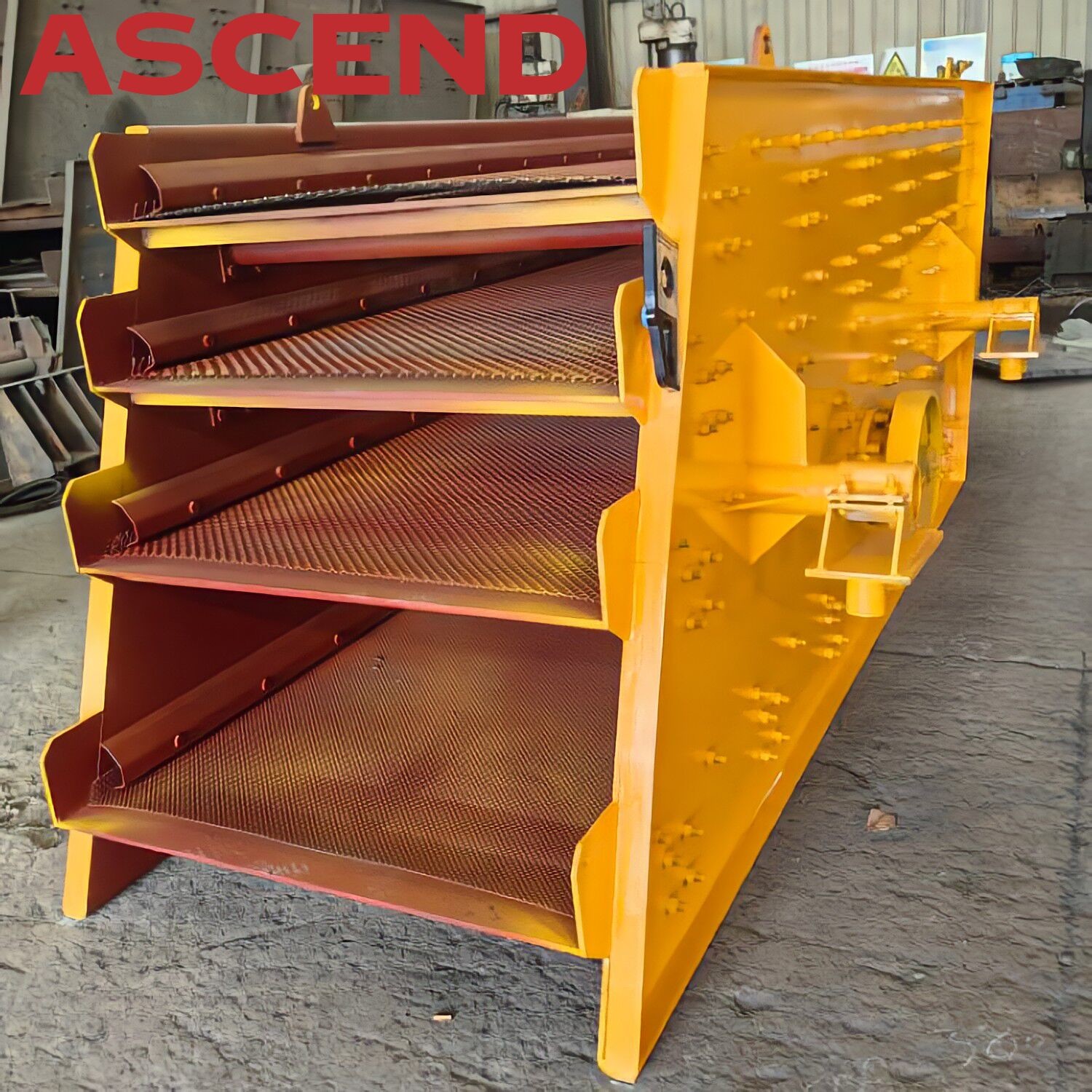

Mining Vibration Screen Diesel Engine Portable Mobile Vibrating Screener Equipment
Product Description
Vibrating Screen price are used to separate materials into various sizes for further processing or for end use. The material is separated by passing through a vibrating “screen or meshes” which has a number of different sized according to customer’s requirements. The end products can then be used in the building and construction industries. It feature advanced structure, powerful vibrating forces, low vibration noise, easy maintenance, high durability and etc.
Advantages of Vibrating Screen
1) Multi-layers of vibrating screen,
2) Unique and advanced design.
3) Powerful vibrating forces, low vibrating noise.
4) Easy to maintain, high durability, etc.
2) Unique and advanced design.
3) Powerful vibrating forces, low vibrating noise.
4) Easy to maintain, high durability, etc.
Detailed Images
Spare Parts
Working Principle
The motor makes the exciter swing rotate speedily through the tire coupling. The continuous forced circular motions of sieve box were achieved through the powerful centrifugal force. Under the influence of sieve box, the materiel are tossed forward successively on the mesh. they were classified as thrown up, and the particles smaller than the mesh size were sieved out when they are falling, so that the classification of material could be achieved.
Main Technical Parameters
| Model | Screen layer |
Screen area (m2) |
Mesh size (mm) |
Feeding size (mm) |
Capacity (m3/h) |
Vibrating frequency (r/min) |
Double amplitude (mm) |
Power (kw) |
Dimension (L×W×H) |
Weight (without motor) (t) |
Screen slope (°) |
Screen specification (mm) |
| YK1237 | 1 | 4.4 | 2-50 | 200 | 25-160 | 970 | 8 | 11 | 3857×2386×2419 | 4.8 | 15-20 | 1200×3700 |
| 2YK1237 | 2 | 4.4 | 2-50 | 200 | 25-160 | 970 | 8 | 11 | 3857×2386×2419 | 4.9 | 15-20 | 1200×3700 |
| 3YK1237 | 3 | 4.4 | 2-50 | 400 | 30-180 | 970 | 8 | 11 | 4057×2386×2920 | 5.2 | 15-20 | 1200×3700 |
| 4YK1237 | 4 | 4.4 | 2-50 | 400 | 30-180 | 970 | 8 | 11 | 4257×2386×2920 | 5.3 | 15-20 | 1200×3700 |
| YK1548 | 1 | 7.2 | 2-50 | 200 | 45-250 | 970 | 8 | 15 | 4904×2713×2854 | 5.9 | 15-20 | 1500×4800 |
| 2YK1548 | 2 | 7.2 | 2-50 | 200 | 45-250 | 970 | 8 | 15 | 4904×2713×2854 | 6.3 | 15-20 | 1500×4800 |
| 3YK1548 | 3 | 7.2 | 2-50 | 400 | 45-280 | 970 | 8 | 15 | 5104×2713×3106 | 6.5 | 15-20 | 1500×4800 |
| 4YK1548 | 4 | 7.2 | 2-50 | 400 | 45-280 | 970 | 8 | 18.5 | 5304×2713×3356 | 6.6 | 15-20 | 1500×4800 |
| YK1848 | 1 | 8.6 | 2-50 | 200 | 55-330 | 970 | 8 | 15 | 4904×3041×2854 | 6.2 | 15-20 | 1800×4800 |
| 2YK1848 | 2 | 8.6 | 2-50 | 200 | 55-330 | 970 | 8 | 15 | 4904×3041×2854 | 6.9 | 15-20 | 1800×4800 |
| 3YK1848 | 3 | 8.6 | 2-50 | 400 | 55-350 | 970 | 8 | 22 | 5104×3041×3106 | 7.2 | 15-20 | 1800×4800 |
| 4YK1848 | 4 | 8.6 | 2-50 | 400 | 55-350 | 970 | 8 | 22 | 5304×3041×3356 | 7.5 | 15-20 | 1800×4800 |
| YK1860 | 1 | 10.8 | 2-50 | 200 | 65-350 | 970 | 8 | 22 | 6166×3041×2854 | 6.4 | 15-20 | 1800×6000 |
| 2YK1860 | 2 | 10.8 | 2-50 | 200 | 65-350 | 970 | 8 | 22 | 6166×3041×2854 | 7.1 | 15-20 | 1800×6000 |
| 3YK1860 | 3 | 10.8 | 2-50 | 400 | 65-380 | 970 | 8 | 22 | 6366×3041×3106 | 7.4 | 15-20 | 1800×6000 |
| 4YK1860 | 4 | 10.8 | 2-50 | 400 | 65-380 | 970 | 8 | 30 | 6566×3041×3356 | 7.7 | 15-20 | 1800×6000 |
| YK2160 | 1 | 12.6 | 2-50 | 200 | 80-720 | 970 | 8 | 30 | 6166×3444×2854 | 9.9 | 15-20 | 2100×6000 |
| 2YK2160 | 2 | 12.6 | 2-50 | 200 | 80-720 | 970 | 8 | 30 | 6366×3444×3106 | 11.2 | 15-20 | 2100×6000 |
| 3YK2160 | 3 | 12.6 | 2-50 | 400 | 90-750 | 970 | 8 | 37 | 6566×3444×3356 | 12.4 | 15-20 | 2100×6000 |
| 4YK2160 | 4 | 12.6 | 2-50 | 405 | 90-750 | 970 | 8 | 45 | 6566×3444×3356 | 15.1 | 15-20 | 2100×6000 |
| YK2460 | 1 | 14.4 | 2-50 | 200 | 150-810 | 970 | 8 | 30 | 6166×3916×3839 | 12.2 | 15-20 | 2400×6000 |
| 2YK2460 | 2 | 14.4 | 2-50 | 200 | 150-810 | 970 | 8 | 30 | 6166×3916×3839 | 13.5 | 15-20 | 2400×6000 |
| 3YK2460 | 3 | 14.4 | 2-50 | 400 | 180-900 | 970 | 8 | 37 | 6366×3916×4139 | 13.6 | 15-20 | 2400×6000 |
| 4YK2460 | 4 | 14.4 | 2-50 | 400 | 180-900 | 970 | 8 | 45 | 6566×3916×4439 | 14.4 | 15-20 | 2400×6000 |
Packing&Shipping
Working Sites
Company Profile
- Henan Ascend Machinery & Equipment Co., Ltd. was established in 2005 and it is located in the high-tech zone of Zhengzhou City, Henan Province. As a technology driven mining equipment company, it is committed to the R&D, production, sales and after-sales service of mining machinery and equipment.
- The company's main products are crushers, grinding mill equipment, mineral beneficiation equipment, rotary dryer and crusher & grinding mill spare parts. In addition to the Chinese domestic market, Ascend machinery expands its business in more than 160 countries and regions.
Our Workshop
FAQ
Q1. Are you factory or trading company?
We are factory specialized in manufacturing stone crushers, grinding mills, beneficiation equipments and other mining equipments. Our office and factories are based in Zhengzhou, China. Because we are factory, so we can guarantee the machine quality and we can give you very competitive factory price without extra agent cost.
Q2. To which country your products have been exported before?
In Africa, We have exported to Sudan, Kenya, Zambia, Ethiopia, Zimbabwe, Guinea, Nigeria and so on. We also exported South Africa, Chile, Peru, Ecuador, New Zealand, America, Austrilia more than 160 countries. Our equipment and service have won very high reputation in these countries.
Q3. How will you help the customer install the equipment?
We will send our senior engineer to your place to guide the installation and commissioning.
Q4. How about the wear parts supply?
We offer wear parts to our customer with our most favorable price. If there are problems you could not handle, we will send our technicians to your place.
Q5.What about the payment method?
T/T, Paypal, Western Union, L/C is available.
Q6.What about after-sale service?
12 months warranty for all kinds of products; and you will get our 7*24h online service.
