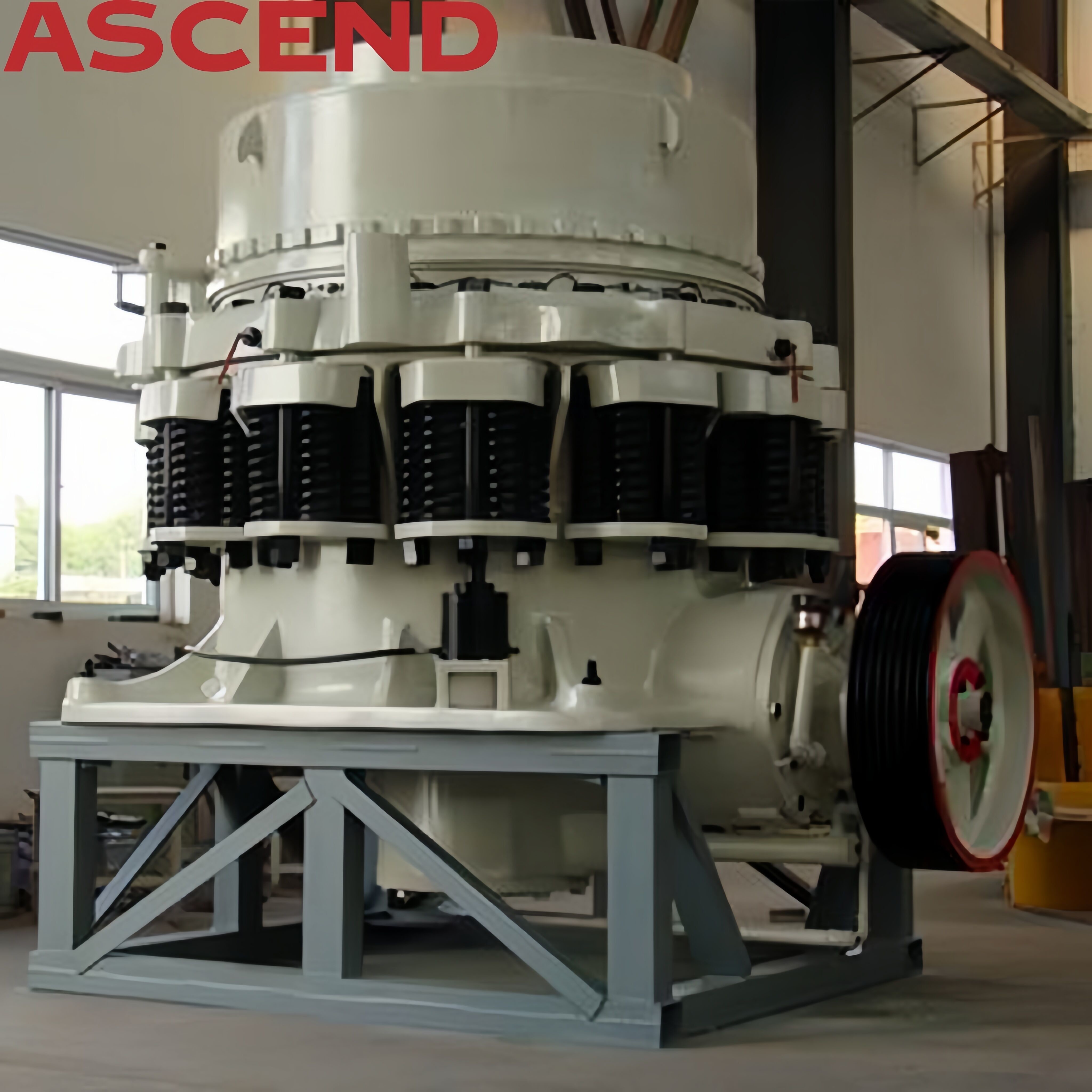

For Granite Crushing Line Instruction Manual Symons Cone Crusher Efficient Safe
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | Cone Crusher | Condition | New |
|---|---|---|---|
| Weight | 80 T | Dimension(l*w*h) | Different Models |
| Warranty | 1 Year | Capacity(t/h) | 59-1000 T/h |
| Motor Type | AC Motor | Application | Mining,Quarry,metallurgy,construction,etc |
| Power(w) | 260-280 Kw |
Product Description
Product Introduction
Hydraulic cone crusher according to the difference between the hydraulic system can be divided into multi-cylinder hydraulic cone crusher (HP series) and single cylinder hydraulic cone crusher (HCS series).
Working Principle
Working Principle
Through the rotation of the motor drive belt wheel or coupling, drive shaft and cone in the shaft line so that the eccentric shaft do periodic swing motion. After the material enters the crushing chamber from the material mouth, it is crushed by the mutual impact of eccentric shaft and mortar wall, extrusion, grinding and rubbing. The hydraulic insurance system can eliminate the top of the support sleeve and the fixed cone when the machine has iron failure or stuffy car, which greatly reduces the maintenance rate and improves the production efficiency while playing a very good insurance role.
Performance Characteristics Of This Machine
1.With large crushing force, high production efficiency, high output -- the combination of higher speed and stroke, so that the rated power and passing capacity of HP crusher greatly improved, improve the crushing ratio and production efficiency.2.Less consumption of wearing parts, reliable operation, low operation cost -- reasonable structure, advanced crushing principle and technical parameters, reliable operation, low operation cost; All parts of the crusher are wear-resistant, reducing the maintenance cost to the minimum, the general service life can be increased by more than 30%. It is mainly used in large stone factories to solve the disadvantages of small average breaking ratio of counterattack, large energy consumption, fast wear of hammer head, counterattack plate and lining plate.
3.Lamination crushing and excellent particle shape of finished products -- the special crushing chamber designed on the principle of intergranular lamination and its matching speed replace the traditional single particle crushing principle to realize the selective crushing of materials, significantly improve the proportion of fine material and cube content of products, and greatly reduce needle and sheet materials.
4.Hydraulic protection and hydraulic cleaning chamber, high degree of automation, reduce downtime -- hydraulic adjustment discharge port and overload protection make the crusher operation level has been greatly improved, making maintenance more simple, more convenient operation, shorter downtime; HP series cone crusher tow-way iron release of hydraulic cylinder can let iron by crushing cavity, it happened in the iron and instantaneous stuffy car, will have top, hydraulic automatic row material, greatly reduces the original spring cone crusher to stop discharging manually, and many other manufacturers of crusher will shutdown due to a canvas for death.
Technical Parameters
Technical Parameters
| Type | Diameter of cylinder (mm) |
Feeding size (mm) |
Adjustment range of output size (mm) |
Capacity (t/h) |
Rotation speed (r/min) |
Power (kw) |
Overall size (mm) |
Weight (t) |
| PYB600 | 600 | 65 | 12-25 | 15-25 | 356 | 30 | 1740*1225*1940 | 5.5 |
| PYZ600 | 600 | 45 | 5-18 | 8-23 | 356 | 30 | 1740*1225*1940 | 5.5 |
| PYD600 | 600 | 36 | 3-13 | 5-20 | 356 | 30 | 1740*1225*1940 | 5.5 |
| PYB900 | 900 | 115 | 15-50 | 50-90 | 333 | 55 | 2692*1640*2350 | 11.2 |
| PYZ900 | 900 | 60 | 5-20 | 20-65 | 333 | 55 | 2692*1640*2350 | 11.2 |
| PYD900 | 900 | 50 | 3-13 | 15-50 | 333 | 55 | 2692*1640*2350 | 11.3 |
| PYB1200 | 1200 | 145 | 20-50 | 110-168 | 300 | 110 | 2790*1878*2844 | 24.7 |
| PYZ1200 | 1200 | 100 | 8-25 | 42-135 | 300 | 110 | 2790*1878*2844 | 25 |
| PYD1200 | 1200 | 50 | 3-15 | 18-105 | 300 | 110 | 2790*1878*2844 | 25.3 |
| PYB1750 | 1750 | 215 | 25-50 | 280-480 | 245 | 160 | 3910*2894*3809 | 50.3 |
| PYZ1750 | 1750 | 185 | 10-30 | 115-320 | 245 | 160 | 3910*2894*3809 | 50.3 |
| PYD1750 | 1750 | 85 | 5-13 | 75-230 | 245 | 160 | 3910*2894*3809 | 50.2 |
| PYB2200 | 2200 | 300 | 30-60 | 59-1000 | 220 | 260-280 | 4622*3302*4470 | 80 |
| PYZ2200 | 2200 | 230 | 10-30 | 200-580 | 220 | 260-280 | 4622*3302*4470 | 80 |
| PYD2200 | 2200 | 100 | 5-15 | 120-340 | 220 | 260-280 | 4622*3302*4470 | 81.4 |
Applicable Materials
Packaging & Shipping
Packaging&Shipping
Working Sites
Company Information
Henan Ascend Machinery & Equipment Co., Ltd. was established in 2005 and it is located in the high-tech zone of Zhengzhou City, Henan Province. As a technology driven mining equipment company, it is committed to the R&D, production, sales and after-sales service of mining machinery and equipment.
The company's main products are crushers, grinding mill equipment, mineral beneficiation equipment, rotary dryer and crusher & grinding mill spare parts. In addition to the Chinese domestic market, Ascend machinery expands its business in more than 160 countries and regions.
Focused on product quality and after-sales service, Ascend has won widespread praise and trust of international customers. We have a professional engineer team responsible for the pre-sales technical consultation, technical solutions in the process of sales, installation, commissioning and after-sales service to ensure that customers can purchase and use equipment with peace of mind.
You May Also Like
Ball Mill Jaw Crusher Hammer Crusher
2-Roller Crusher Cone Crusher Impact Crusher
FAQ
FAQ
Q1. Are you factory or trading company?
We are factory specialized in manufacturing stone crushers, grinding mills, beneficiation equipments and other mining equipments. Our office and factories are based in Zhengzhou, China. Because we are factory, so we can guarantee the machine quality and we can give you very competitive factory price without extra agent cost.
Q2. To which country your products have been exported before?
In Africa, We have exported to Sudan, Kenya, Zambia, Ethiopia, Zimbabwe, Guinea, Nigeria and so on. We also exported South Africa, Chile, Peru, Ecuador, New Zealand, America, Austrilia more than 160 countries. Our equipment and service have won very high reputation in these countries.
Q3. How will you help the customer install the equipment?
We will send our senior engineer to your place to guide the installation and commissioning.
Q4. How about the wear parts supply?
We offer wear parts to our customer with our most favorable price. If there are problems you could not handle, we will send our technicians to your place.
Q5.What about the payment method?
T/T, Paypal, Western Union, L/C is available
Q6.What about after-sale service?
12 months warranty for all kinds of products; and you will get our 7*24h online service.
