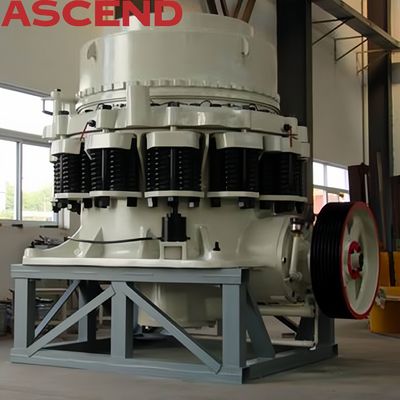

Metal Mine Sand Making Aggregate gravel stone Cone crusher price PYZ600

Place of Origin China
Brand Name ASCEND
Certification CE
Model Number PYZ600
Minimum Order Quantity 1 set
Price Negotiable
Packaging Details Water and rust proof in container
Delivery Time 10 days
Payment Terms L/C, T/T, Western Union, MoneyGram
Supply Ability 10 set per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Type Cone Crusher Condition New
Weight 5.5 T Dimension(l*w*h) Different Models
Warranty 1 Year Capacity(t/h) 8-23 T/h
Motor Type AC Motor Application Mining,Quarry,metallurgy,construction,etc
Power(w) 30 Kw
Leave a Message
Product Description

Product Introduction

HP series multi-cylinder hydraulic cone crusher is the introduction of the latest German technology and the development of the world's advanced level of high-energy cone crusher. The machine adopts the special crushing chamber designed by the principle of intergranular lamination and its matching speed, instead of the traditional single particle crushing principle, to achieve selective crushing of materials, crushing particle size uniformity.Two-way iron release hydraulic cylinder can make iron smooth through the crushing chamber, and in the case of iron and instantaneous stuffy car, can hydraulic jacking, automatic discharge, avoid the operation of spring cone crusher need to shut down maintenance. The crushing chamber adopts high-performance non-contact labyrinth seals, which improves the reliability of preventing dust, reduces iron pollution and equipment wear cycle. Coupled with the unique thin oil lubrication system carried by the fuselage, the service life of equipment is greatly improved.
Metal Mine Sand Making Aggregate gravel stone Cone crusher price PYZ600 0

Gold Ore Coal Rock Crusher Plant  Gyratory Cone Crushers for Sand Industry


Working Principle


Working Principle

When cone crusher is working, motor drives the eccentric sleeve to rotate. The eccentric sleeve drives the transmission shaft and cone part to make swing movement. When they swing to the extent that the surface of the crushing wall is close to the roll mortar wall, the rocks and ores are pressed and crushed.

Metal Mine Sand Making Aggregate gravel stone Cone crusher price PYZ600 2

Performance Characteristics Of This Machine

1.Rare lubrication, reliable and advanced, improve service life -- unique thin oil lubrication system design, greatly improve the service life of the equipment. High-performance non-contact labyrinth seals without wear, improve the reliability of dust blocking, fundamentally eliminate the original spring cone crusher oil water mixing and other common faults.
2.A variety of crushing chamber type, flexible application, strong adaptability --HP cone crusher only need to replace the fixed cone lining plate, moving cone lining plate, crushing chamber shape can be from the standard ultra-coarse cavity type to short head ultra-fine cavity type arbitrary transformation, to adapt to a large range of product particle size requirements.
3.Easy maintenance, easy operation and use -- all parts of HP cone crusher can be disassembled and maintained from the top or side, moving cone and fixed cone disassembled and installed easily, without dismantling the mounting frame, fastening bolts, so it is more convenient to replace the lining plate of HP cone crusher daily. The use of hydraulic motor, so that the crusher production efficiency is the best.
4.It provides higher production capacity, the best product shape, and easy automatic control, with maximum reliability and flexibility, truly create more value for the user.


Gold Ore Coal Rock Crusher Plant  Gyratory Cone Crushers for Sand Industry

Technical Parameters


Technical Parameters


Type Diameter of
Feeding size
Adjustment range of output size
Rotation speed
Overall size
PYB600 600 65 12-25 15-25 356 30 1740*1225*1940 5.5
PYZ600 600 45 5-18 8-23 356 30 1740*1225*1940 5.5
PYD600 600 36 3-13 5-20 356 30 1740*1225*1940 5.5
PYB900 900 115 15-50 50-90 333 55 2692*1640*2350 11.2
PYZ900 900 60 5-20 20-65 333 55 2692*1640*2350 11.2
PYD900 900 50 3-13 15-50 333 55 2692*1640*2350 11.3
PYB1200 1200 145 20-50 110-168 300 110 2790*1878*2844 24.7
PYZ1200 1200 100 8-25 42-135 300 110 2790*1878*2844 25
PYD1200 1200 50 3-15 18-105 300 110 2790*1878*2844 25.3
PYB1750 1750 215 25-50 280-480 245 160 3910*2894*3809 50.3
PYZ1750 1750 185 10-30 115-320 245 160 3910*2894*3809 50.3
PYD1750 1750 85 5-13 75-230 245 160 3910*2894*3809 50.2
PYB2200 2200 300 30-60 59-1000 220 260-280 4622*3302*4470 80
PYZ2200 2200 230 10-30 200-580 220 260-280 4622*3302*4470 80
PYD2200 2200 100 5-15 120-340 220 260-280 4622*3302*4470 81.4



Applicable Materials


Gold Ore Coal Rock Crusher Plant  Gyratory Cone Crushers for Sand Industry

Packaging & Shipping




Gold Ore Coal Rock Crusher Plant  Gyratory Cone Crushers for Sand Industry


Working Sites



Gold Ore Coal Rock Crusher Plant  Gyratory Cone Crushers for Sand IndustryGold Ore Coal Rock Crusher Plant  Gyratory Cone Crushers for Sand Industry

Company Information

Henan Ascend Machinery & Equipment Co., Ltd. was established in 2005 and it is located in the high-tech zone of Zhengzhou City, Henan Province. As a technology driven mining equipment company, it is committed to the R&D, production, sales and after-sales service of mining machinery and equipment.

The company's main products are crushers, grinding mill equipment, mineral beneficiation equipment, rotary dryer and crusher & grinding mill spare parts. In addition to the Chinese domestic market, Ascend machinery expands its business in more than 160 countries and regions.

Focused on product quality and after-sales service, Ascend has won widespread praise and trust of international customers. We have a professional engineer team responsible for the pre-sales technical consultation, technical solutions in the process of sales, installation, commissioning and after-sales service to ensure that customers can purchase and use equipment with peace of mind.

Metal Mine Sand Making Aggregate gravel stone Cone crusher price PYZ600 8Metal Mine Sand Making Aggregate gravel stone Cone crusher price PYZ600 9
