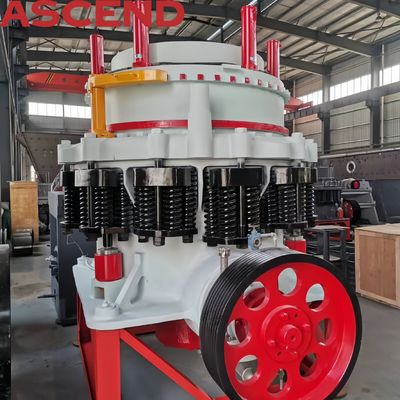

Cone Crusher Machine Manufacture Quarries Equipment Crushing Plant
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | Cone Crusher | Condition | New |
|---|---|---|---|
| Weight | 11.2 T | Dimension(l*w*h) | Different Models |
| Warranty | 1 Year | Capacity(t/h) | 30-90 T/h |
| Motor Type | AC Motor | Application | Mining,Quarry,metallurgy,construction,etc |
| Power(w) | 55 Kw |
Product Description
Product Introduction
High Capacity Spring Cone Crusher For Stone Secondary Crushing is widely used in the fields of mining, chemical industry, building materials, metallurgies and so on. The Cone Crusher can crush materials with Moh’s scale in middle and high hardness such as ironstone, copper ore, limestone, quartz, granite, rock and so on. The standard type (PYB) is applied to secondary crushing; the medium type (PYZ) and the short-head (PYD) are applied to fine crushing.
Working Principle
Working Principle
When the spring cone crusher is working, the motor drives the eccentric bearing bushing via spring coupling, transmission shaft and a couple of cone gear wheel. The crushing cone axis is forced to swing by the eccentric bearing bushing, which makes the mantle sometimes close to the bowl liner, and some times far away from the bowl liner. The raw materials are pressed, impacted and finally crushed in the crushing chamber.
Performance Characteristics Of This Machine
1. High capacity and superior quality;2. Long working life of quick-wear parts, and low investment;
3. Dilute petrol stations for continuous lubrication to reduce downtime and maintenance time.
Technical Parameters
Technical Parameters
| Type | Diameter of cylinder (mm) |
Feeding size (mm) |
Adjustment range of output size (mm) |
Capacity (t/h) |
Rotation speed (r/min) |
Power (kw) |
Overall size (mm) |
Weight (t) |
| PYB600 | 600 | 65 | 12-25 | 15-25 | 356 | 30 | 1740*1225*1940 | 5.5 |
| PYZ600 | 600 | 45 | 5-18 | 8-23 | 356 | 30 | 1740*1225*1940 | 5.5 |
| PYD600 | 600 | 36 | 3-13 | 5-20 | 356 | 30 | 1740*1225*1940 | 5.5 |
| PYB900 | 900 | 115 | 15-50 | 50-90 | 333 | 55 | 2692*1640*2350 | 11.2 |
| PYZ900 | 900 | 60 | 5-20 | 20-65 | 333 | 55 | 2692*1640*2350 | 11.2 |
| PYD900 | 900 | 50 | 3-13 | 15-50 | 333 | 55 | 2692*1640*2350 | 11.3 |
| PYB1200 | 1200 | 145 | 20-50 | 110-168 | 300 | 110 | 2790*1878*2844 | 24.7 |
| PYZ1200 | 1200 | 100 | 8-25 | 42-135 | 300 | 110 | 2790*1878*2844 | 25 |
| PYD1200 | 1200 | 50 | 3-15 | 18-105 | 300 | 110 | 2790*1878*2844 | 25.3 |
| PYB1750 | 1750 | 215 | 25-50 | 280-480 | 245 | 160 | 3910*2894*3809 | 50.3 |
| PYZ1750 | 1750 | 185 | 10-30 | 115-320 | 245 | 160 | 3910*2894*3809 | 50.3 |
| PYD1750 | 1750 | 85 | 5-13 | 75-230 | 245 | 160 | 3910*2894*3809 | 50.2 |
| PYB2200 | 2200 | 300 | 30-60 | 59-1000 | 220 | 260-280 | 4622*3302*4470 | 80 |
| PYZ2200 | 2200 | 230 | 10-30 | 200-580 | 220 | 260-280 | 4622*3302*4470 | 80 |
| PYD2200 | 2200 | 100 | 5-15 | 120-340 | 220 | 260-280 | 4622*3302*4470 | 81.4 |
Applicable Materials
Packaging & Shipping
Packaging&Shipping
Working Sites
Company Information
Henan Ascend Machinery & Equipment Co., Ltd. was established in 2005 and it is located in the high-tech zone of Zhengzhou City, Henan Province. As a technology driven mining equipment company, it is committed to the R&D, production, sales and after-sales service of mining machinery and equipment.
The company's main products are crushers, grinding mill equipment, mineral beneficiation equipment, rotary dryer and crusher & grinding mill spare parts. In addition to the Chinese domestic market, Ascend machinery expands its business in more than 160 countries and regions.
Focused on product quality and after-sales service, Ascend has won widespread praise and trust of international customers. We have a professional engineer team responsible for the pre-sales technical consultation, technical solutions in the process of sales, installation, commissioning and after-sales service to ensure that customers can purchase and use equipment with peace of mind.
You May Also Like
Ball Mill Jaw Crusher Hammer Crusher
2-Roller Crusher Cone Crusher Impact Crusher
FAQ
FAQ
Q1. Are you factory or trading company?
We are factory specialized in manufacturing stone crushers, grinding mills, beneficiation equipments and other mining equipments. Our office and factories are based in Zhengzhou, China. Because we are factory, so we can guarantee the machine quality and we can give you very competitive factory price without extra agent cost.
Q2. To which country your products have been exported before?
In Africa, We have exported to Sudan, Kenya, Zambia, Ethiopia, Zimbabwe, Guinea, Nigeria and so on. We also exported South Africa, Chile, Peru, Ecuador, New Zealand, America, Austrilia more than 160 countries. Our equipment and service have won very high reputation in these countries.
Q3. How will you help the customer install the equipment?
We will send our senior engineer to your place to guide the installation and commissioning.
Q4. How about the wear parts supply?
We offer wear parts to our customer with our most favorable price. If there are problems you could not handle, we will send our technicians to your place.
Q5.What about the payment method?
T/T, Paypal, Western Union, L/C is available
Q6.What about after-sale service?
12 months warranty for all kinds of products; and you will get our 7*24h online service.
