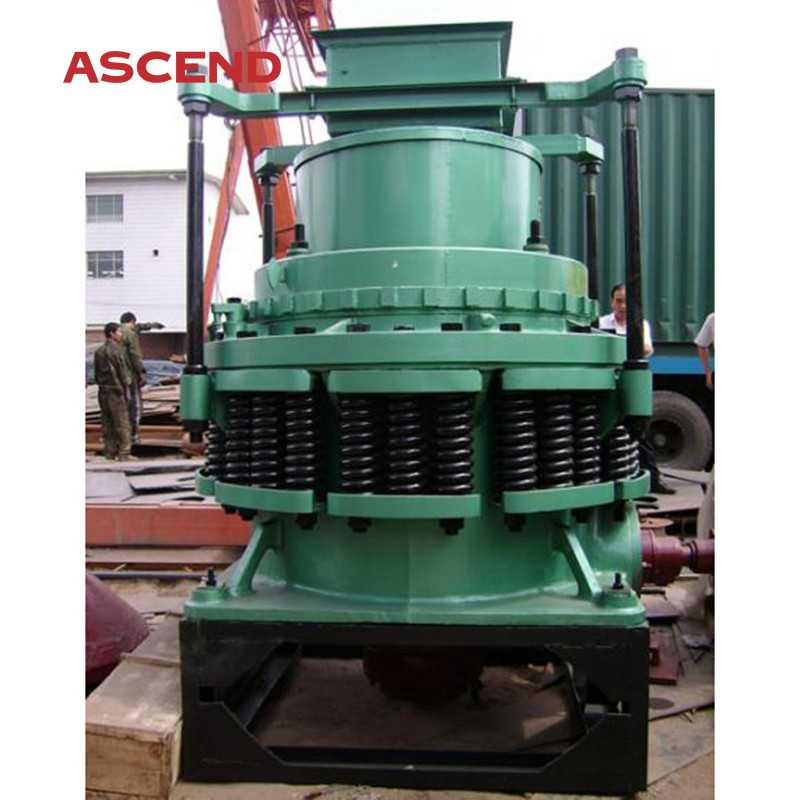

HPC hydraulic cone crushing machine Secondary Crusher Equipment PYB900

Place of Origin China
Brand Name ASCEND
Certification CE
Model Number PYB900 PYZ900 PYD900
Minimum Order Quantity 1 set
Price Negotiable
Packaging Details Water and rust proof in container
Delivery Time 10 days
Payment Terms L/C, T/T, Western Union, MoneyGram
Supply Ability 10 set per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Type Cone Crusher Condition New
Weight 11.2 T Dimension(l*w*h) Different Models
Warranty 1 Year Capacity(t/h) 30-90 T/h
Motor Type AC Motor Application Mining,Quarry,metallurgy,construction,etc
Power(w) 55 Kw
Leave a Message
Product Description

Product Introduction

Cone crushers are popular hard stone crushing machines in aggregates production, mining operations, and recycling applications. It makes use of the best coordination of crushing frequency and eccentricity, which enables the crushed materials much more fine.It is widely used in sand quarry, concrete sand making, dry powder mortar, construction waste, machine-made sand, power plant desulfurization and other industries. It is used to crush various ores and rocks with medium and above hardness (below 350 MPa), such as calcite, limestone, granite, river pebble, dolomite, bluestone, glass, cement clinker, iron ore, etc.
HPC hydraulic cone crushing machine Secondary Crusher Equipment PYB900 0

Gold Ore Coal Rock Crusher Plant  Gyratory Cone Crushers for Sand Industry


Working Principle


Working Principle

It is mainly composed of upper frame body, middle frame body (medium broken type), lower frame body, moving cone part, eccentric sleeve part, transmission part, hydraulic cylinder part and other parts. During operation, the motor drives the horizontal shaft to rotate, the horizontal shaft drives the eccentric sleeve to rotate through the gear, and then the eccentric sleeve drives the moving cone to swing in a circle, so as to realize continuous extrusion and crushing of stones.

HPC hydraulic cone crushing machine Secondary Crusher Equipment PYB900 2

Performance Characteristics Of This Machine

  • The Hydraulic system is used to control the size of the discharge port of the crusher. When there is foreign matter in the crushing chamber, the hydraulic syster can make the moving cone retrea automatically. When the foreign matter is discharged, the system will reset the retreating cone automatically.
  • The labyrinth sealing device is adopted to prevent dust and impurities from entering the machine body, so as to ensure the cleanness of lubricating oil and prolong the service life of siiding bearing and thrust ball bearing.
  • The machine body is of cast steel structure. The heavy-duty parts are provided with stiffeners and insurance settings to reduce the shutdown time.



Gold Ore Coal Rock Crusher Plant  Gyratory Cone Crushers for Sand Industry

Technical Parameters


Technical Parameters


Type Diameter of
Feeding size
Adjustment range of output size
Rotation speed
Overall size
PYB600 600 65 12-25 15-25 356 30 1740*1225*1940 5.5
PYZ600 600 45 5-18 8-23 356 30 1740*1225*1940 5.5
PYD600 600 36 3-13 5-20 356 30 1740*1225*1940 5.5
PYB900 900 115 15-50 50-90 333 55 2692*1640*2350 11.2
PYZ900 900 60 5-20 20-65 333 55 2692*1640*2350 11.2
PYD900 900 50 3-13 15-50 333 55 2692*1640*2350 11.3
PYB1200 1200 145 20-50 110-168 300 110 2790*1878*2844 24.7
PYZ1200 1200 100 8-25 42-135 300 110 2790*1878*2844 25
PYD1200 1200 50 3-15 18-105 300 110 2790*1878*2844 25.3
PYB1750 1750 215 25-50 280-480 245 160 3910*2894*3809 50.3
PYZ1750 1750 185 10-30 115-320 245 160 3910*2894*3809 50.3
PYD1750 1750 85 5-13 75-230 245 160 3910*2894*3809 50.2
PYB2200 2200 300 30-60 59-1000 220 260-280 4622*3302*4470 80
PYZ2200 2200 230 10-30 200-580 220 260-280 4622*3302*4470 80
PYD2200 2200 100 5-15 120-340 220 260-280 4622*3302*4470 81.4



Applicable Materials


Gold Ore Coal Rock Crusher Plant  Gyratory Cone Crushers for Sand Industry

Packaging & Shipping




Gold Ore Coal Rock Crusher Plant  Gyratory Cone Crushers for Sand Industry


Working Sites



Gold Ore Coal Rock Crusher Plant  Gyratory Cone Crushers for Sand IndustryGold Ore Coal Rock Crusher Plant  Gyratory Cone Crushers for Sand Industry

Company Information

Henan Ascend Machinery & Equipment Co., Ltd. was established in 2005 and it is located in the high-tech zone of Zhengzhou City, Henan Province. As a technology driven mining equipment company, it is committed to the R&D, production, sales and after-sales service of mining machinery and equipment.

The company's main products are crushers, grinding mill equipment, mineral beneficiation equipment, rotary dryer and crusher & grinding mill spare parts. In addition to the Chinese domestic market, Ascend machinery expands its business in more than 160 countries and regions.

Focused on product quality and after-sales service, Ascend has won widespread praise and trust of international customers. We have a professional engineer team responsible for the pre-sales technical consultation, technical solutions in the process of sales, installation, commissioning and after-sales service to ensure that customers can purchase and use equipment with peace of mind.
