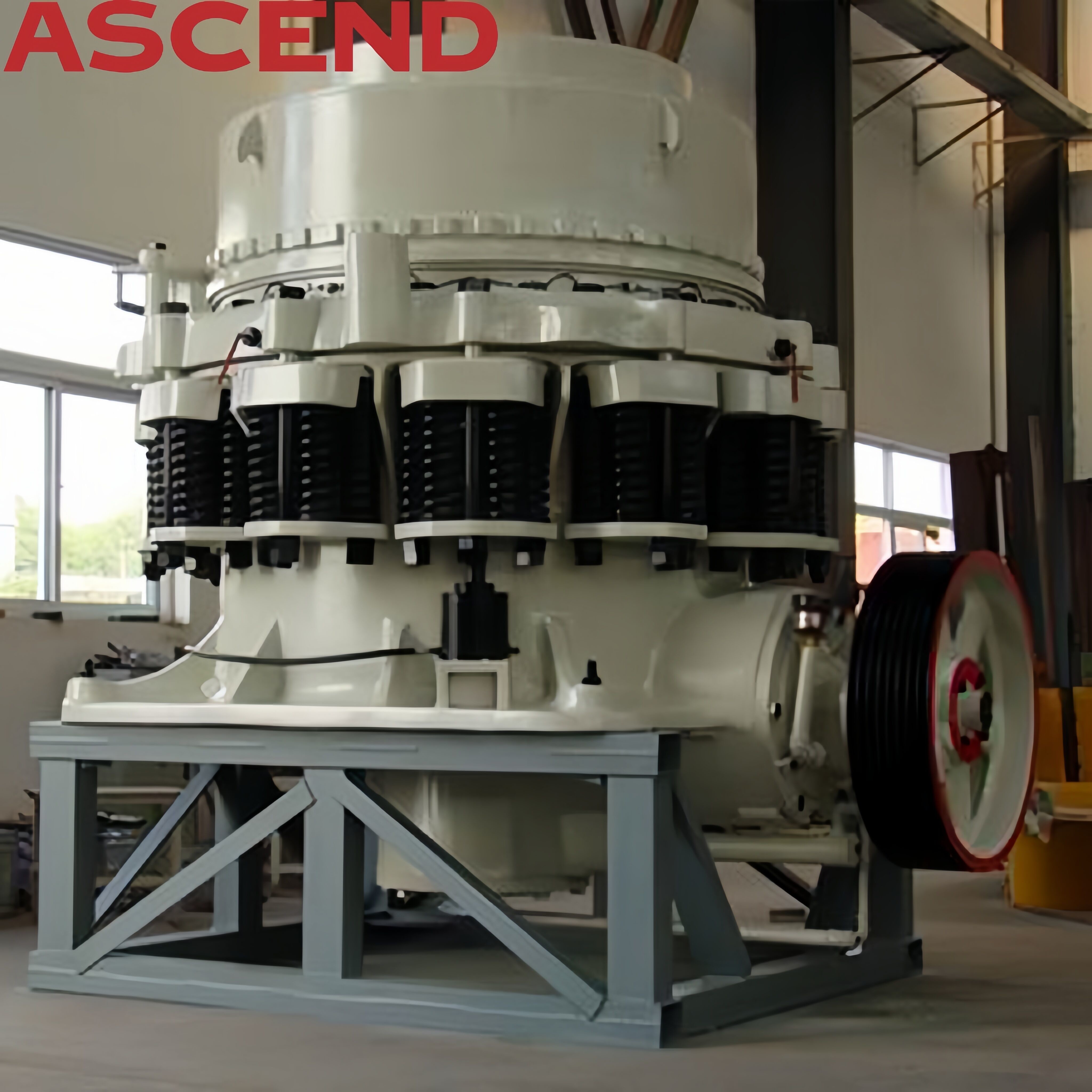

Spring Cone Crusher Mining Process Plant PYZ1200 Metal Mine Sand Making
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | Cone Crusher | Condition | New |
|---|---|---|---|
| Weight | 11.2t | Dimension(l*w*h) | Different Models |
| Warranty | 1 Year | Capacity(t/h) | 30-60 T/h |
| Motor Type | AC Motor | Application | Mining,Quarry,metallurgy,construction,etc |
| Power(w) | According To The Model |
Product Description
Product Introduction
The cone crusher has features of tight structure, efficient product, adopts bowl type shaft with high precision reserve, and focus lubrication systom, easy adjustment and the spring can product the all the equipment. The cone crusher can avoid the moisture mixed with the oil, and the spring can make up for the airproof, when the airproof wear out about 1/4-1/3, must to exchange the airproof in time. Easy and low cost maintenance, it is the best choice of middle and fine crushing process.
Working Principle
Working Principle
Through the rotation of the motor drive belt wheel or coupling, drive shaft and cone in the shaft line so that the eccentric shaft do periodic swing motion. After the material enters the crushing chamber from the material mouth, it is crushed by the mutual impact of eccentric shaft and mortar wall, extrusion, grinding and rubbing. The hydraulic insurance system can eliminate the top of the support sleeve and the fixed cone when the machine has iron failure or stuffy car, which greatly reduces the maintenance rate and improves the production efficiency while playing a very good insurance role.
Performance Characteristics Of This Machine
* Long service life
Reasonable structural design, all parts have wear parts and protectors, reducing maintenance costs.
* Convenient maintenance
All the parts can be disassembled and maintained from the part or the side without dismantling the mounting frame and fastening the bolts, making the daily maintenance of the equipment easier.
* Excellent product quality
The spring cone crusher uses a unique intergranular lamination crushing function to make the broken material more uniform and the shape of the product more tidy. Moreover, the crushing chamber of the equipment is too deep, so that the material can be fully broken in the cavity to achieve high quality granularity.
* Higher processing power
The combination of higher speed and stroke greatly increases the production capacity of the equipment and truly creates more value for the user.
Technical Parameters
Technical Parameters
| Type | Diameter of cylinder (mm) |
Feeding size (mm) |
Adjustment range of output size (mm) |
Capacity (t/h) |
Rotation speed (r/min) |
Power (kw) |
Overall size (mm) |
Weight (t) |
| PYB600 | 600 | 65 | 12-25 | 15-25 | 356 | 30 | 1740*1225*1940 | 5.5 |
| PYZ600 | 600 | 45 | 5-18 | 8-23 | 356 | 30 | 1740*1225*1940 | 5.5 |
| PYD600 | 600 | 36 | 3-13 | 5-20 | 356 | 30 | 1740*1225*1940 | 5.5 |
| PYB900 | 900 | 115 | 15-50 | 50-90 | 333 | 55 | 2692*1640*2350 | 11.2 |
| PYZ900 | 900 | 60 | 5-20 | 20-65 | 333 | 55 | 2692*1640*2350 | 11.2 |
| PYD900 | 900 | 50 | 3-13 | 15-50 | 333 | 55 | 2692*1640*2350 | 11.3 |
| PYB1200 | 1200 | 145 | 20-50 | 110-168 | 300 | 110 | 2790*1878*2844 | 24.7 |
| PYZ1200 | 1200 | 100 | 8-25 | 42-135 | 300 | 110 | 2790*1878*2844 | 25 |
| PYD1200 | 1200 | 50 | 3-15 | 18-105 | 300 | 110 | 2790*1878*2844 | 25.3 |
| PYB1750 | 1750 | 215 | 25-50 | 280-480 | 245 | 160 | 3910*2894*3809 | 50.3 |
| PYZ1750 | 1750 | 185 | 10-30 | 115-320 | 245 | 160 | 3910*2894*3809 | 50.3 |
| PYD1750 | 1750 | 85 | 5-13 | 75-230 | 245 | 160 | 3910*2894*3809 | 50.2 |
| PYB2200 | 2200 | 300 | 30-60 | 59-1000 | 220 | 260-280 | 4622*3302*4470 | 80 |
| PYZ2200 | 2200 | 230 | 10-30 | 200-580 | 220 | 260-280 | 4622*3302*4470 | 80 |
| PYD2200 | 2200 | 100 | 5-15 | 120-340 | 220 | 260-280 | 4622*3302*4470 | 81.4 |
Applicable Materials
Packaging & Shipping
Packaging&Shipping
Working Sites
Company Information
Henan Ascend Machinery & Equipment Co., Ltd. was established in 2005 and it is located in the high-tech zone of Zhengzhou City, Henan Province. As a technology driven mining equipment company, it is committed to the R&D, production, sales and after-sales service of mining machinery and equipment.
The company's main products are crushers, grinding mill equipment, mineral beneficiation equipment, rotary dryer and crusher & grinding mill spare parts. In addition to the Chinese domestic market, Ascend machinery expands its business in more than 160 countries and regions.
Focused on product quality and after-sales service, Ascend has won widespread praise and trust of international customers. We have a professional engineer team responsible for the pre-sales technical consultation, technical solutions in the process of sales, installation, commissioning and after-sales service to ensure that customers can purchase and use equipment with peace of mind.
You May Also Like
Ball Mill Jaw Crusher Hammer Crusher
2-Roller Crusher Cone Crusher Impact Crusher
FAQ
FAQ
Q1. Are you factory or trading company?
We are factory specialized in manufacturing stone crushers, grinding mills, beneficiation equipments and other mining equipments. Our office and factories are based in Zhengzhou, China. Because we are factory, so we can guarantee the machine quality and we can give you very competitive factory price without extra agent cost.
Q2. To which country your products have been exported before?
In Africa, We have exported to Sudan, Kenya, Zambia, Ethiopia, Zimbabwe, Guinea, Nigeria and so on. We also exported South Africa, Chile, Peru, Ecuador, New Zealand, America, Austrilia more than 160 countries. Our equipment and service have won very high reputation in these countries.
Q3. How will you help the customer install the equipment?
We will send our senior engineer to your place to guide the installation and commissioning.
Q4. How about the wear parts supply?
We offer wear parts to our customer with our most favorable price. If there are problems you could not handle, we will send our technicians to your place.
Q5.What about the payment method?
T/T, Paypal, Western Union, L/C is available
Q6.What about after-sale service?
12 months warranty for all kinds of products; and you will get our 7*24h online service.
