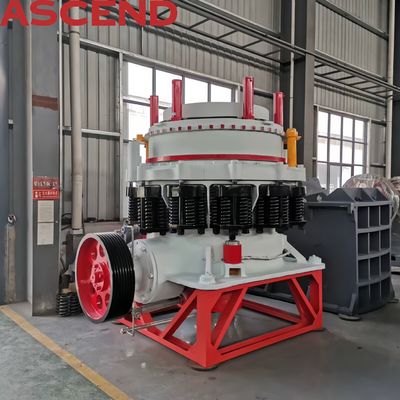

HPC hydraulic cone crushing machine Spring Cone Crusher Mining Process Plant CS Series
| Place of Origin | China |
|---|---|
| Brand Name | ASCEND |
| Certification | CE |
| Model Number | different models |
| Document | Product Brochure PDF |
| Minimum Order Quantity | 1 set |
| Price | Negotiable |
| Packaging Details | water and rust proof in container |
| Delivery Time | 7-10 working days |
| Payment Terms | L/C, T/T, Western Union, MoneyGram |
| Supply Ability | 10 set per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | Cone Crusher | Condition | New |
|---|---|---|---|
| Weight | Based On The Model | Dimension(l*w*h) | Many Size |
| Warranty | 12 Months | Capacity(t/h) | 30-90(t/h) |
| Motor Type | AC Motor | Application | Mining,Quarry,metallurgy,construction,etc |
| Color | Customizable | Power(w) | According To The Model |
Product Description
Product Introduction
The multi-cylinder hydraulic cone crusher developed by Nairy is a new type of cone crusher that combines single-cylinder hydraulic cone crusher and PYF cone crusher with a new design concept and optimized design. Its high speed, high crushing capacity and unique design make the crushed products have a relatively good cubic shape, and the characteristics of easy maintenance can ensure high stability of operation. It is famous all over the world. It is an alternative spring cone crusher in the mine construction industry today. And update the new generation of general hydraulic cone crushers.
Working Principle
Working Principle
When the hydraulic cone crusher is working, the motor rotates through the pulley or coupling, the drive shaft of the cone crusher and the cone part of the cone crusher under the force of the eccentric sleeve to make a swing motion around a fixed point. As a result, the cone crushing wall sometimes approaches and sometimes leaves the wall surface of the abutment wall fixed on the adjusting sleeve, so that the ore is continuously impacted, squeezed and bent in the crushing chamber to realize the crushing of the ore.
Performance Characteristics Of This Machine
1. Uniform particle size and low failure rate The principle of laminated crushing is adopted, and the crushed products are mostly cubic structures, which reduces the need for flake materials; due to the optimized design of the multi-cylinder hydraulic cone crusher, the failure rate of the equipment is reduced, and the work efficiency is greatly improved. It is currently used in China. One of the wide range of equipment.
2. Good lubrication and reliable operation The hydraulic cone crusher adopts a labyrinth seal device, which replaces the water seal used in the past, so that dust and impurities cannot enter the body, thereby ensuring the cleanness of the lubricating oil, prolonging the service life of sliding bearings and thrust ball bearings, making the machine Reliable operation.
3. Reasonable structure and advanced components The structure is reasonable, the crushing principle and technical parameters are advanced, the operation is reliable, and the operation cost is low; all parts have wear protection, which reduces the maintenance cost and increases the service life by more than 30%. 4.
Strong adaptability Crushing various coarse, medium and fine materials whose feed particle size is not more than 500mm and compressive strength not more than 350MPa has the characteristics of high efficiency, economy and strong adaptability.
Technical Parameters
Technical Parameters
| Type | Diameter of cylinder (mm) |
Feeding size (mm) |
Adjustment range of output size (mm) |
Capacity (t/h) |
Rotation speed (r/min) |
Power (kw) |
Overall size (mm) |
Weight (t) |
| PYB600 | 600 | 65 | 12-25 | 15-25 | 356 | 30 | 1740*1225*1940 | 5.5 |
| PYZ600 | 600 | 45 | 5-18 | 8-23 | 356 | 30 | 1740*1225*1940 | 5.5 |
| PYD600 | 600 | 36 | 3-13 | 5-20 | 356 | 30 | 1740*1225*1940 | 5.5 |
| PYB900 | 900 | 115 | 15-50 | 50-90 | 333 | 55 | 2692*1640*2350 | 11.2 |
| PYZ900 | 900 | 60 | 5-20 | 20-65 | 333 | 55 | 2692*1640*2350 | 11.2 |
| PYD900 | 900 | 50 | 3-13 | 15-50 | 333 | 55 | 2692*1640*2350 | 11.3 |
| PYB1200 | 1200 | 145 | 20-50 | 110-168 | 300 | 110 | 2790*1878*2844 | 24.7 |
| PYZ1200 | 1200 | 100 | 8-25 | 42-135 | 300 | 110 | 2790*1878*2844 | 25 |
| PYD1200 | 1200 | 50 | 3-15 | 18-105 | 300 | 110 | 2790*1878*2844 | 25.3 |
| PYB1750 | 1750 | 215 | 25-50 | 280-480 | 245 | 160 | 3910*2894*3809 | 50.3 |
| PYZ1750 | 1750 | 185 | 10-30 | 115-320 | 245 | 160 | 3910*2894*3809 | 50.3 |
| PYD1750 | 1750 | 85 | 5-13 | 75-230 | 245 | 160 | 3910*2894*3809 | 50.2 |
| PYB2200 | 2200 | 300 | 30-60 | 59-1000 | 220 | 260-280 | 4622*3302*4470 | 80 |
| PYZ2200 | 2200 | 230 | 10-30 | 200-580 | 220 | 260-280 | 4622*3302*4470 | 80 |
| PYD2200 | 2200 | 100 | 5-15 | 120-340 | 220 | 260-280 | 4622*3302*4470 | 81.4 |
Applicable Materials
Packaging & Shipping
Packaging&Shipping
Working Sites
Company Information
Henan Ascend Machinery & Equipment Co., Ltd. was established in 2005 and it is located in the high-tech zone of Zhengzhou City, Henan Province. As a technology driven mining equipment company, it is committed to the R&D, production, sales and after-sales service of mining machinery and equipment.
The company's main products are crushers, grinding mill equipment, mineral beneficiation equipment, rotary dryer and crusher & grinding mill spare parts. In addition to the Chinese domestic market, Ascend machinery expands its business in more than 160 countries and regions.
Focused on product quality and after-sales service, Ascend has won widespread praise and trust of international customers. We have a professional engineer team responsible for the pre-sales technical consultation, technical solutions in the process of sales, installation, commissioning and after-sales service to ensure that customers can purchase and use equipment with peace of mind.
You May Also Like
Ball Mill Jaw Crusher Hammer Crusher
2-Roller Crusher Cone Crusher Impact Crusher
FAQ
FAQ
Q1. Are you factory or trading company?
We are factory specialized in manufacturing stone crushers, grinding mills, beneficiation equipments and other mining equipments. Our office and factories are based in Zhengzhou, China. Because we are factory, so we can guarantee the machine quality and we can give you very competitive factory price without extra agent cost.
Q2. To which country your products have been exported before?
In Africa, We have exported to Sudan, Kenya, Zambia, Ethiopia, Zimbabwe, Guinea, Nigeria and so on. We also exported South Africa, Chile, Peru, Ecuador, New Zealand, America, Austrilia more than 160 countries. Our equipment and service have won very high reputation in these countries.
Q3. How will you help the customer install the equipment?
We will send our senior engineer to your place to guide the installation and commissioning.
Q4. How about the wear parts supply?
We offer wear parts to our customer with our most favorable price. If there are problems you could not handle, we will send our technicians to your place.
Q5.What about the payment method?
T/T, Paypal, Western Union, L/C is available
Q6.What about after-sale service?
12 months warranty for all kinds of products; and you will get our 7*24h online service.
