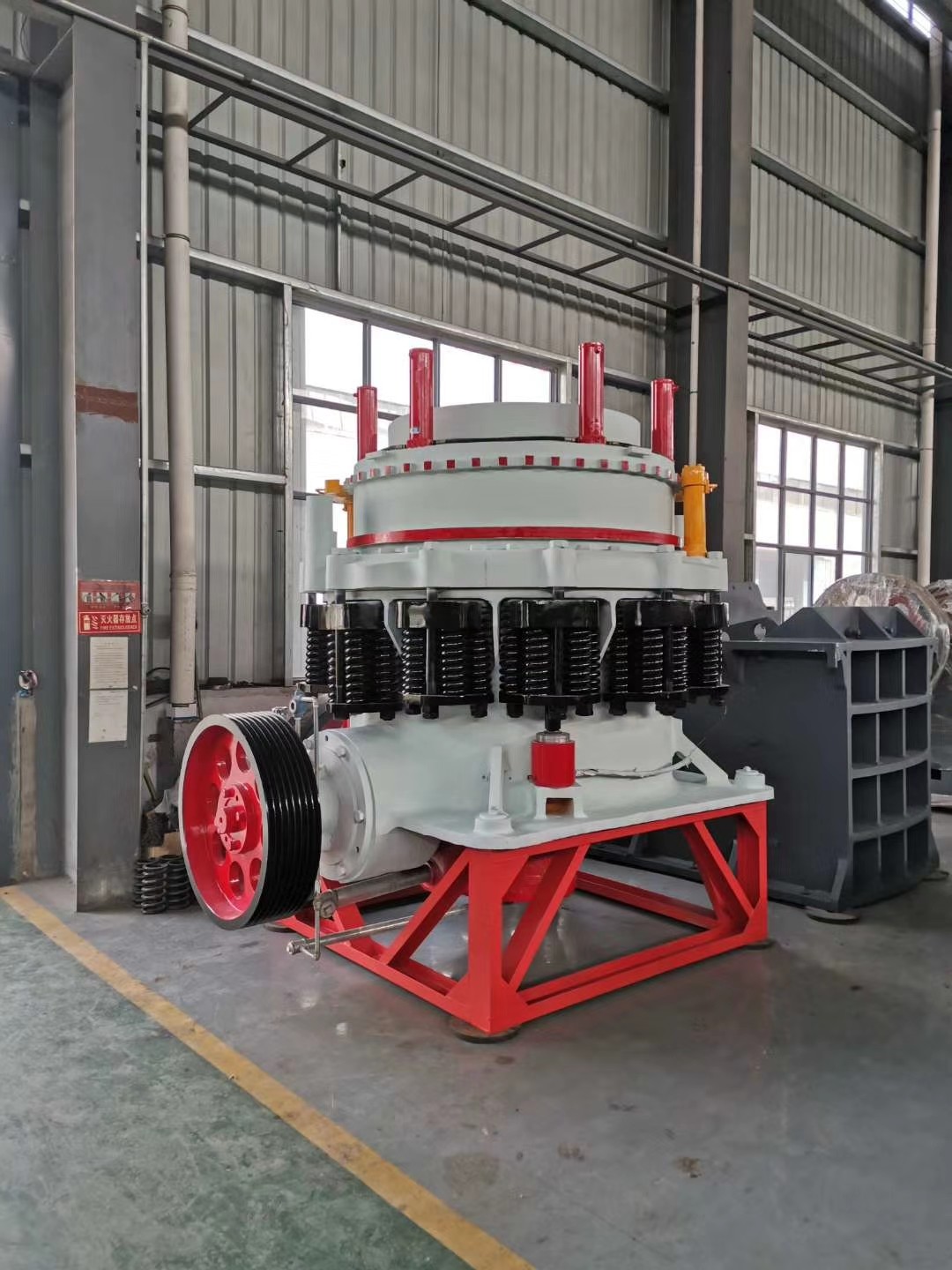

Quarry Gravel And Aggregates Spring Hydraulic Symons Cone Crusher

Place of Origin China
Brand Name Ascend
Certification CE
Model Number PYB900 PYB1200 PYB1400
Minimum Order Quantity 1 set
Price Negotiable
Packaging Details water and rust proof in container
Delivery Time 7-10 working days
Payment Terms T/T, Western Union
Supply Ability 10 set per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Application Mining,construction,Quarry,ore Name Spring Symons Cone Crusher
Warranty One Year,one Year Excluding Wearing Parts After-sales Service Provided Engineers Available To Service Machinery Overseas
Dimension(l*w*h) 2726X1950X2182 Applied Stone Iron Ore, Granite, Basalt
Capacity(t/h) 30-90(t/h) Weight 10.3t
Type Roller Crusher,Cone Crusher
High Light

granite Symons Cone Crusher


Aggregates Spring rock cone crusher


Hydraulic Symons Cone Crusher

Leave a Message
Product Description

Granite river stone hard rock cone crusher crushing plant

Symons cone crusher is also known as compound cone crusher.

It is developed and improved by introducing and absorbing the foreign technology to meet customer’s needs, and also a modern high-performance cone crusher with high swing frequency, optimized cavity and reasonable stroke on the principle of laminating crushing and more-breaking and less-grinding concept design.

Quarry Gravel And Aggregates Spring Hydraulic Symons Cone Crusher 0

Working principle

When Symons cone crusher works, the motor drives the eccentric sleeve rotating through the V-belt, the large pulley, the transmission shaft, the bevel gear, and the large bevel gear.

The conical shaft core rotates and moves by the driving of the eccentric sleeve, causing the surface of the broken wall to be close or leave the surface of the rolling wall, therefore, the material is continuously crushed by the crushing and bending in the annular crushing cavity composed of the fixed cone and the moving cone.

After multiple extrusion impacts and bending, the material is crushed to the required particle size and discharged through the lower portion.

Quarry Gravel And Aggregates Spring Hydraulic Symons Cone Crusher 1

Features and advantages of Symons cone crusher

  • Each type of Symons cone crusher has a various crushing cavity, so the user can choose crushers with different crushing cavity for better meeting their different needs.
  • Symons cone crusher has advantages of large crushing ratio, high efficiency, high capacity, low operation cost, easy to adjust, economic and other characteristics.
  • Due to the better materials selection and structure design, it has a longer service life, and crushed product has more uniform size.
  • Seal grease can avoid the shortcomings and defects of easy plugging of water supply and drainage system.
  • Spring insurance system is overload protection device, which can protect the crusher when there is foreign substance in crushing cavity.
  • Quarry Gravel And Aggregates Spring Hydraulic Symons Cone Crusher 2Quarry Gravel And Aggregates Spring Hydraulic Symons Cone Crusher 3Quarry Gravel And Aggregates Spring Hydraulic Symons Cone Crusher 4
  • The maintenance and application tips

  • Lubrication oil station should be turned on and make sure that the system has been already lubricated and then turn on main engine. After crusher idling normally, switch on feeding machine.
  • The crusher should stop feeding before stopping, and the mine should be all crushed and discharged, and then the circular vibrating and screening locomotive can be stopped, and finally closing the oil pump of the lubrication oil station.
  • Before turning on pump of lubrication oil station, open the oil and water valve and turn on pressure gauge lubrication oil station.
  • Adjust the pressure regulator so that the oil supply pressure is within the range of 0.08 to 0.2 MPa, and the oil temperature should be within the range of 30℃to 45℃. If the oil temperature is too low, turn the resistance heater to heat the oil.
  • For the function of each electrical switch, please refer to the circuit description, and all the switches should be kept in the appropriate place.

Cone crusher Spare parts

Quarry Gravel And Aggregates Spring Hydraulic Symons Cone Crusher 5

Product specifications

Type Diameter of
Feeding size
Adjustment range of output size
Rotation speed
Overall size
PYB600 600 65 12-25 15-25 356 30 1740*1225*1940 5.5
PYZ600 600 45 5-18 8-23 356 30 1740*1225*1940 5.5
PYD600 600 36 3-13 5-20 356 30 1740*1225*1940 5.5
PYB900 900 115 15-50 50-90 333 55 2692*1640*2350 11.2
PYZ900 900 60 5-20 20-65 333 55 2692*1640*2350 11.2
PYD900 900 50 3-13 15-50 333 55 2692*1640*2350 11.3
PYB1200 1200 145 20-50 110-168 300 110 2790*1878*2844 24.7
PYZ1200 1200 100 8-25 42-135 300 110 2790*1878*2844 25
PYD1200 1200 50 3-15 18-105 300 110 2790*1878*2844 25.3
PYB1750 1750 215 25-50 280-480 245 160 3910*2894*3809 50.3
PYZ1750 1750 185 10-30 115-320 245 160 3910*2894*3809 50.3
PYD1750 1750 85 5-13 75-230 245 160 3910*2894*3809 50.2
PYB2200 2200 300 30-60 59-1000 220 260-280 4622*3302*4470 80
PYZ2200 2200 230 10-30 200-580 220 260-280 4622*3302*4470 80
PYD2200 2200 100 5-15 120-340 220 260-280 4622*3302*4470 81.4


Customer working site

Quarry Gravel And Aggregates Spring Hydraulic Symons Cone Crusher 6
