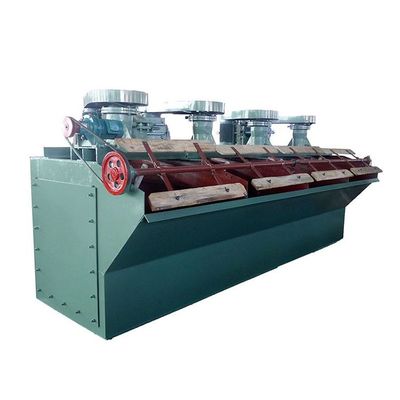

Mechanical Flotation Cell Copper Auxiliary Mining Machinery

Place of Origin China
Brand Name Ascend
Certification CE/ISSO9001
Model Number SF0.37 SF0.7 SF1.0
Document Product Brochure PDF
Minimum Order Quantity 1 set
Price USD 2000-12000 Per set
Packaging Details Water and rust proof in wooden box or cotainer
Delivery Time 7-10 working days
Payment Terms Western Union, T/T
Supply Ability 10 set per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
After-sales Service Provided Engineers Available To Service Machinery Overseas Certification CE,ISO9001
Application Copper Flotation Cell Plant Ball Mill Type Overflow Ball Mill
Capacity 100 Ton Per Day Voltage 380V
Power 88KW Ore Type Sulphide Ore
Highlight

Copper mechanical flotation cell

,

Flotation Cell auxiliary mining machinery

,

sulphide ore Mechanical Flotation Cell

Leave a Message
Product Description
100 ton per day copper ore crushing, grinding and flotation plant
Copper ore flotation method is the most commonly used beneficiation methond to get the copper ore concentrate, our company has rich experience in offering copper ore equipement and help the customer set up the copper ore beneficiation plant.

Now we take 100 ton per day copper ore beneficiation plant as example to show how to get the copper concentrate.



Customer Requirements:

Raw material: Sulfer Copper ore
Input Material size: 350mm
Final Products Requirement: 23% copper ore concentrate.
Production Process: The raw ore is fed into the coarse crusher by the vibration feeding machine, and then enters the fine crusher. After the fine crushing, the product enters the sieve and sieves, and the sieved material is returned to the fine crusher and then broken. The undersize material is a qualified product that enters the powder ore bin. The powder mine is set up under the mining machine, and the powder mine is fed into the ball mill through the belt conveyor. The ball mill discharges into the spiral classifier, and the spiral classifier returns the sand into the ball mill. The spiral classifier overflows into a rough selection, three selections, and a flotation operation. The flotation concentrate enters the sedimentation tank. The flotation tailings are thrown to the tailings pond.


The main line of this production line is:
1 set of PE500×750 jaw crusher;
2 sets of PEX250×1200 jaw crusher;
1 set of φ1500x3000 ball mill;
1 set of FLG-1200 Spiral classifer
8 set of SF0.7 Flotation cell machine
Auxiliary equipment: Vibrating feeder, belt conveyors form a production line.

PE Jaw crusher

Mechanical Flotation Cell Copper Auxiliary Mining Machinery 0

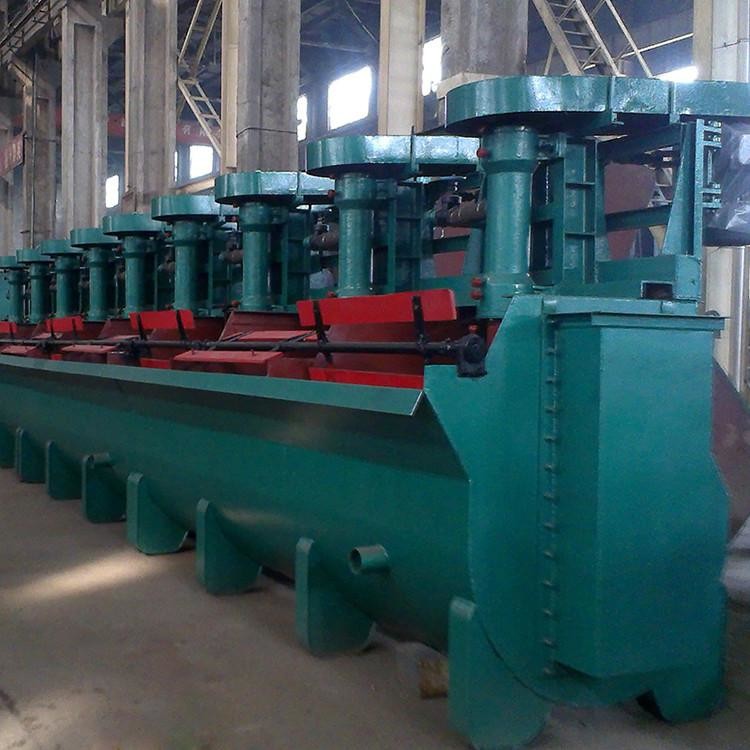

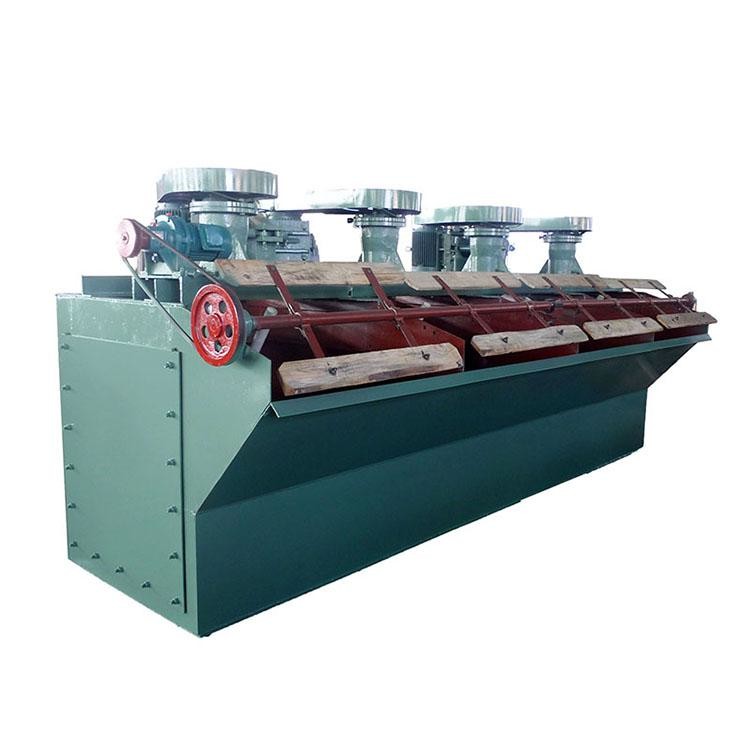

Flotation machine

Mechanical Flotation Cell Copper Auxiliary Mining Machinery 1

The detailed flow chart is as follows:
Mechanical Flotation Cell Copper Auxiliary Mining Machinery 2

Mechanical Flotation Cell Copper Auxiliary Mining Machinery 3

Mechanical Flotation Cell Copper Auxiliary Mining Machinery 4

Flotation machine Specifications

Model volume
(m3)
processing power
(m3/min)
impeller diameter
(mm)
impeller speed
(r/min)
main motor power
(kW)
Scraper motor power (kW) tank weight
(T/slot)
SF0.37 0.37 0.2-0.4 300 442 1.5 1.1 0.45
SF0.7 0.7 0.3-1 350 400 3 1.1 0.9
SF1.2 1.2 0.6-1.2 450 312 5.5 1.1 1.4
SF2.8 2.8 1.5-3.5 550 268 11 1.1 2.2
SF4 4 2-4 650 235 15 1.5 2.6
SF8 8 4-8 760 191 30 1.5 4.3
SF16 16 5-16 850 190 45 1.5 7.4
SF20 20 5-20 730 186 30*2 1.5 9.8
