Electric Small Gold Melting oven Furnace Auxiliary Mining Machinery

Place of Origin China
Brand Name Ascend
Certification CE/ISSO9001
Model Number GP-15 GP-25 ZP-15 ZP-25
Minimum Order Quantity 1 set
Price 1500 to 1800 USD
Packaging Details wooden box in container
Delivery Time 7-10 working days
Payment Terms T/T, Western Union
Supply Ability 100 set per month
Product Details
Voltage 380v Use Gold Smelting
Warranty 12 Months Application Gold Ore Melting
Product Name Electric Gold Melting Furnace Delivery Time 7 To 10 Days
Type Induction Furnace
High Light

1kg Electric Smelting Furnace


palladium gold ore smelting furnace

Leave a Message
Product Description

Electric gold and silver casting melting furnace with capacity 1kg,smelting machine


Small gold melting furnace
Gold melting furnace is suitable for melting: platinum, palladium gold, gold, silver, copper, steel, gold powder, sand, silver powder, silver mud, tin slag, stainless steel, aluminum and other high melting point metals for melting.

2. Single melting metal amount 1-2KG, single melting time 1-3 minutes.

3. The highest furnace temperature can reach 1500-2000 degrees.

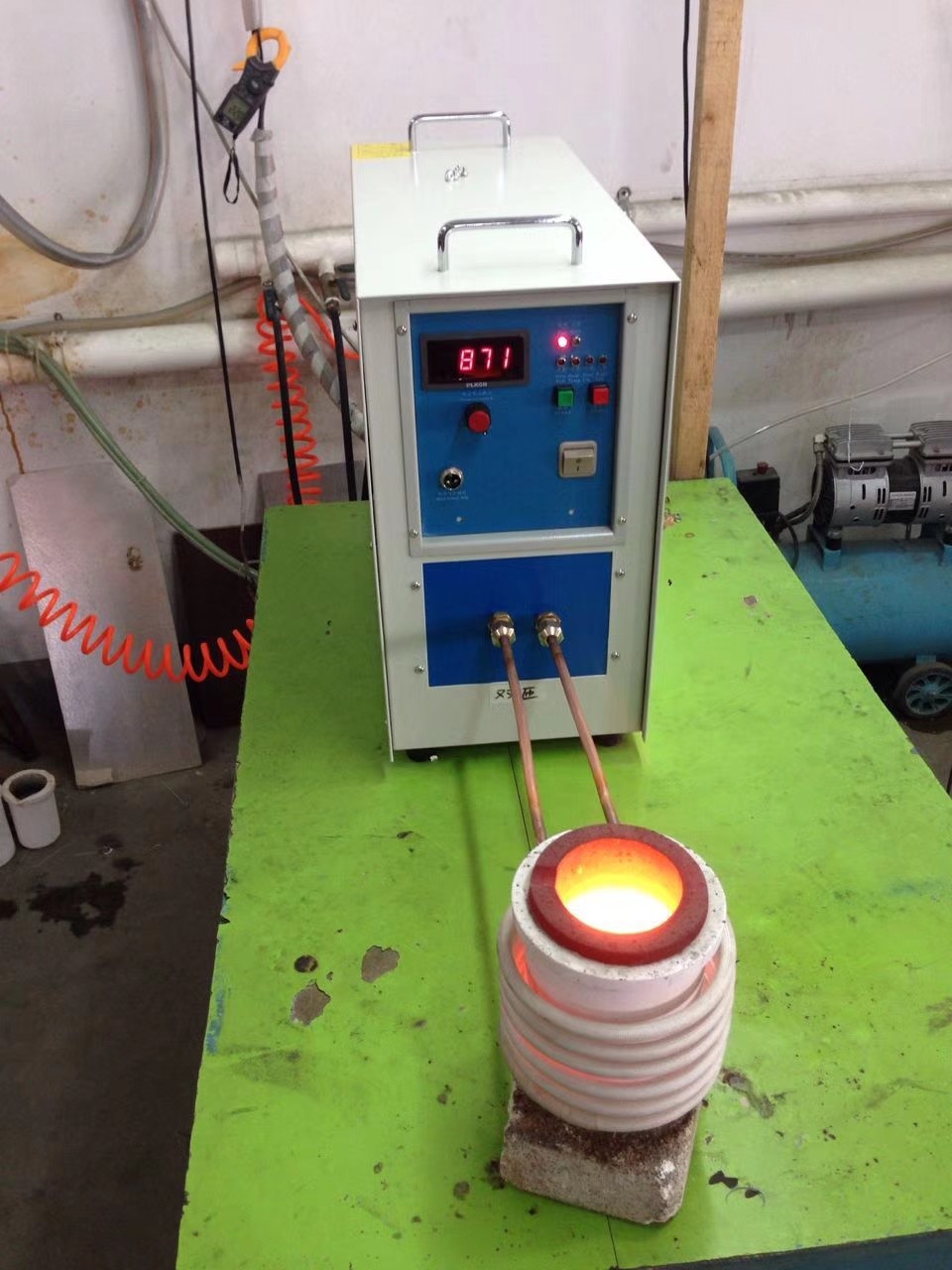

Electric Small Gold Melting oven Furnace Auxiliary Mining Machinery 0

Working principle

High-frequency and high-current flows into a heating coil(usually made of copper tube)that is wound into a ring or other shape,thereby generating a strong magnetic flux with a momentary change in the coil,and placing a heated object such as metal in the coil.The magnetic flux will penetrate the entire heated object.In the direction of the opposite direction of the heating current inside the heated object,a large eddy current will be generated.Due to the resistance of the heated object,a lot of heat will be generated.The temperature of the object itself rises rapidly,reaching the purpose of heating or smelting. To protect the machine body from being overheated, a water pump is needed to ensure the water recycling to cool the machine and prolong its working life.

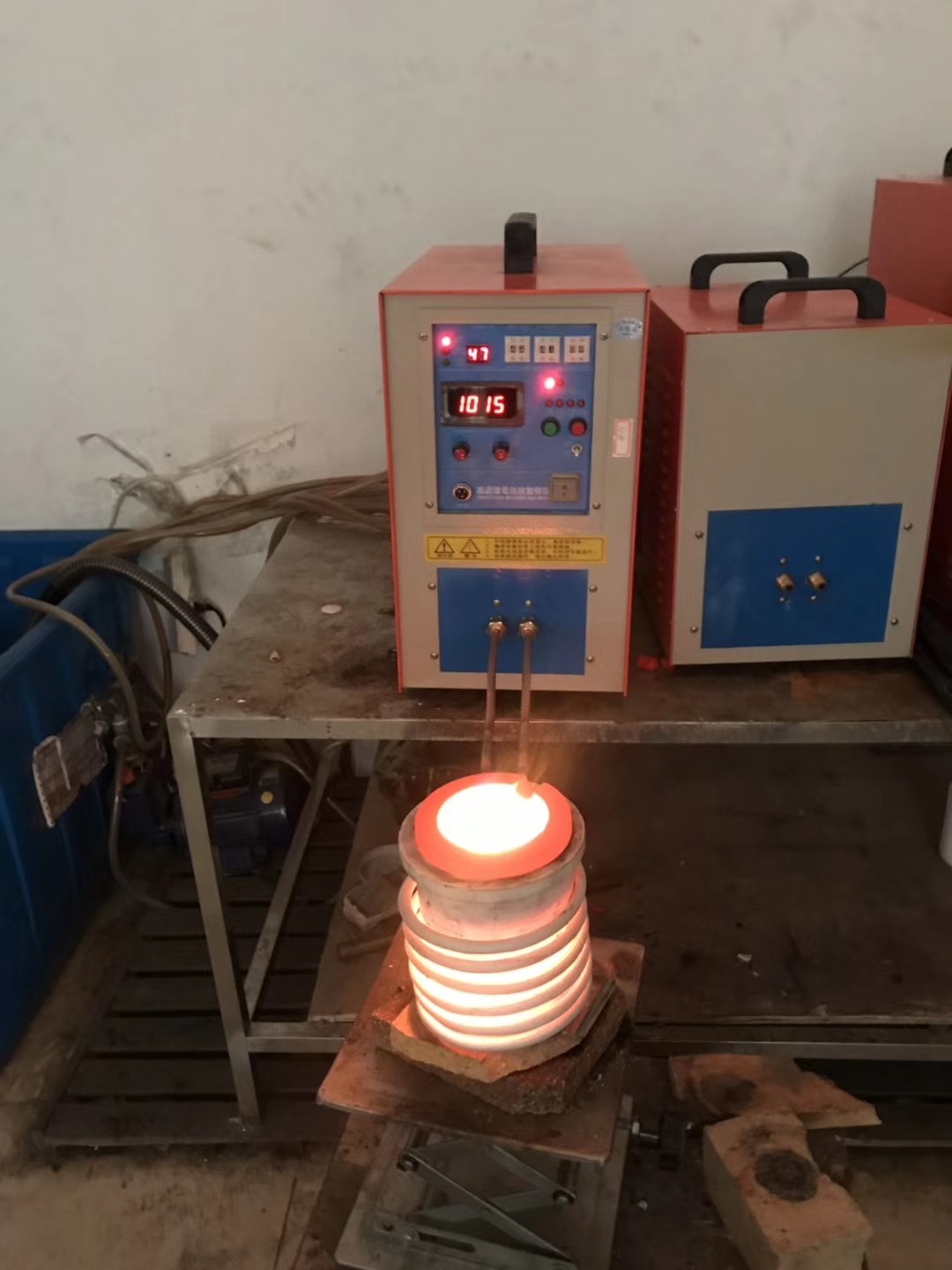

Electric Small Gold Melting oven Furnace Auxiliary Mining Machinery 1

Product advantages

1. Compact small size, covering less than one square meter;
2. Installation, operation is very simple, user can learn immediately;
3. Fast heating speed, reduce surface oxidation;
4. Environmental protection, less pollution, minimum loss of melting,

5. Full protection: equipped with alarm devices such as over-pressure, over-current, heat input, water shortage, etc., and automatic control and protection.

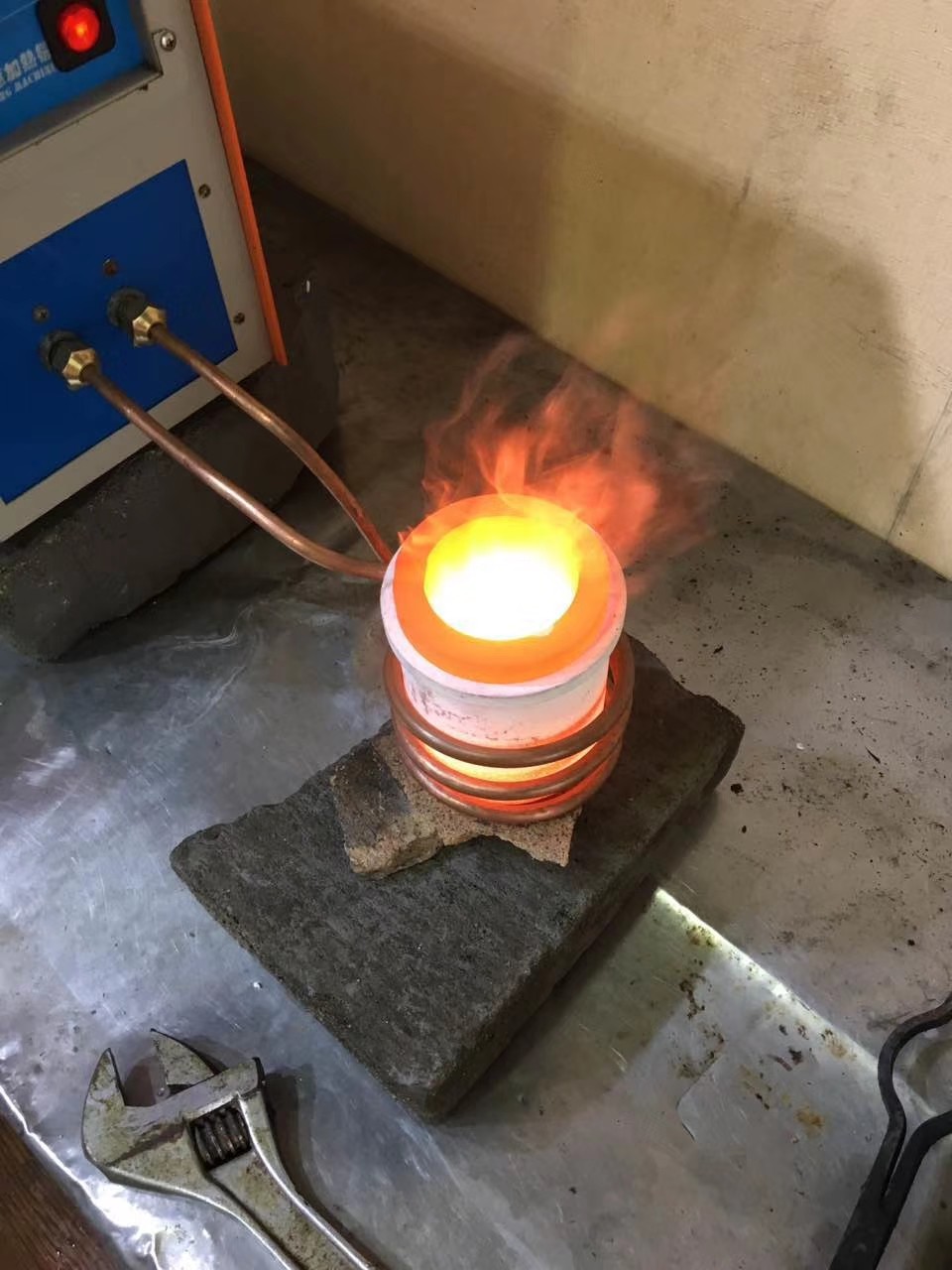

Electric Small Gold Melting oven Furnace Auxiliary Mining Machinery 2

Electric Small Gold Melting oven Furnace Auxiliary Mining Machinery 3


Model Power Melting capacity for different materials
Iron, steel Gold, silver, copper Alluminium
GP-15 5KW 0.5KG 2 KG 0.5 KG
GP-25 8KW 1 KG 4 KG 1 KG
ZP-15 15KW 3KG 10KG 3KG
ZP-25 25KW 5KG 20KG 5KG
ZP-35 35KW 10KG 30KG 10KG
ZP-45 45KW 18KG 50KG 18KG
ZP-70 70KW 25KG 100KG 25KG
ZP-90 90KW 40KG 120KG 40KG
ZP-110 110KW 50KG 150KG 50KG
ZP-160 160KW 100KG 250KG 100KG

Spare parts crucibles

Electric Small Gold Melting oven Furnace Auxiliary Mining Machinery 4Electric Small Gold Melting oven Furnace Auxiliary Mining Machinery 5
