SBM Zenith Brand Impact Crusher Spare Parts Hammer Blow Bar For Quarry Stone Crushing

Place of Origin China
Brand Name Ascend
Certification CE
Model Number PF1010 PF1214 PF1315 PF1318
Minimum Order Quantity 1 set
Price USD 800-18000 Per set
Packaging Details water and rustproof in container
Delivery Time 10 working days
Payment Terms T/T, L/C, Western Union
Supply Ability 10 set per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Impact Crusher Application Stone Crushing, Aggregates Making
Motor Type AC Motor Warranty One Year
Another Name Stone Crushing Machine Color White Or Blue
High Light

Blow Bar Double Roll Crusher

,

Blow Bar impact stone crusher

,

aggregates Double Roll Crusher

Leave a Message
Product Description

High eficiency impact crusher and double roll crusher

The impact crusher is widely used in the first and secondary crushing process to procss a variety of rocks and mineral ores. It is featured with high crushing ratio,large output,low costs and other advantages.It can also be called impact breaker or impact crushing machine The final products of impact crusher are of good cubic shapes which is widely used for the artificial aggregate production and ore crushing in railway, highway and construction industry. our impact crusher is an optimized crushing machine after adopting advanced techniques at home and abroad

SBM Zenith Brand Impact Crusher Spare Parts Hammer Blow Bar For Quarry Stone Crushing 0

Working principle

When the materials enter the blow bar area, they are crushed due to the high-speed impact of the blow bar and are thrown to the impact plates on the rotor for secondary crush. Then the materials will be shot back to the blow bar again for the third crush. This process repeats until the materials are crushed to the required size and discharged from the lower part of the machine. The size and shape of the finished powder can be changed by adjusting the gap between the impact rack and rotor support.

SBM Zenith Brand Impact Crusher Spare Parts Hammer Blow Bar For Quarry Stone Crushing 1

Product advantages

1. High productivity, high reliability and stable performance with small noise.

2. Energy-saving and low equipment operation cost.

3. Professional technical supports and design, sales service and after-sales service.

4. Simple structure and easy maintenance.
5. Competitive price.

SBM Zenith Brand Impact Crusher Spare Parts Hammer Blow Bar For Quarry Stone Crushing 2

SBM Zenith Brand Impact Crusher Spare Parts Hammer Blow Bar For Quarry Stone Crushing 3

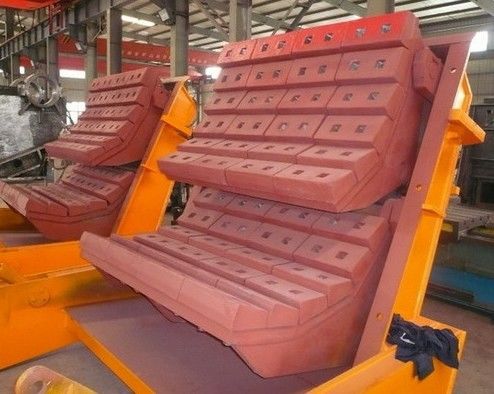

Spare parts

The main spare parts of the impact crusher are impact blow bar, made of high chrome casting alloy, Cr26NiMo. and impact plate and side plate, made of high manganese alloy, Mn13Cr2.

SBM Zenith Brand Impact Crusher Spare Parts Hammer Blow Bar For Quarry Stone Crushing 4

Product advantages

1, Multiple chamber can make it evenly and suitable for crushing hard rock.;
2, Large low feed port makes it easy to layout production line and increase the feed size;
3, New wear-resistant material of the plate hammer, impact plate and liner can last longer life;
4, High chrome hammer and unique counterattack lining board are particularly suitable for crushing hard rock and energy efficient;
5,The entire plate hammer structure makes the materials particle size more smaller and cube-shaped;
6,It uses fully hydraulic system, so it is easy and more convenient for maintenance and replacement of worn parts.

Specifications

Model
Rotor Spec (mm)
Feed opening size (mm)
Max Feed edge(mm)
Capacity (t/h)
Motor Power(kw)
Weight(t)
Overall Dimension
(L*W*H)mm
PF-1007
1000*700
400*730
300
30-50
37-55
9.5
2400×1558×2660
PF-1010
1000*1050
400*1080
350
50-80
55-75
12.2
2400×2250×2620
PF-1210
1250*1050
400*1080
350
70-120
110-132
14.9
2690×2338×2890
PF-1214
1250*1400
400*1430
350
110-180
132-160
18.6
2690×2688×2890
PF-1315
1320*1500
860*1520
500
160-250
180-260
19.3
3096×3273×2667
PF-1320
1320*2000
860*2030
500
160-350
300-375
28
3096×3560×3185
PF-1520
1500*2000
1315*2040
700
300-500
400-450
42.8
3890×3560×3220
PE-900*1060
900*1060
780
200-290
200-380
90-110
31
2690x2556x2800
PE-900*1200
900*1200
780
95-225
220-450
110-132
49
3335x3182x3025
PE-1000*1200
1000*1200
850
195-280
280-550
110-132
51
3435x3182x3025
PE-1200*1500
1200*1500
1020
150-300
400-800
160-220
100.9
4200x3732x3843
PE-1500*1800
1500*1800
1200
210-360
525-1120
280-335
132
5100x4700x4300
PEX-150*750
150*750
120
18-48
8-25
15
3.5
1380x1658x1025
PEX-250*750
250*750
210
25-60
13-35
30
4.96
1545x1667x1330
PEX-250*1000
250*1000
210
25-60
16-52
30-37
6.5
1530x1992x1380
PEX-250*1200
250*1200
210
25-60
20-61
37-45
8.52
1900x2192x1430
PEX-300*1300
300*1300
250
20-90
25-95
55-75
12.6
1750x2320x1724
PEX-350*1200
350*1200
300
70-140
25-120
75
12.35
2162x2220x1723

Customer site

SBM Zenith Brand Impact Crusher Spare Parts Hammer Blow Bar For Quarry Stone Crushing 5
SBM Zenith Brand Impact Crusher Spare Parts Hammer Blow Bar For Quarry Stone Crushing 6
