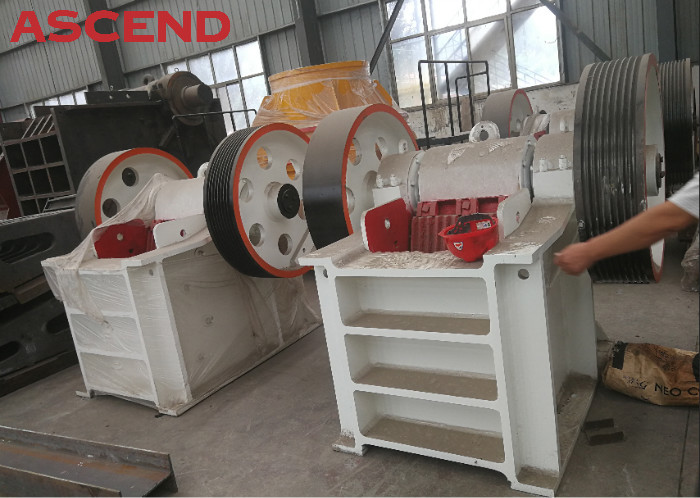

PE250x1000 PE250x1200 Jaw Stone Crusher Machine

Place of Origin China
Brand Name Ascend
Certification ISO9001
Model Number PE200x300 PE220x350 PE250x400 PE400x600
Minimum Order Quantity 1 set
Price USD 1800-4800
Packaging Details Wooden box or put in container
Delivery Time 7-10 working days
Payment Terms T/T, Western Union, MoneyGram, L/C
Supply Ability 50 Sets per month
Product Details
Name Jaw Crusher Color Optional
Material High Manganese Mn13Cr2 Function Stone Crushing
Type Jaw Crusher,fixed Or Portable Condition New
Warranty 1 Year After-sales Service Provided Engineers Available To Service Machinery Overseas
Capacity(t/h) 70-130 Application Mining,stone
High Light

PE250x1200 Jaw Stone Crusher Machine

,

PE250x1000 jaw crusher equipment

Leave a Message
Product Description

Marble Jaw Crusher PE 250x1000 250x1200 fine Jaw Crusher With Large Capacity
Introduction of Stone Jaw Crusher
Jaw stone Crusher is widely used for crushing stone, mineral ore, rock, glass, metal, ore, such as limestone, granite, dolomite, marble stone. in the industry of mining, construction, railway, water conservancy and chemical. Usually, in a whole production line, Ore Crusher Equipment is used for first crushing.
Jaw crusher is a traditional product absorbing world advanced technology, bases on our present traditional jaw crusher, and adopts three-dimensional design theory. Comparing with traditional jaw crusher, it has larger capacity and crushing ratio, bigger range of input size, evener product size, and easier maintenance.

PE250x1000 PE250x1200 Jaw Stone Crusher Machine 0
Features of Stone Jaw Crusher
1. High crushing ratio, well-distributed final product size.
2. Discharge opening of the jaw crusher is adjustable reliably within a wide range through the stuffing of shim, thus it is capable to meet various requirements of customers.
3. Lubrication system of it is safe and reliable, which boasts an easy and convenient maintenance.
4. Simple structure, reliable performance, low maintenance cost.

PE250x1000 PE250x1200 Jaw Stone Crusher Machine 1
Working Principle of Stone Jaw Crusher
The motor drives the belt wheel, and makes movable jaw up and down by eccentric shaft. When the movable jaw rises, the angle between the fixed jaw and movable jaw gets larger, and the materials can be crushed to reach the crushing target. When the movable jaw is down, the angle between the fixed jaw and movable jaw becomes smaller. The movable jaw plate leaves the fixed jaw plate under the function of drawbar and spring, and then the crushed materials are discharged from the lower outlet of the crushing cavity.
Technical parameters:

Model

Max Input size

(mm)

Outlet size

(mm)

Capacity

(t/h)

Power

(kW)

Overall dimension

L×W×H(mm)

Weight (t)
PE400×600 340 40-80 20-65 30-37 2500×1750×1950 8.5
PE500×750 425 45-150 45-107 45-55 3100×1980×2290 11.5
PE600×900 510 75-180 100-200 55-75 3450×2360×2780 17
PE750×1100 640 80-190 140-320 90-110 3750×2580×3180 24
PE860×1100 730 100-200 200-500 110-132 4870×2850×3170 32
PE900×1200 760 100-220 220-600 110-132 3500×2850×3290 48
PE1000×1200 850 150-300 280-750 132-160 4700×2930×3460 52
PE1200×1500 1020 180-340 350-950 160-220 6380×5310×3710 83
PE1500×1800 1250 210-360 500-1100 280 7460×6240×4250 122
PE250×1000 210 25-50 20-50 30-37 1680×2050×1370 7
PE250×1200 210 25-50 25-65 37-45 1680×2180×1370 8
PE300×1300 250 20-90 30-105 55-75 2150×2390×1590 11

Jaw crusher advantages

1.Simple structure ensures the crushing machine is not easy to break down.

2.Easy operation, which makes the crusher can be operated by common people.

3.High crushing ratio. Large stone lump can be quickly crushed into small particles.

4.Energy saving. The jaw crusher power amount is consumed less than other type of crushers.

5.Low cost, economically afforadable.

PE250x1000 PE250x1200 Jaw Stone Crusher Machine 2

Jaw crusher overview

Jaw crusher is one of the most common crushing equipment, mainly composed of moving jaw and static jaw. It is a crusher that simulates the two jaw movement of animals and completes the crushing operation of ores.Jaw crusher can be divided into two series according to different crushing method: PE series and PEX series. PE series jaw crusher is usually used for coarse crushing, PEX series jaw crusher is usually used for intermediate and fine crushing.

PE250x1000 PE250x1200 Jaw Stone Crusher Machine 3



Product pictures



PE250x1000 PE250x1200 Jaw Stone Crusher Machine 4



Jaw crusher specifications

Model Feeding mouth size
(mm)
Max Feeding size
(mm)
Adjusting range
of output size
(mm)
Capacity
(t/h)
rotation speed
(r/min)
Power
(kw)
Weight
(t)
Dimension
(L×W×H)
(mm)
PE-150×250 150×250 125 10-40 1-3 260 5.5 0.7 1000×870×990
PE-200×300 200×300 180 15-50 2-6 260 7.5 1 1050×920×990
PE-220×350 220×350 200 18-55 4-10 260 11 1.3 1100×970×990
PE-250×400 250×400 210 20-60 5-20 300 15 2.8 1300×1090×1270
PE-400×600 400×600 340 40-100 16-60 275 30 7 1730×1730×1630
PE-500×750 500×750 425 50-100 40-110 275 55 12 1980×2080×1870
PE-600×900 600×900 500 65-160 50-180 250 55 17 2190×2206×2300
PE-750×1060 750×1060 630 80-140 110-320 250 110 31 2660×2430×2800
PE-900×1060 900×1060 685 230-290 230-390 250 110 33 2870×2420×2940
PE-900×1200 900×1200 750 95-165 220-450 200 110 52 3380×2870×3330
PE-
PEX-150×750 150×750 120 18-48 8-25 320 15 3.8 1200×1530×1060
PEX-250×750 250×750 210 25-60 13-35 330 30 5.5 1380×1750×1540
PEX-250×1000 250×1000 210 25-60 16-52 330 30 7 1560×1950×1390
PEX-250×1200 250×1200 210 25-60 20-61 330 37 9.7 2140×1660×1500
PEX-300×1300 300×1300 250 20-90 16-105 300 55 15.6 2720×1950×1600

Crusher Working site

PE250x1000 PE250x1200 Jaw Stone Crusher Machine 5

Jaw crusher price

In order to select suitable jaw crusher model, we would like to know the following answers for these questions

1. What is the raw material you want to crush?

2. What is the input and output size of the material?

3.What is the capacity you need?



The Jaw crusher price depends on different crusher models. As the professional mining crusher manufacturer in China, we will provide maximum preferential price and discount for you. Welcome to visit our company and factory.
