Alluvial Placer Sand Gold Washing Plant Machine GTS20 GTS50 In Africa
Place of Origin | China |
---|---|
Brand Name | Ascend |
Certification | CE/ISSO9001 |
Model Number | GST20 GST40 GST50 MGT100 MGT200 |
Document | Product Brochure PDF |
Minimum Order Quantity | 1 set |
Price | USD 3500-30000 Per set |
Packaging Details | Water and rust proof in wooden box or cotainer |
Delivery Time | 7-10 working days |
Payment Terms | T/T, Western Union |
Supply Ability | 10 set per month |

Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Name | Gold Washing Plant Machine | Key Word | Placer Gold Trommel Screen Machine |
---|---|---|---|
Type | Gold Processing Plant | Recovery Rate | 90-98% |
Capacity | 10 - 100 Tons Per Hour | Motor | 10 - 75 KW |
Warranty | 1 Year | Weight | Depend On Different Models |
Color | As Customers' Requirements | ||
Highlight | GTS50 Gold Washing Plant,Alluvial Placer Sand Gold Washing Plant,GTS20 Gold Washing Plant |

alluvial placer sand gold trommel washing plant machine
The gold trommel washing plant is used in various mining operations of different sizes around the world. It is used for alluvial placer sand gold washing and selecting the particle or powder which has the advantages of less investment, less labor, fast return on investment, and simple operation. The complete set of gold trommel washing machine combine the feeding hopper, trommel screen or vibrating screen, water pump and high pressure water spray gun, gold centrifugal concentrator, gold sluice and other accessories.
Characteristic of Drum Scrubber Washing Machine
Gold mining trommel is specially designed to process alluvial gold, river gold, gold, diamond and other materials.
It includes hopper, water pump, water pipe, engine/diesel engine and wheels, which is convenient for moving.
In the early stage of gold mining, gold ore washing machine can be used to clean and screen gold ore. After mining, fine-grained ore is usually considered as useless material. The bottom particle ore containing gold is usually processed continuously through centrifugal concentrator or gold sluice box to upgrade gold ore. The concentrate produced by the centrifugal concentrator is processed through a shaking table to separate gold from other metal minerals.

Gold mining trommel screen for sale description:
The gold trommel screen can be used for cleaning and screening gold. Gold Rotary Screening offers superior performance compared to all competing mobile rotary screening equipment for gold refineries. The average productivity of a gold rotary sieve is 100-300 cubic meters per hour or 170-510 tons per hour based on a weight of material equivalent to 1.7 tons per cubic meter.
Designing & Building Custom Gold Mining Trommel for sale:
We can design and build a plant to your mineral, according to the mining details you provide. If you want to set up and operate your plant on site, we can provide those services as we have decades of successful mining experience.
Learn more about your mining area and help us understand your situation. Carefully review graves, its surroundings and historical information.

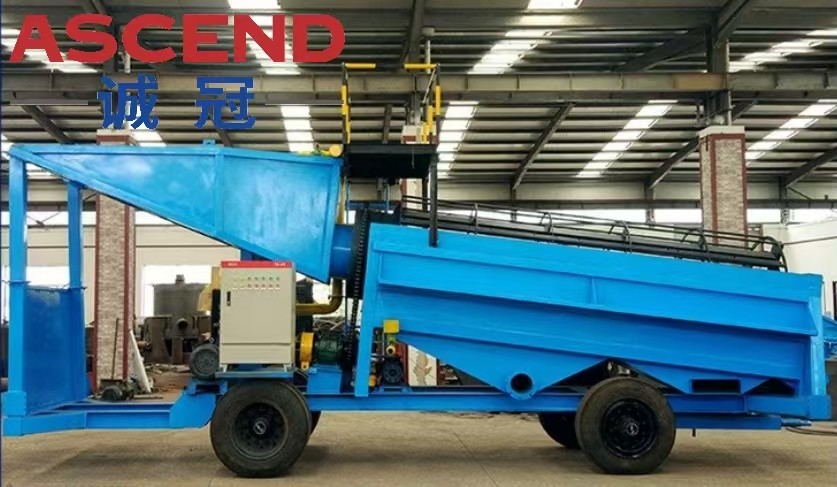

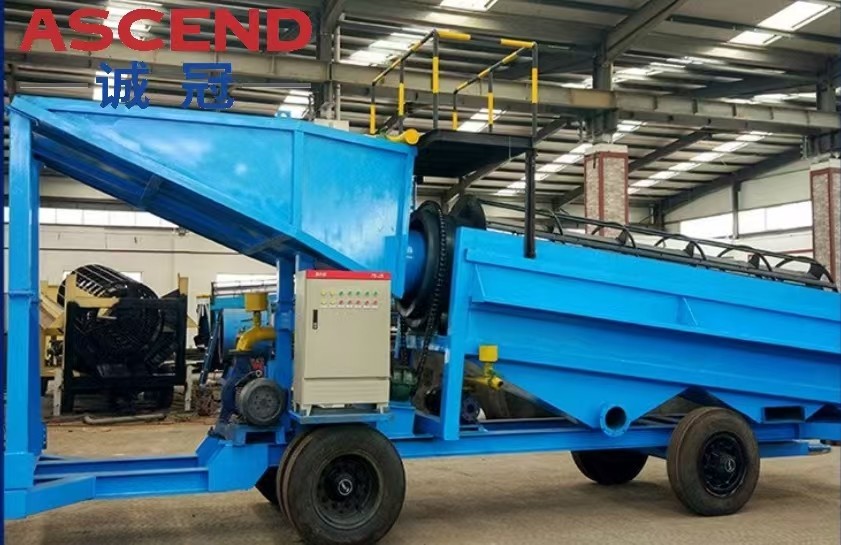

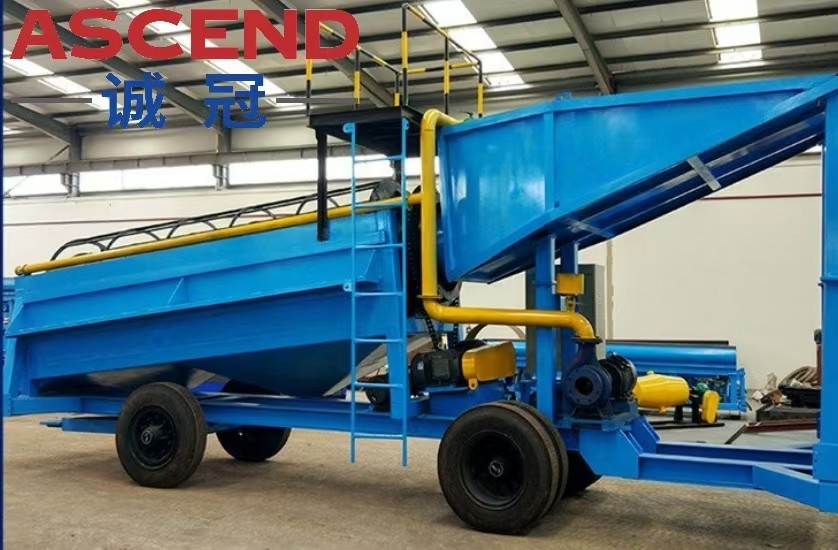

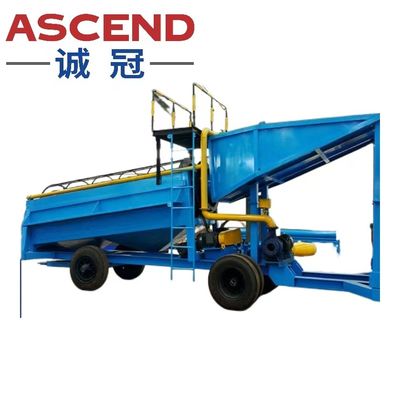

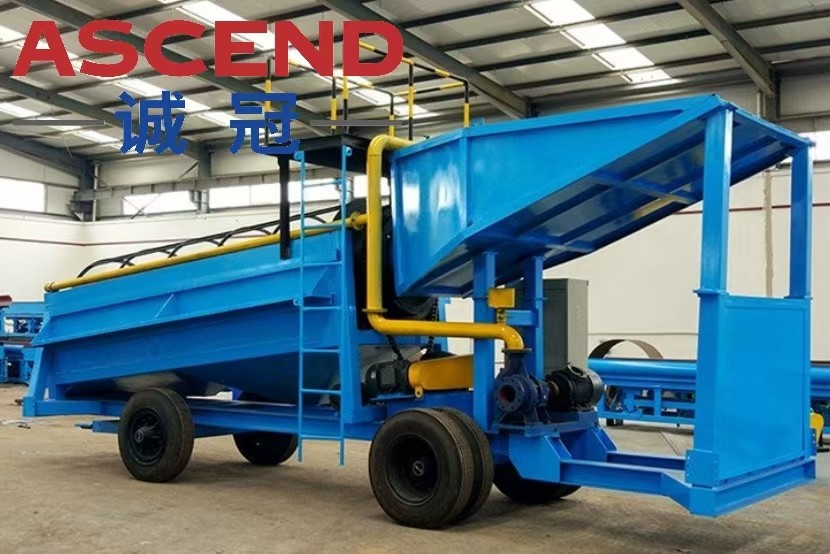

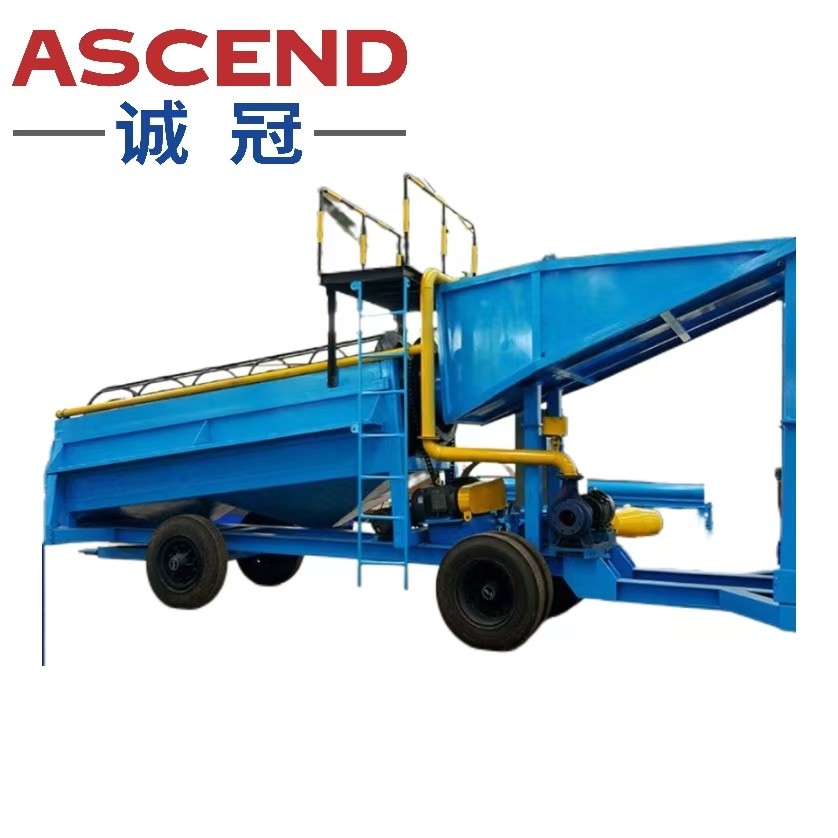

Product pictures
Advantages of gold trommel equipment:
1.It is a highly economically viable option adequately suitable for small to large volume processing of materials.
2.The screen features various filters for different heavy duty drums that ensure complete separation of fine materials.
3.The design has a end user flexibility that allows for screen replacements depending on mesh sizes
4.Multiple layers of screen to enhance the sifting process.
5.It features changeable screen plates so that worn out parts can be replaced.
6. Trommel screen has high efficiency and a big capacity for different volumes of materials
7.The screen is uniquely designed to facilitate higher capacities, provide longer screen life and avoid material clogging.
The trommel screen is equiped with water spray pipe inside drum, with feeding hopper, water pump, diesel generator,ect
Description of the placer gold washing plant.
After finishing installtion of the whole plant. Usually use excavator or payloader to feed the river sand into the hopper, then the sand go to the trommel screen. When the rotary trommel screen is rotating, big size more than 8mm sand will be screened out, small sizes less than 8mm will go to the gold centrifugal concentrator or vibrating gold sluice ( usually we recommend concentrator, as it can achieve high recovery rate for different gold particle sizes from 40 mesh to 200 mesh). Following the concentrator is gold sluice with gold blanket, which is used to recover the remaining gold in the concentrator.
Specification
SPECIFICATIONS OF GOLD EXTRACTION EQUIPMENT FOR WASHING GOLD SEPARATOR MACHINE | ||||
Model | GTS20 | GTS50 | MGT100 | MGT200 |
Parameters | ||||
Size /mm | 6000x1600x2499 | 7000*2000*3000 | 8300*2400*4700 | 9800*3000*5175 |
Capacity | 20-40 | 50-80 tph | 100-150 tph | 200-300 tph |
Power | 20 | 30 kw | 50 kw | 80 kw |
Trommel Screen /mm | 1000x2000 | φ1200*3000 | φ1500*3500 | φ1800*4000 |
Sluice Box | 2 set | 2 sets | 3 sets | 4 sets |
Water Supply /m³ | 80m³ | 120 m³ | 240 m³ | 370 m³ |
Recovery Rate | 95% | 98% | 98% | 98% |
Gold centrifugal concentrator is to use the gravity centrifugal force to collect the gold concentrate in the river sand or soil, it is suitable to collect the gold mesh size from 200 mesh to 40 mesh, the recovery rate for free gold particles can reach high to 90%, it is a perfect partner working with the gold trommel screen plant.
Gold sluice with blanket
Shaking table
After collect the gold concentrate fromo the centrifugal concentrator and gold sluice blanket, the most common way is then put it on the shaking table to further improve the gold grade.
Mercury Amalgamation barrel or small ball mill.
The gold ore concentrate collected from the shaking table will be put in the small ball mill, or we call itmercury amalgamation barrel. Then it can mix with the mercury and form the gold and mercury mixture.
Electric gold melting furnace
After get the mixture of gold and mercury, you can put it in the elctric gold melting furnace and heat it, then you can get the pure gold bar.
