2KG gold silver platinum Electric melting Furnace oven

Place of Origin China
Brand Name Ascend
Certification CE/ISSO9001
Model Number GP-15 GP-25 ZP-15 ZP-25
Minimum Order Quantity 1 set
Price 1500 to 1800 USD
Packaging Details wooden box in container
Delivery Time 7-10 working days
Payment Terms T/T, Western Union
Supply Ability 100 set per month
Product Details
After-sales Service Provided Online Support Certification ISO9001
Condition New Voltage 380v
Power 2.2kw,7.5KW Use Gold Mining Concentrate
Warranty 12 Months Application Gold Ore Melting
Product Name Electric Gold Melting Furnace
High Light

2KG Electric Smelting Furnace


0.5kg centrifugal gold concentrator

Leave a Message
Product Description

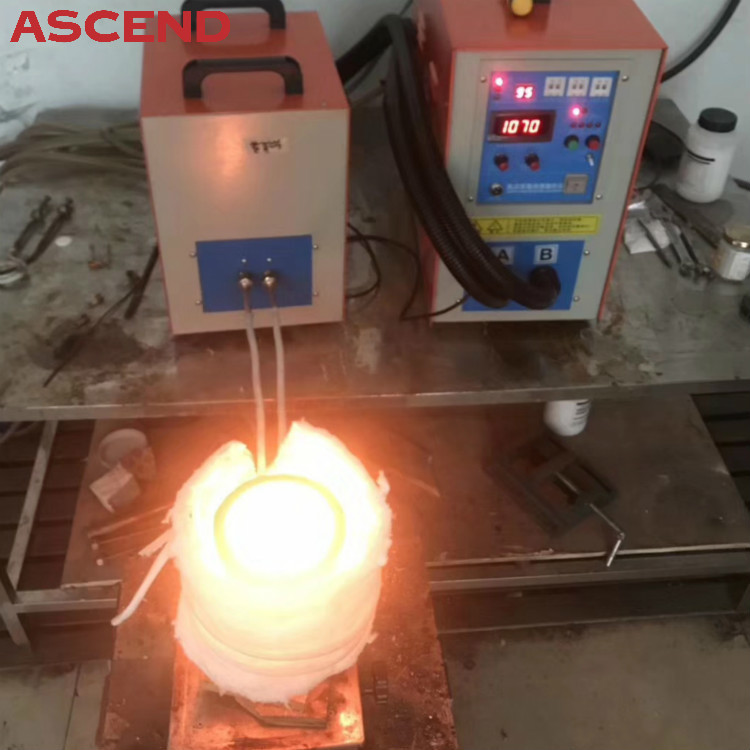

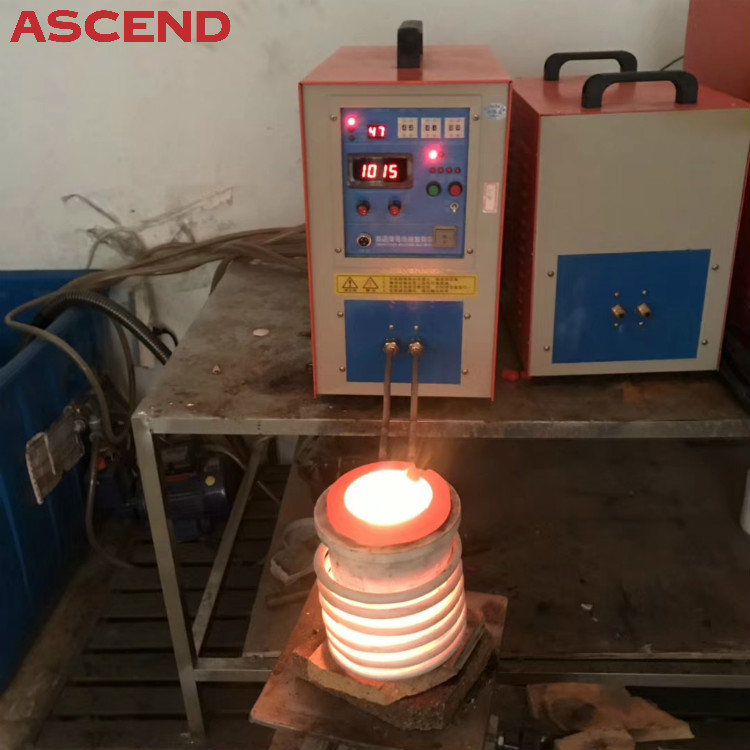

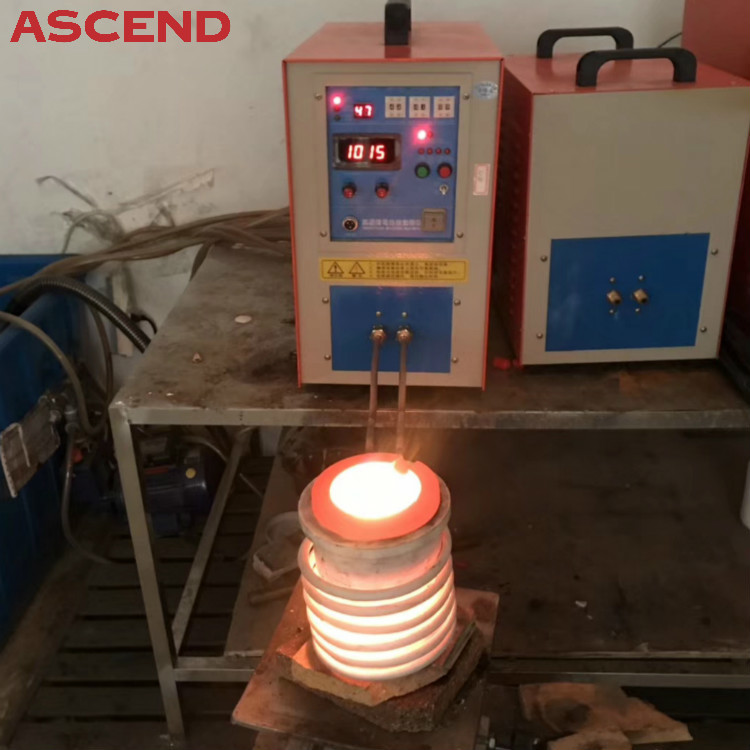

Electric gold and silver casting melting furnace with capacity 1kg,smelting machine


Small gold melting furnace
Gold melting furnace is suitable for melting: platinum, palladium gold, gold, silver, copper, steel, gold powder, sand, silver powder, silver mud, tin slag, stainless steel, aluminum and other high melting point metals for melting.

2. Single melting metal amount 1-2KG, single melting time 1-3 minutes.

3. The highest furnace temperature can reach 1500-2000 degrees.

2KG gold silver platinum Electric melting Furnace oven 0

Working principle

High-frequency and high-current flows into a heating coil(usually made of copper tube)that is wound into a ring or other shape,thereby generating a strong magnetic flux with a momentary change in the coil,and placing a heated object such as metal in the coil.The magnetic flux will penetrate the entire heated object.In the direction of the opposite direction of the heating current inside the heated object,a large eddy current will be generated.Due to the resistance of the heated object,a lot of heat will be generated.The temperature of the object itself rises rapidly,reaching the purpose of heating or smelting. To protect the machine body from being overheated, a water pump is needed to ensure the water recycling to cool the machine and prolong its working life.

2KG gold silver platinum Electric melting Furnace oven 1

Product advantages

1. Ultra-small size, covering less than 1 square meter;

2. 24-hour uninterrupted working ability;
3. Energy saving, low production cost;
4. Installation, operation is very convenient, just learn immediately;
5. Fast heating speed, reduce surface oxidation;
6. Environmental protection, no pollution, minimum loss of melting,
7. Greatly improve the working environment of the workshop.

8. Full protection: equipped with alarm devices such as over-pressure, over-current, heat input, water shortage, etc., and automatic control and protection.

2KG gold silver platinum Electric melting Furnace oven 2

2KG gold silver platinum Electric melting Furnace oven 3


Model Power Melting capacity for different materials
Iron, steel Gold, silver, copper Alluminium
GP-15 5KW 0.5KG 2 KG 0.5 KG
GP-25 8KW 1 KG 4 KG 1 KG
ZP-15 15KW 3KG 10KG 3KG
ZP-25 25KW 5KG 20KG 5KG
ZP-35 35KW 10KG 30KG 10KG
ZP-45 45KW 18KG 50KG 18KG
ZP-70 70KW 25KG 100KG 25KG
ZP-90 90KW 40KG 120KG 40KG
ZP-110 110KW 50KG 150KG 50KG
ZP-160 160KW 100KG 250KG 100KG

Spare parts crucibles

2KG gold silver platinum Electric melting Furnace oven 42KG gold silver platinum Electric melting Furnace oven 5
