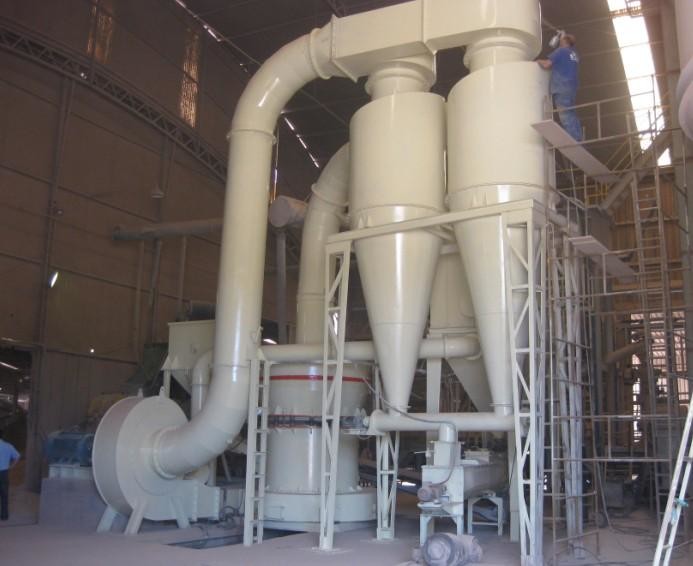

YGM75 YGM95 YGM130 Raymond Grinding Mill
| Place of Origin | China |
|---|---|
| Brand Name | Ascend |
| Certification | CE |
| Model Number | 3R2615 4R3016 4R3216 5R4121 |
| Minimum Order Quantity | 1 set |
| Price | USD 3500-65000 Per set |
| Packaging Details | water and rust proof in container |
| Delivery Time | 10-15 working days |
| Payment Terms | T/T, Western Union |
| Supply Ability | 10 set per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Application | Stone Powder Grinding | Color | Customized |
|---|---|---|---|
| Feeding Size | 20mm | Name | Raymond Mill |
| Condition | NEW | Type | Raymond Mill,grinding Mill |
| Capacity(t/h) | 0.5-50TPH | After-sales Service Provided | Engineers Available To Service Machinery Overseas |
| Output Size | 0.613-0.044mm | ||
| High Light | gypsum Raymond Grinding Mill,talcum limestone impact crusher,gypsum powder Raymond Grinding Mill |
||
Product Description
Limestone barite and gypsum powder making raymond mill machine
The raymond vertical grinding mill is used to grind barite, calcite, potash feldspar, talcum,marble, limestone, cream and slag below scale 7 of Moths hardness and 280-odd sorts of non-inflammable and non-explosive stuff in the traded of mining, building material, chemical engineering and metallurgy forpower generation and processing. Thefinal product size of raymond vertical grinding mill is adjustable onrequired in the range of 100-325 meshes.
Working Principle:
Firstly, raw material is crushed by jaw crusher to the required size of Raymond mill, which is lifted up to the hopper. Secondly, the raw material goes into the grinding chamber through the vibrating feeder at an even rate. Thirdly, the raw material lifted by the shovel is ground into powder between the ring and roller. Fourthly, the powder is blown up to the cyclone collector through the classifier, which will be collected through the discharging valve. The unneeded powder, which cannot go through the classifier, will be reground into the needed powder.
Product pictures
Raymond mill advantages
1. Higher output. Our Raymond mill’s output increases by 10%-20% comparing under the same power condition.
2. Larger range of final fineness. Size of final product is between 0.2mm –0.044mm (40-400mesh).
3. Good dust control. Our machine meets the requirement of national dust-dump standard.
4. Easy to operate. The whole system is combined by some independent systems, and the cohesion between the systems is good.
5. Excellent sealing. The lapping device adopts the multi-stage seal of superimposed type, which has good sealing performance.
Raymond mill spare parts
The main wearing parts of raymond mill are grinding roller and ring and the lifting shovel. All of them are made of high wearable high manganese alloy Mn13Cr2.
Product specifications
| Model | Roller Number |
Roller Size (mm) |
Feeding Size (mm) |
Output Size (mm) |
Capacity (T) |
Motor Power (kw) |
Weight (t) |
| 3R1510 | 3 | 150*100 | 15 | 0.2-0.044 | 0.3-1.2 | 7.5 | 2 |
| 3R2115 | 3 | 210*150 | 15 | 0.2-0.044 | 0.4-1.6 | 15 | 3.6 |
| 3R2615 | 3 | 260*150 | 20 | 0.2-0.044 | 0.8-2.5 | 18.5 | 4.2 |
| 3R2715 | 3 | 270*150 | 20 | 0.2-0.044 | 0.9-2.8 | 22 | 4.8 |
| 3R2715 | 3 | 300*150 | 20 | 0.2-0.044 | 1.2-3.5 | 30 | 5.3 |
| 4R3016 | 4 | 300*160 | 20 | 0.2-0.044 | 1.2-4 | 30 | 8.5 |
| 4R3216 | 4 | 320*160 | 25 | 0.2-0.044 | 1.8-4.5 | 37 | 15 |
| 5R4121 | 5 | 410*210 | 30 | 0.2-0.044 | 3-9.5 | 75 | 24 |
Installation drawing
For each raymond mill we sold, we will offer the customer installation drawing before installation. If customer needs, we will also send engineer to local site for installation and commissioning guidance.
