Silver Alluminium high induction Gold Melting smelting oven Furnace

Place of Origin China
Brand Name Ascend
Certification CE/ISSO9001
Model Number GP-15 GP-25 ZP-15 ZP-25
Minimum Order Quantity 1 set
Price 1500 to 1800 USD
Packaging Details wooden box in container
Delivery Time 7-10 working days
Payment Terms T/T, Western Union
Supply Ability 100 set per month
Product Details
Certification ISO9001 Condition New
Voltage 380v/220v Power 5kw
Use Gold Concentrate Smelting Warranty One Year
Application Gold Copper Melting Product Name Electric Gold Melting Furnace
High Light

5kg copper melting furnace

,

1kg Electric Smelting Furnace

Leave a Message
Product Description

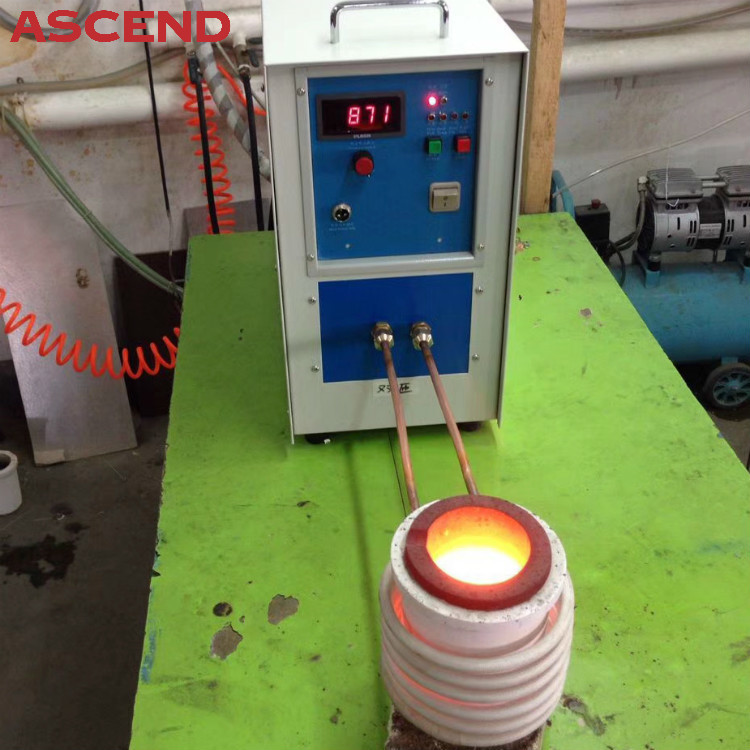

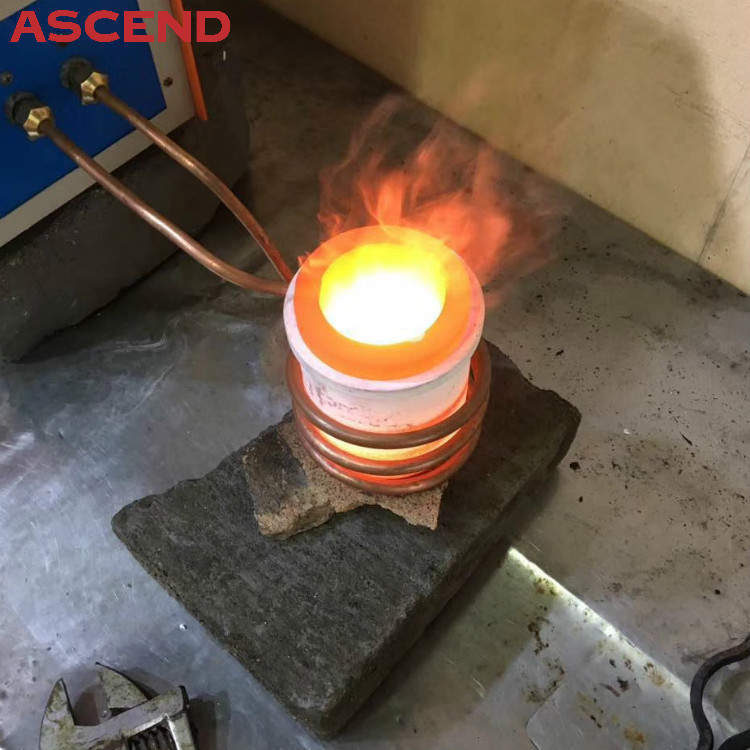

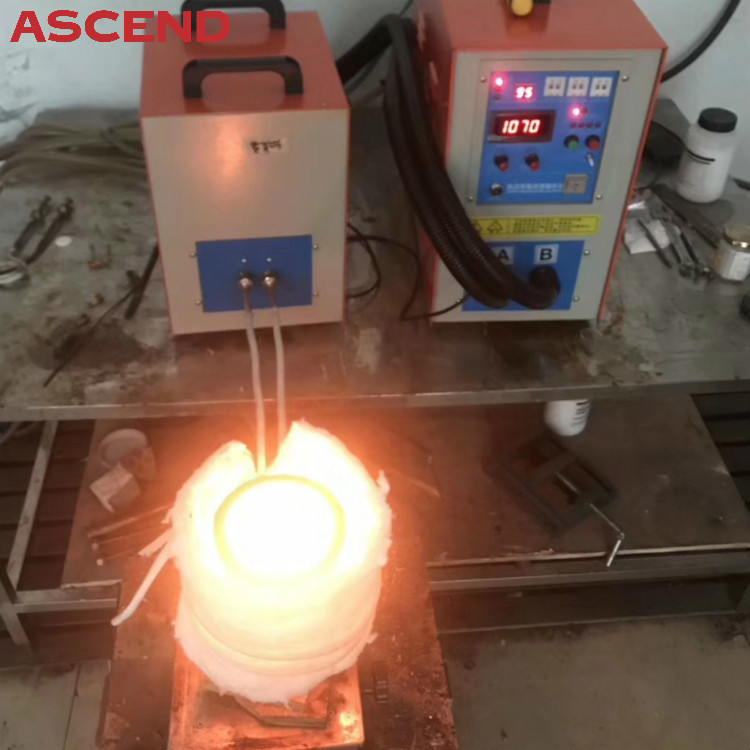

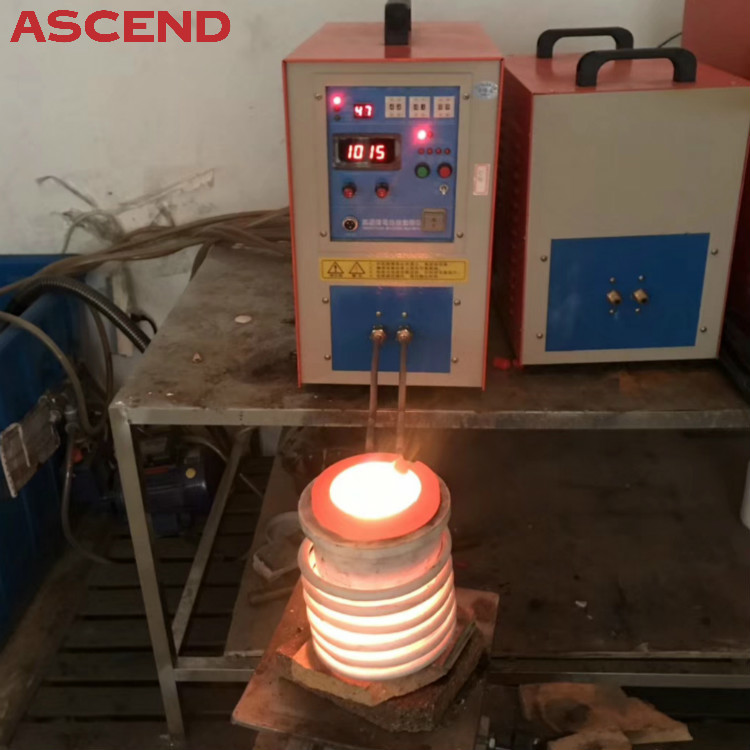

Electric gold and silver casting melting furnace with capacity 1kg,smelting machine

Features:

1.Electromagnetic stirring will help keeping the temperature stable, reducing impurities.

2. Easy to install and operate, no need to make foundation or any civil work.

3. Super small size and portable, occupies less than 1.0 square meters.

4. Power saving and environmental protection.

5. Using crucible: No need to make lining by refractory material as the normal induction furnace.

6. Easy to change and melt different materials.

Silver Alluminium high induction Gold Melting smelting oven Furnace 0

1. Power Condition: 380V. The voltage needs to keep stable or a voltage stabilizer is needed to to keep long life cycle.

2. Cooling Water Supply: The cold water shouldn’t stop any time, temperature needs to be cool, water needs to be clean.

3. Cooling Tower: It is better to assemble with a cooling tower if the furnace is continuous working, if not, a cooling tank is applicable.

4. Crucible Reliability: The crucible is normally to be replaced every 60 loads.

Silver Alluminium high induction Gold Melting smelting oven Furnace 1

Product advantages

1. Ultra-small size, covering less than 1 square meter;

2. 24-hour uninterrupted working ability;
3. Energy saving, low production cost;
4. Installation, operation is very convenient, just learn immediately;
5. Fast heating speed, reduce surface oxidation;
6. Environmental protection, no pollution, minimum loss of melting,
7. Greatly improve the working environment of the workshop.

8. Full protection: equipped with alarm devices such as over-pressure, over-current, heat input, water shortage, etc., and automatic control and protection.

Silver Alluminium high induction Gold Melting smelting oven Furnace 2

Silver Alluminium high induction Gold Melting smelting oven Furnace 3

Specifications

Model Power Melting capacity for different materials
Iron, steel Gold, silver, copper Alluminium
GP-15 5KW 0.5KG 2 KG 0.5 KG
GP-25 8KW 1 KG 4 KG 1 KG
ZP-15 15KW 3KG 10KG 3KG
ZP-25 25KW 5KG 20KG 5KG
ZP-35 35KW 10KG 30KG 10KG
ZP-45 45KW 18KG 50KG 18KG
ZP-70 70KW 25KG 100KG 25KG
ZP-90 90KW 40KG 120KG 40KG
ZP-110 110KW 50KG 150KG 50KG
ZP-160 160KW 100KG 250KG 100KG

Spare parts crucibles

Silver Alluminium high induction Gold Melting smelting oven Furnace 4Silver Alluminium high induction Gold Melting smelting oven Furnace 5
