Mobile Portable Stone Jaw Crusher Wheel Type Diesel Engine Jaw Crushing Plant
| Place of Origin | China |
|---|---|
| Brand Name | Ascend |
| Certification | CE/ISSO9001 |
| Model Number | PE200x300 PE220x350 PE250x400 PE400x600 |
| Minimum Order Quantity | 1 set |
| Price | USD 3500-35000 Per set |
| Packaging Details | Water and rust proof in wooden box or cotainer |
| Delivery Time | 10 working days |
| Payment Terms | T/T, Western Union |
| Supply Ability | 10 set per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Mobile Crushing Plant | Type | Jaw Crusher,Impact Crusher,Hammer Crusher |
|---|---|---|---|
| Motor Type | Diesel Engine Stone Crusher Plant | Material | Casting Chrome Cr26NiMo Alloy |
| Application | Mining,Quarry,Stone | Warranty | One Year |
| Condition | New | ||
| High Light | Wheel Type Stone Jaw Crusher,Diesel Engine Stone Jaw Crusher,Diesel Engine Jaw Crushing Plant |
||
Product Description

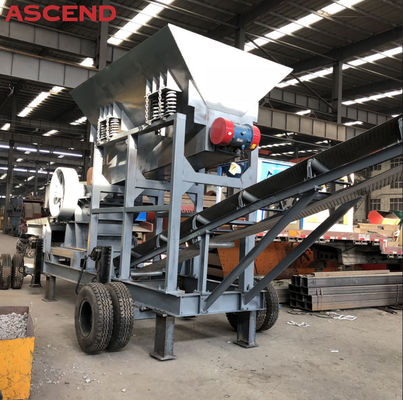

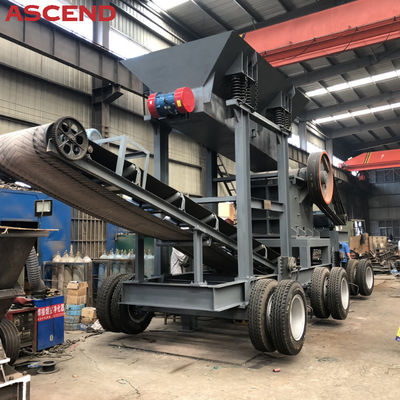

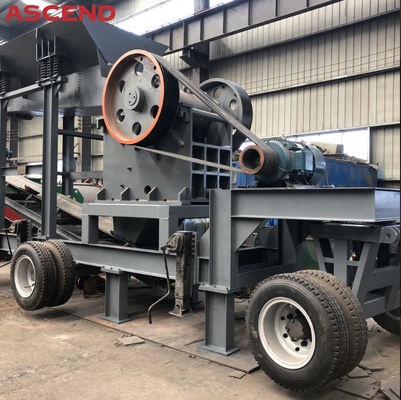

Mobile diesel engine stone jaw crusher crushing plant machine
Mobile Crusher is a kind of mobile crusher which integrates crushing, screening and feeding operation. It is widely used to process pebble, basalt, granite, limestone, quartz, construction waste, concrete, gold ore, iron ore, coal and other stone, ore and other minerals.
Mobile diesel engine jaw crushing plant description
According to the different crushing materials, we have the existing production, mobile jaw crusher, mobile sand making machine, mobile cone crusher, mobile impact crusher, mobile hammer crusher, mobile vibrating screen, etc. Depending on the driving method, we have rubber-tyred mobile crushing stations and crawler-type mobile crushing stations. Tailor-made solutions for you.

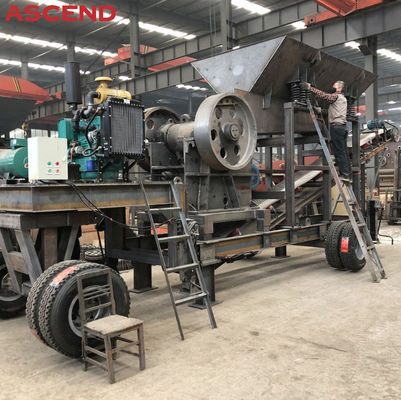

Here are the different mobile crushers we made according to different customer requirements. We can also make mobile crusher with diesel engine or generators, which can work in the wild environment where there is no electricity supply.
Mobile stone crushing plant specificaitons
| SC Jaw crusher | SC600 | SC750 | SC900 | SC1060 | SC1200 | SC1300PEX |
| Transport dimension | ||||||
| Length (mm) | 8600 | 9600 | 11097 | 13300 | 15800 | 9460 |
| Width (mm) | 2520 | 2520 | 3759 | 2900 | 2900 | 2743 |
| Height (mm) | 3770 | 3500 | 3500 | 4440 | 4500 | 3988 |
| Weight (Kg) | 15240 | 22000 | 32270 | 57880 | 98000 | 25220 |
| Axle load(kg) | 10121 | 14500 | 21380 | 38430 | 64000 | 14730 |
| Traction pin load(kg) | 5118 | 7500 | 10890 | 19450 | 34000 | 10490 |
| Jaw crusher | ||||||
| Model | PE400X600 | PE500X750 | PE600X900 | PE750X1060 | PE900X1200 | PEX300X1300 |
| Inlet size (mm) | 400X600 | 500X750 | 600X900 | 750X1060 | 900X1200 | 300X1300 |
| Adjustment range of discharge port (mm) | 40-100 | 50-100 | 65-180 | 80-180 | 95-225 | 20-90 |
| Capacity (m³/h) | 10-35 | 25-60 | 30-85 | 70-150 | 100-240 | 10-65 |
| Vibrating feeder | ||||||
| Hopper volume(m³) | 3 | 4 | 7 | 10 | 10 | 3 |
| Width of Hopper(mm) | 2200 | 2500 | 3000 | 3000 | 3000 | 2200 |
| Model | GZT0724 | GZT0724 | GZT0932Y | ZSW490X110 | ZSW600X130 | GZT0724 |
| Belt conveyor | ||||||
| Model | B650X6 | B800X7 | B1000X8 | B1000X11 | B1200X13 | B1000X7 |
Performance Characteristics of Mobile Crusher
1. Mobile Crushing plant has good mobility, which can be extended with the raw materials or construction site and can be combined to meet the needs of different materials.
2. Mobile crushing equipment eliminates the tedious steel frame structure and foundation construction during crushing and saves a lot of time. It can quickly select the site and drive directly to the site without transportation.
3. The installation form of structural integration unit eliminates the split components, complicated site infrastructure installation, and reduces the floor area, especially suitable for small crushing sites and construction waste treatment.
4. Modular and intelligent operation design makes one person can operate, work more stable, the overall output is increased, and complete specifications of finished products with good grain size.
5. Dual power drive makes free switching between commercial power and diesel, which help mobile crusher machine keep in good condition anytime and anywhere.
Mobile diesel jaw crusher plant delivery
According to the mobile crusher plant dimension and customer request, we can load the crusher plant into full container or put it in the bulk ship to reduce the shipping cost
