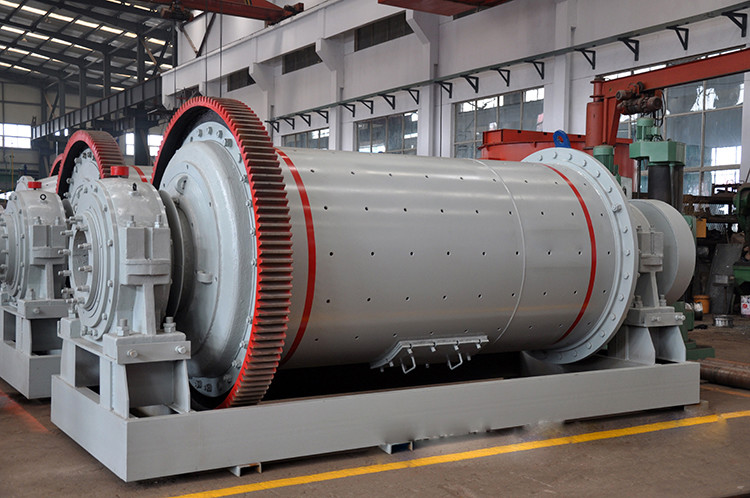

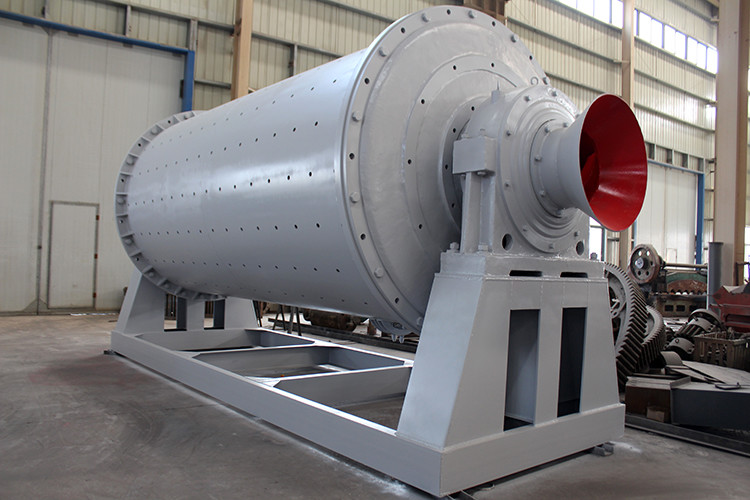

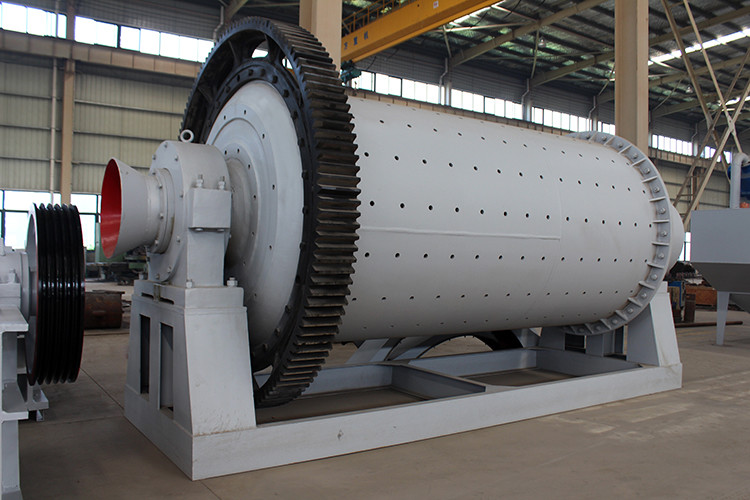

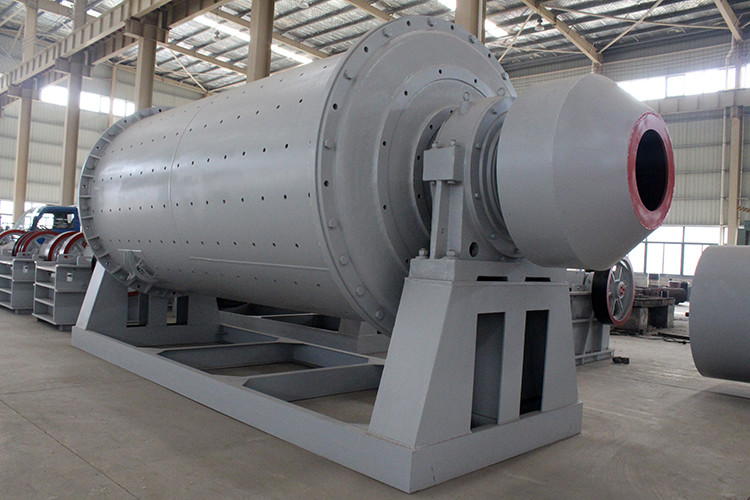

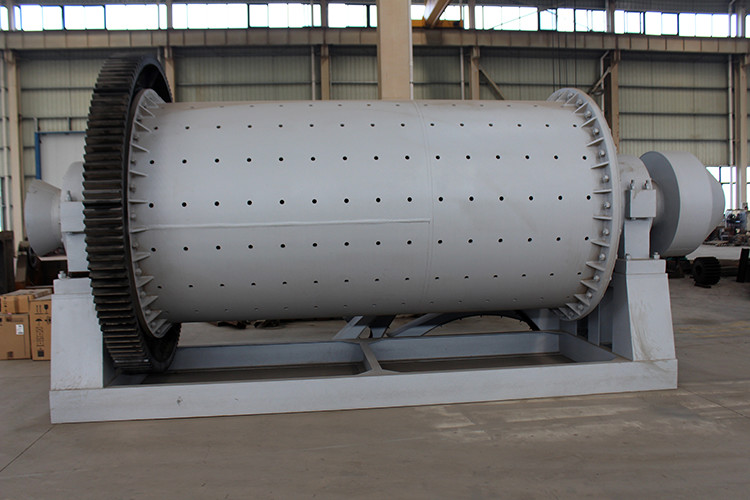

small capacity mining gold ore ball mill grinding mill machine

ball mill is a key equipment to grind the crushed materials, and the ball mill is widely used in powder-making production line including cement, silicate, new-type building material, refractory material, fertilizer, ore dressing of ferrous metal and
non-ferrous metal, glass ceramics,our ball mill can save electricity 10-15%,we make Ceramic and rubber ball mill

Ball Mill Structure

The structure of ball mill is as follows, which is composed of feed opening, discharging port, cylinder, lining plate, grinding ball, etc.

Ball Mill Types

1. According to different discharging ways, it can be divided into the lattice ball mill (grate ball mill) and overflow ball mill;

2. According to the residence of materials, it can be divided into intermittent ball mill and continuous ball mill;

3. According to different sizes, ball mill machine can be classified into large ball mill and small ball mill;

4. According to different materials, ball grinding mill can be divided into dry ball mill and wet ball mill.

Fote Machinery can design and produce various types of ball mill, and all of our ball mills have the ISO9001 quality certification, which can meet the actual needs of different customers.

Wet Type Ball Mill

Currently, the most commonly used ball mill is wet type ball mill, which can greatly improve the grinding efficiency with uniform particles and does not produce dust. When compared to the wet ball mill, the extension of dry ball mill is not good, and the cracks can't be extended, however, wet ball mill offers a very good solution to this problem.

Dry Type Ball Mill

Dry Type Ball Mill used for Production of Powdery Materials

Lattice Type Ball Mill

At present, most of the ball mill is the lattice type ball mill or grate ball mill, which has low slurry surface of the outlet, so that the slurry can quickly pass through to reduce the over grinding; it can contain a lot of balls, both the large and the small balls can be loaded, and the small balls will not be discharged. It can form good working conditions, under the same conditions, its production capacity is higher with low power consumption.

Ball mill specifications
