Vibrating Screening Plan Stone Crushing Machine

  • Vibrating Screening Plan Stone Crushing Machine
  • Vibrating Screening Plan Stone Crushing Machine
  • Vibrating Screening Plan Stone Crushing Machine
  • Vibrating Screening Plan Stone Crushing Machine
Place of Origin China
Brand Name Ascend
Certification ISO9001
Model Number PE200x300 PE220x350 PE250x400 PE400x600
Minimum Order Quantity 1 set
Price USD 15000-25000
Packaging Details Wooden box or put in container
Delivery Time 7-10 working days
Payment Terms T/T, Western Union, MoneyGram, L/C
Supply Ability 50 Sets per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Jaw Crusher, Vibrating Screen Function Stone Crashing
Type Fixed Or Portable Jaw Crusher Condition New
Warranty 1 Year After-sales Service Provided Engineers Available To Service Machinery Overseas
Capacity(t/h) 70-130 Application Quarry, Mining
High Light

quartzite crushing stone jaw crusher

,

Vibrating stone crushing machine
Leave a Message
Product Description
30 ton per hour pebble stone crushing and screening plant

A South American customer is planning to build a small stone production line. After the joint efforts of our business and engineering team, we successfully help the customer build a 30-ton per hour river stone crushing and screening production plant.

Customer Requirements:

Raw material: pebble stone
Input Material size: 350mm
Final Products: 0-4mm, 4-13mm, 13-19mm, 19-25mm four kinds of coarse sand and gravels.

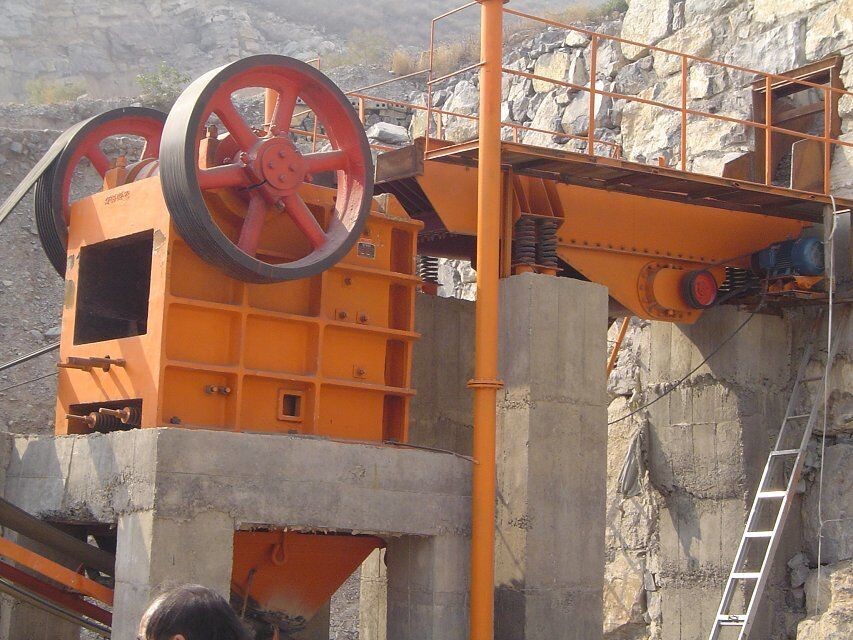

Production Process: This production plant adopts coarse crushing, medium crushing and screening processes to produce four types of sand and gravel products. The specific process is to use truck to put the raw material into the hopper, and then raw stone is conveyed into the coarse crushed jaw crusher through the vibrating feeder. After being crushed, it is transported to the medium fine crushing PEX series jaw crusher by the belt conveyor, and then the crushed stone is conveyed to the vibrating screen through the belt conveyor. The qualified output sizes are screened out and conveyed by the conveyor. The over sized aggregates are returned back to the fine jaw crusher for recrushing. This process forms into a close circuit and work continuously.

The main line of this production line is:
1 set of PE400×600 jaw crusher;
2 sets of PEX250×1000 jaw crusher;

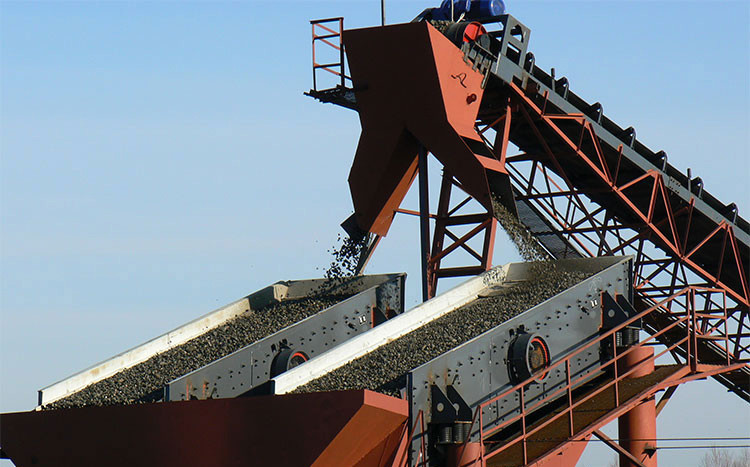

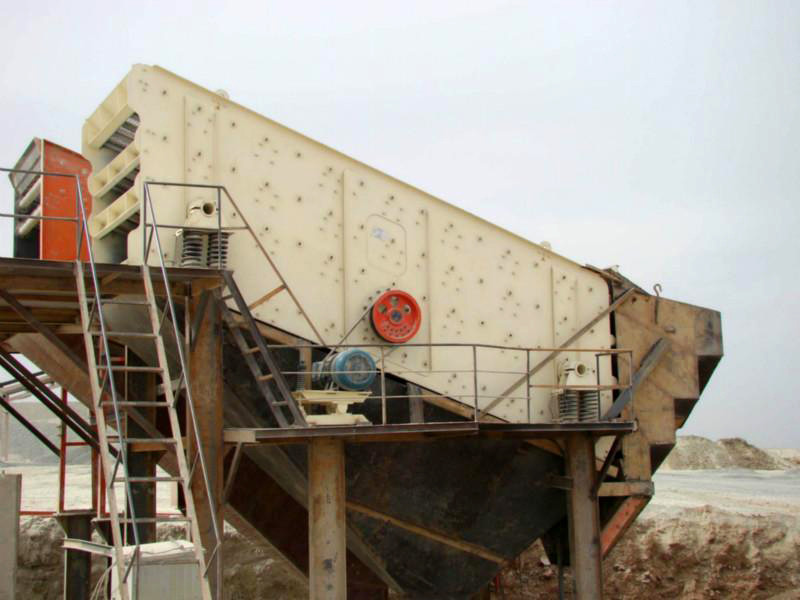

1 set of 3YK1237 circular vibrating screen;
Auxiliary equipment: Vibrating feeder, belt conveyors form a production line.

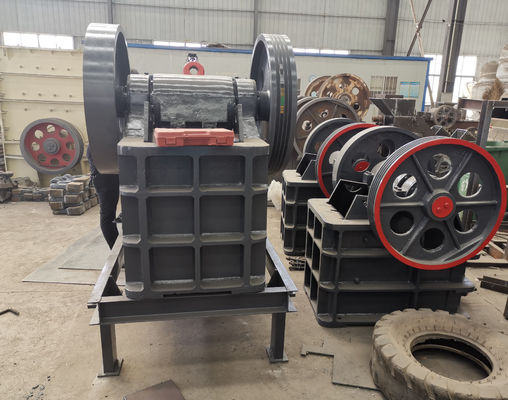

Jaw crusher specifications



Model
Feed opening
(mm)
Max.feeding size
(mm)
Adjusting range of discharge opening
(mm)
Processing capacity
(t/h)
Rotation speed of eccentric shaft
(r/min)
Motor power
(kw)
Total weight
(t)
Dimensions
(L×W×H)
(mm)
PE-150×250 150×250 125 10-40 1-3 250 4P 5.5 0.8 720×660×850
PE-200×300 200×300 180 15-50 2-6 260 4P 7.5 1.2 910×750×990
PE-200×350 200×350 180 18-70 3-10 260 4P 11 1.5 1000×870×990
PE-250×400 250×400 210 20-60 5-20 300 6P 15 2.8 1300×1090×1270
PE-400×600 400×600 340 40-100 16-60 275 6P 30 7 1730×1730×1630
PE-500×750 500×750 425 50-100 40-110 275 6P 55 12 1980×2080×1870
PE-600×750 600×750 500 150-200 80-240 275 6P 55 15.8 2070×2000×1920
PE-600×900 600×900 500 65-160 50-180 250 6P 55 17 2190×2206×2300
PE-750×1060 750×1060 630 80-140 110-320 250 8P 110 29 2660×2430×2800
PE-800×1060 800×1060 640 130-190 130-330 250 8P 110 29.8 2710×2430×2800
PE-830×1060 830×1060 650 160-220 150-336 250 8P 110 30.7 2740×2430×2800
PE-870×1060 870×1060 660 200-260 190-336 250 8P 110 31.5 2810×2430×2800
PE-900×1060 900×1060 685 230-290 230-390 250 8P 110 33 2870×2420×2940
PE-900×1200 900×1200 750 95-165 220-450 200 8P 110 52 3380×2870×3330


Vibrating Screening Plan Stone Crushing Machine 0

Vibrating Screening Plan Stone Crushing Machine 1
The detailed flow chart is as follows:
Vibrating Screening Plan Stone Crushing Machine 2

Conclusion:
The design of this project is simple and the selected equipment is mature and stable. After 20 working days of production in the Chinese factory, it is delivered on time. The post-installation and commissioning work progressed smoothly. It was successfully put into operation at the end of November, and the sand and gravel products produced satisfies the needs of the local small-scale construction market. The production and sales of the factory are booming.
