Feldspar Powder Making Ball Mill Crusher

Place of Origin China
Brand Name Ascend
Certification CE/ISSO9001
Model Number TCQ900x1100 TCQ1200X1500
Minimum Order Quantity 1 set
Price USD 3500-35000 Per set
Packaging Details Water and rust proof in wooden box or cotainer
Delivery Time 10 working days
Payment Terms T/T, Western Union
Supply Ability 10 set per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Dimensions Customer Required Application Mining,plastic, Powder Plant
Ball Mill Liner Manganese Alloy Steel Product Name Ball Mill Crusher
Breakage Rate Less Than 0.5% Surface Treatment Polished
Usage For Ball Mill And Rod Mill,griniding Media Type Wet Or Dry Grinding Ball Mill
High Light

Feldspar powder making machine

,

Feldspar grinding media steel ball

,

Feldspar Ball Mill Crusher

Leave a Message
Product Description

0.5 ton to 5 ton per hour small ceramic batch ball mill grinding machine

Ceramic batch ball mill is used for fine grinding of feldspar,quartz,clay,ore and so on.The ceramic ball mill is a kind of batch mill, which means it will grind the material for some time without discharging until the mateiral reach the desired sizes.The fineness of the grinding operation is controlled by the grinding time.

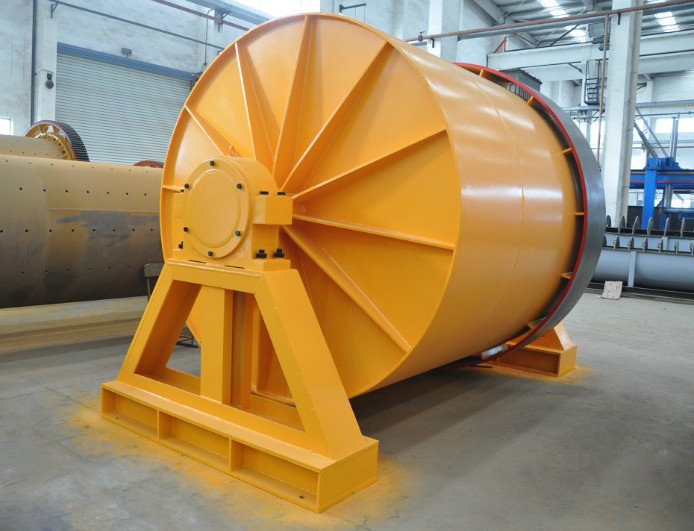

Feldspar Powder Making Ball Mill Crusher 0

The biggest difference between ceramic ball mill and common ball mill is lied in the structure and lining.



1.Ball mill usually refers to continuous feed and discharging type with a feed end and a discharge section,while the batch ball mill is a batch feed, and there is only one hole in the middle of the cylinder,which is both discharged and fed.



2.After the material is ground into desired sizes,the material is discharged,and the material to be grounded next time is added to batch ball mill.



3.There is also a ceramic ball mill without a large ring gear,which is driven by a motor to drive the belt reducer to rotate the cylinder to complete the grinding operation.The ceramic ball mill liner is made of ceramic,silica and rubber to ensure the purity of the discharge.

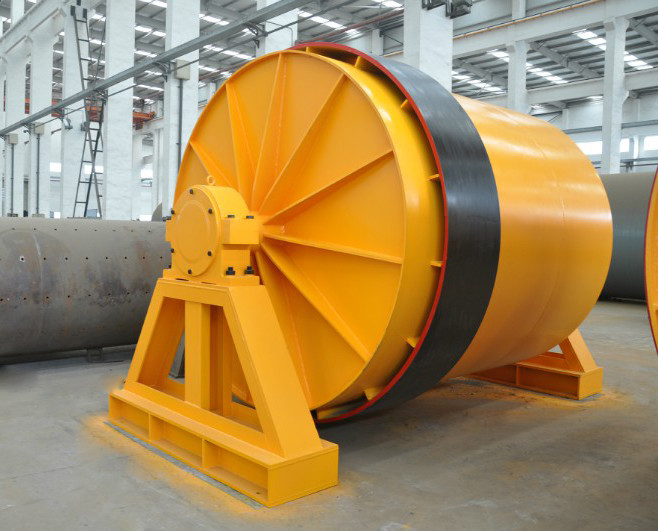

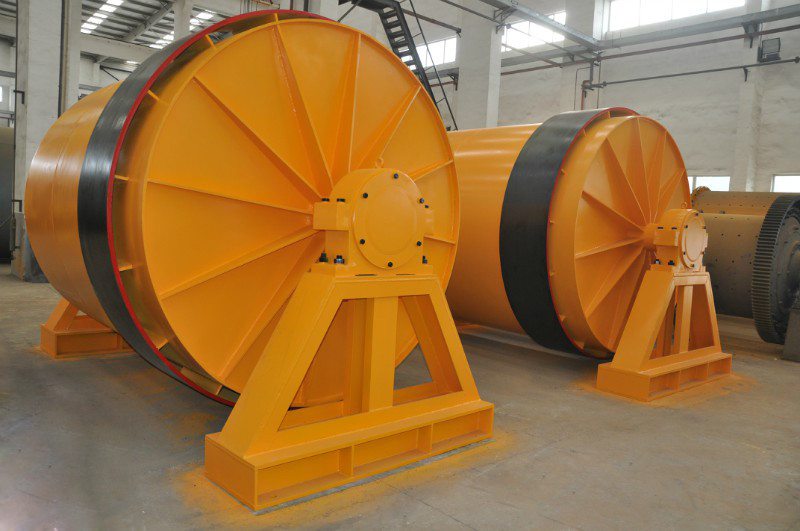

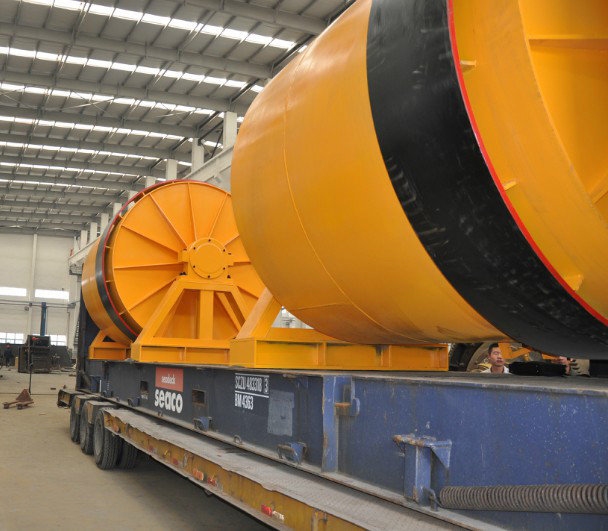

Feldspar Powder Making Ball Mill Crusher 1Feldspar Powder Making Ball Mill Crusher 2Feldspar Powder Making Ball Mill Crusher 3

Specifications

Model Capacity
(t/h)
Cylinder speed
(r/min)
Motor power
(kw)
Weight
(t)
TCQ910×1120 0.2 36 5.5-11 3.0
TCQ1200×1400 0.5 32 11-18.5 3.8
TCQ1500×1800 1.0 28 15-22 4.5
TCQ1800×2100 1.5 26 18.5-30 6.0
TCQ2100×2100 2.5 22 22-37 7.4
TCQ2500×2900 5.0 16 37-55 9.3
TCQ2800×3700 8.0 14.5 55-75 12.5
TCQ3000×3700 10 14 75-90 18.6



Ceramic batch ball mill liners and ceramic balls

Feldspar Powder Making Ball Mill Crusher 4

Feldspar Powder Making Ball Mill Crusher 5

Customer working site

Feldspar Powder Making Ball Mill Crusher 6Feldspar Powder Making Ball Mill Crusher 7
