Quarry Sand 4 Deck Vibrating Screening Machine

  • Quarry Sand 4 Deck Vibrating Screening Machine
  • Quarry Sand 4 Deck Vibrating Screening Machine
  • Quarry Sand 4 Deck Vibrating Screening Machine
Place of Origin China
Brand Name Ascend
Certification CE/ISSO9001
Model Number 2YK1237 2YK1548 3YK2460
Minimum Order Quantity 1 set
Price 4000-12900 USD Per Set
Packaging Details Water and rust proof in wooden box or cotainer
Delivery Time 7-10 working days
Payment Terms T/T, Western Union, L/C
Supply Ability 10 set per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Vibrating Screener Machine Motor AC Motor
Application Mining Ore, Slag, Quarry Dimension 5570mmx3086mmx3296mm
Color Customized Warranty One Year
Type Circular,vibrating Screen Condition New
After-sales Service Provided Engineers Available To Service Machinery Overseas Voltage 380V,220V/380V,Customized
Weight 4 Deck Vibrating Screen Layer 1-4 Layers(as Customized)
Product Name Votary Vibrating Sieve Machine/Mini Vibrating Screening Machine
High Light

vibratory sand screening machine

,

4 Deck sand vibrating screen

,

4 Deck Vibrating Screening Machine
Leave a Message
Product Description

Stone Aggregate Gravel Vibrating Screening Screen Machine For Quarry



YK Series circular vibrating screen can be used to separate minerals into various sizes for further processing in crusher. It incorporates a vibrator, eccentric block, mesh, spring, triangular belt and motor and is used for discharging bulky goods, sand, gravel, coal and coke from hopper to crusher. We can design and supply all ranges of vibrating screens according to the capacity and requirement.



Application of high efficiency mining samll virbrating screen machine

The vibrating screen with circular motion is specially designed for quarry to separate crushed stone material into different sizes, and is also used as a grading machine in coal dressing, ore dressing, construction material, electric and chemical industries.



Working principle

There are two eccentric shafts rotating at high speed at the same time from opposite directions, thus the strong centrifugal force is formed. The component forces of centrifugal force along the vibrating direction will always overlap each other, then counteract with that of vertical force from vibrating direction, then exciting force along single direction is formed to drive the feeder vibrate along straight line. When materials are fed into the feeder, they may be thrown up and move like para curve, then fall down. The materials will move forward on the slope surface of the feeder.

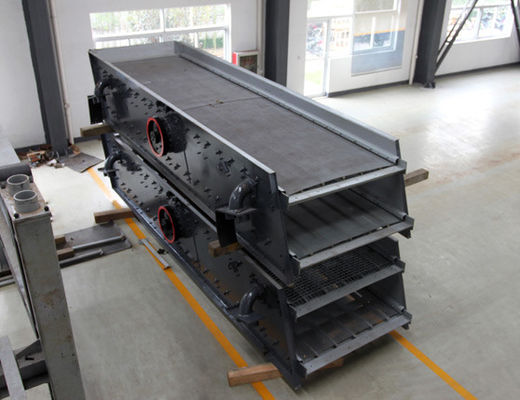

Quarry Sand 4 Deck Vibrating Screening Machine 0

Main features

1.Stable performance and high screening efficiency
The circular vibrating screen follows the structural design of the classic screening equipment, and its performance is fully guaranteed

2.A variety of screens to choose from
To meet the requirements of various classification operations after coarse crushing and medium crushing in the crushing process, we have configured a variety of screens for the circular vibrating screen. So that we can meet different production needs through simple screen replacement operations.

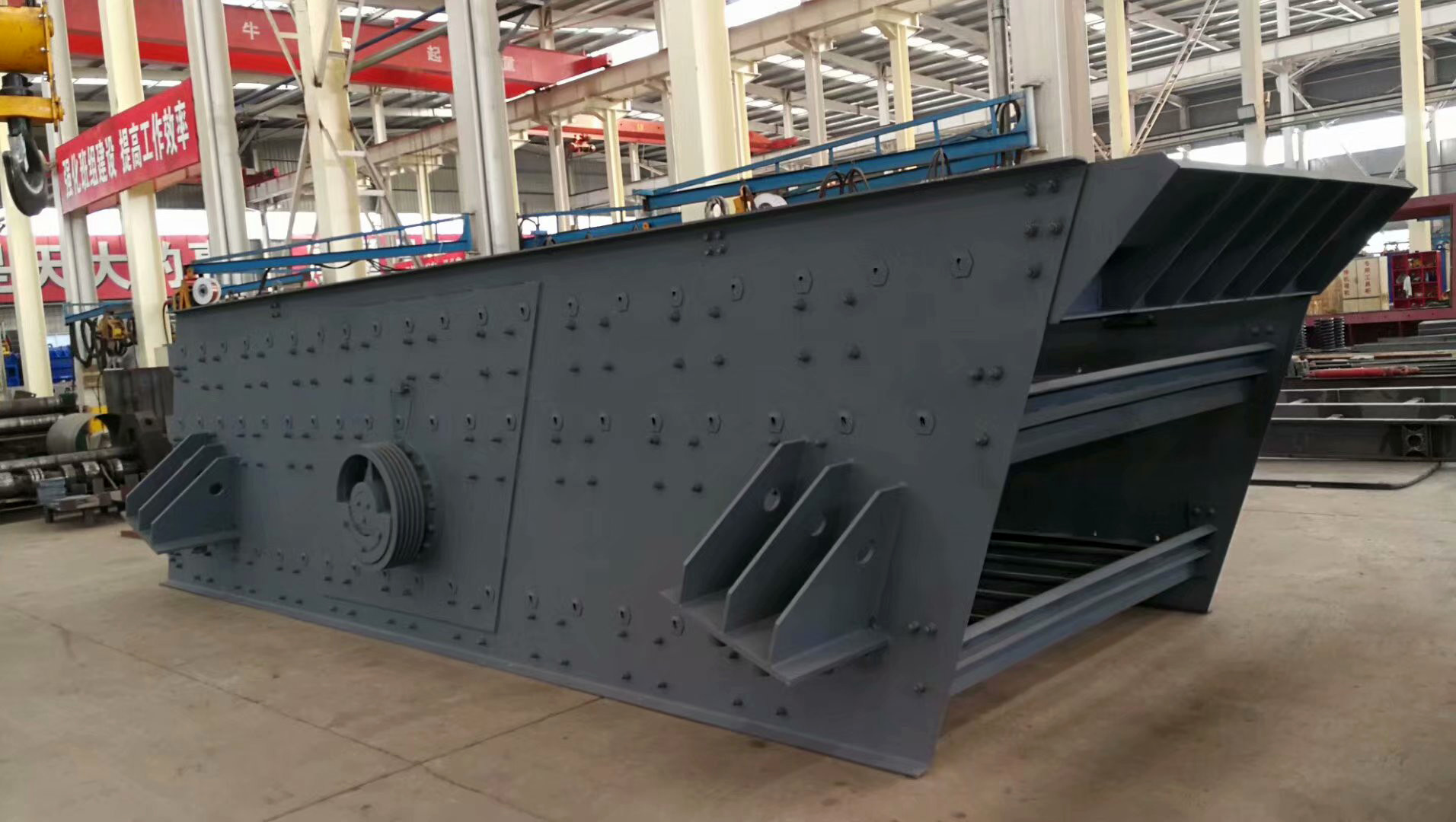

Quarry Sand 4 Deck Vibrating Screening Machine 1

Product specifications

Model Layers

Screen Hole

Size(mm)

Max Feeding

Size (mm)

Vibrating Frequency

(r/mm)

 Screen Slope(0°) Capacity(t/h)

Motor Power

(Kw)
3YK1230 3 3-50 < 200 800-970 20 12-120 5.5
3YK1336 3 6-50 < 200 970 20 15-160 11
3YK1548 3 5-80 < 200 970 20 50-250 15
3YK1848 3 5-80 < 200 970 20 50-300 18.5
3YK1860 3 5-80 < 200 970 20 50-350 22
3YK2160 3 5-100 < 200 730 20 100-500 30
3YK2460 3 5-150 < 200 730 20 150-700 30
3YK2770 3 5-150 < 200 730 20 200-800 30*2
4YK1548 4 5-80 < 200 970 20 50-250 18.5
4YK1848 4 5-80 < 200 970 20 50-300 22
4YK1860 4 5-80 < 200 970 20 50-350 22
4YK2160 4 5-100 < 200 730 20 100-500 30
4YK2460 4 5-150 < 200 730 20 150-700 37
4YK2770 4 5-150 < 200 730 20 200-800 30*2

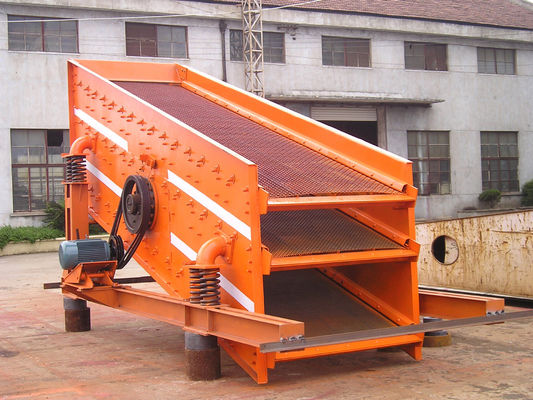

Customer working site

Quarry Sand 4 Deck Vibrating Screening Machine 2Quarry Sand 4 Deck Vibrating Screening Machine 3

Vibrating screen package and delivery

Quarry Sand 4 Deck Vibrating Screening Machine 4
