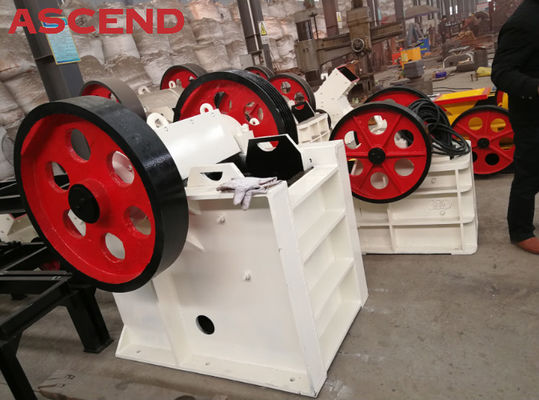

Granite rock stone gravel PE400x600 Manganese Plate Jaw Crusher Equipment

  • Granite rock stone gravel PE400x600 Manganese Plate Jaw Crusher Equipment
  • Granite rock stone gravel PE400x600 Manganese Plate Jaw Crusher Equipment
  • Granite rock stone gravel PE400x600 Manganese Plate Jaw Crusher Equipment
  • Granite rock stone gravel PE400x600 Manganese Plate Jaw Crusher Equipment
Place of Origin China
Brand Name Ascend
Certification ISO9001
Model Number PE250x400 PE400x600 PE500x750
Minimum Order Quantity 1 set
Price USD 3000-13000
Packaging Details Wooden box or put in container
Delivery Time 10-20 working days
Payment Terms T/T, Western Union, MoneyGram, L/C
Supply Ability 20 Set per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Jaw Crusher Color Optional
Material High Manganese Mn13Cr2 Function Stone Crushing
High Light

PE400x600 jaw crusher equipment

,

PE400x600 Plate Mobile Jaw Crusher
Leave a Message
Product Description

Granite, limestone stone jaw crusher equipment

High efficiency Jaw crusher

Jaw crusher is traditional  primary stone crusher machine, widely used in mining, construction, road building, infrastructuring and other industries. It is mainly used to crush material like granite, limestone, basalt, gold, copper, iron, lead and zinc ore, etc.

Granite rock stone gravel PE400x600 Manganese Plate Jaw Crusher Equipment 0

Jaw crusher advantages

1.Simple structure ensures the crushing machine is not easy to break down.

2.Easy operation, which makes the crusher can be operated by common people.

3.High crushing ratio. Large stone lump can be quickly crushed into small particles.

4.Energy saving. The jaw crusher power amount is consumed less than other type of crushers.

5.Low cost, economically afforadable.

Granite rock stone gravel PE400x600 Manganese Plate Jaw Crusher Equipment 1

Jaw crusher overview

Jaw crusher is one of the most common crushing equipment, mainly composed of moving jaw and static jaw. It is a crusher that simulates the two jaw movement of animals and completes the crushing operation of ores.Jaw crusher can be divided into two series according to different crushing method: PE series and PEX series. PE series jaw crusher is usually used for coarse crushing, PEX series jaw crusher is usually used for intermediate and fine crushing.

Granite rock stone gravel PE400x600 Manganese Plate Jaw Crusher Equipment 2



Product pictures

Granite rock stone gravel PE400x600 Manganese Plate Jaw Crusher Equipment 3

Granite rock stone gravel PE400x600 Manganese Plate Jaw Crusher Equipment 4



Jaw crusher specifications

Model Feeding mouth size
(mm)		 Max Feeding size
(mm)		 Adjusting range
of output size
(mm)		 Capacity
(t/h)		 rotation speed
(r/min)		 Power
(kw)		 Weight
(t)		 Dimension
(L×W×H)
(mm)
PE-150×250 150×250 125 10-40 1-3 260 5.5 0.7 1000×870×990
PE-200×300 200×300 180 15-50 2-6 260 7.5 1 1050×920×990
PE-220×350 220×350 200 18-55 4-10 260 11 1.3 1100×970×990
PE-250×400 250×400 210 20-60 5-20 300 15 2.8 1300×1090×1270
PE-400×600 400×600 340 40-100 16-60 275 30 7 1730×1730×1630
PE-500×750 500×750 425 50-100 40-110 275 55 12 1980×2080×1870
PE-600×900 600×900 500 65-160 50-180 250 55 17 2190×2206×2300
PE-750×1060 750×1060 630 80-140 110-320 250 110 31 2660×2430×2800
PE-900×1060 900×1060 685 230-290 230-390 250 110 33 2870×2420×2940
PE-900×1200 900×1200 750 95-165 220-450 200 110 52 3380×2870×3330
PE-
PEX-150×750 150×750 120 18-48 8-25 320 15 3.8 1200×1530×1060
PEX-250×750 250×750 210 25-60 13-35 330 30 5.5 1380×1750×1540
PEX-250×1000 250×1000 210 25-60 16-52 330 30 7 1560×1950×1390
PEX-250×1200 250×1200 210 25-60 20-61 330 37 9.7 2140×1660×1500
PEX-300×1300 300×1300 250 20-90 16-105 300 55 15.6 2720×1950×1600
