Gold Ore Ball Mill

Place of Origin China
Brand Name Ascend
Certification CE/ISSO9001
Model Number 900x1200, 1200x1500 1500x3000 1830x3000
Minimum Order Quantity 1 set
Price USD 3500-30000 Per set
Packaging Details Water and rust proof in wooden box or cotainer
Delivery Time 7-10 working days
Payment Terms T/T, Western Union
Supply Ability 20 set per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Application GOLD COPPER ORE Product Name Ball Mill
Usage Mining Ore Grinding Condition New
Motor 22 To 380KW Voltage 380V
Wanrranty One Year
High Light

Gold industrial ball mill

,

Gold rod mill crusher

Leave a Message
Product Description

Small and big capacity 1 2 3 5 10 ton per hour copper gold ore ball mill grinding machine

Ball mill is the important equipment for grinding materials, widely used in ore flotation processing plant and powder-making production line such as gold ore, copper ore, cement, clinker, silica sand, feldspar, slag, quartz, gypsum, limestone, bauxite ore, calcium carbonate, etc.

According to different materials and discharging methods, there are dry ball mills and wet ball mills for choice. Wet ball mill is a kind of continuous ball mill used in ore beneficiation plant.

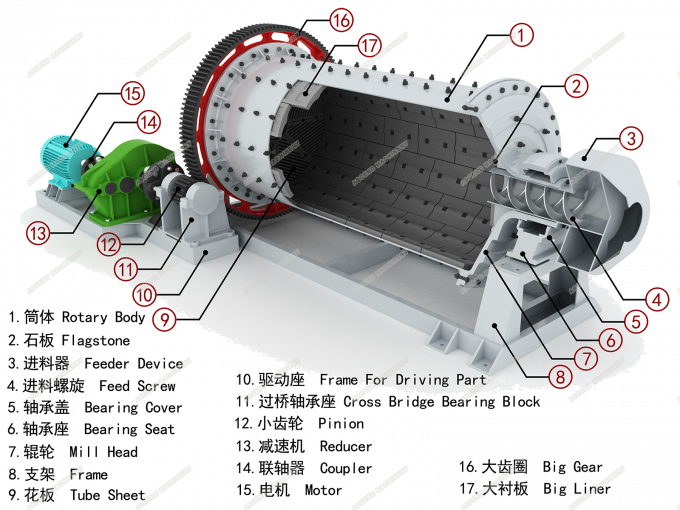

Ball Mill Structure

The structure of ball mill is as follows, which is composed of feed opening, discharging port, cylinder, lining plate, grinding ball, etc.

Gold Ore Ball Mill 0

Ball Mill Types

1. According to different discharging ways, it can be divided into the lattice ball mill (grate ball mill) and overflow ball mill;

2. According to the residence of materials, it can be divided into intermittent ball mill and continuous ball mill;

3. According to different sizes, ball mill machine can be classified into large ball mill and small ball mill;

4. According to different materials, ball grinding mill can be divided into dry ball mill and wet ball mill.

Fote Machinery can design and produce various types of ball mill, and all of our ball mills have the ISO9001 quality certification, which can meet the actual needs of different customers.

Wet Type Ball Mill

Currently, the most commonly used ball mill is wet type ball mill, which can greatly improve the grinding efficiency with uniform particles and does not produce dust. When compared to the wet ball mill, the extension of dry ball mill is not good, and the cracks can't be extended, however, wet ball mill offers a very good solution to this problem.



Dry Type Ball Mill

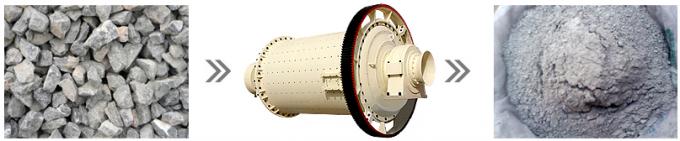

Dry Type Ball Mill used for Production of Powdery Materials

Dry Type Ball Mill used for Production of Powdery Materials

Lattice Type Ball Mill

At present, most of the ball mill is the lattice type ball mill or grate ball mill, which has low slurry surface of the outlet, so that the slurry can quickly pass through to reduce the over grinding; it can contain a lot of balls, both the large and the small balls can be loaded, and the small balls will not be discharged. It can form good working conditions, under the same conditions, its production capacity is higher with low power consumption.

Ball Mill Manufacturer

We are a specialized ball mill manufacturer in China with years of production and sales experience, and we have large and small ball mill for sale. More importantly, our ball mill price is the most reasonable among other manufacturers, welcome to make an enquiry!

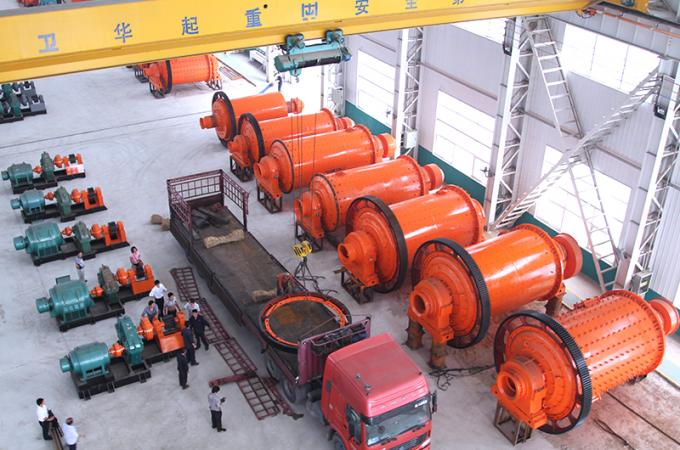

Workshop of Small Ball Mill

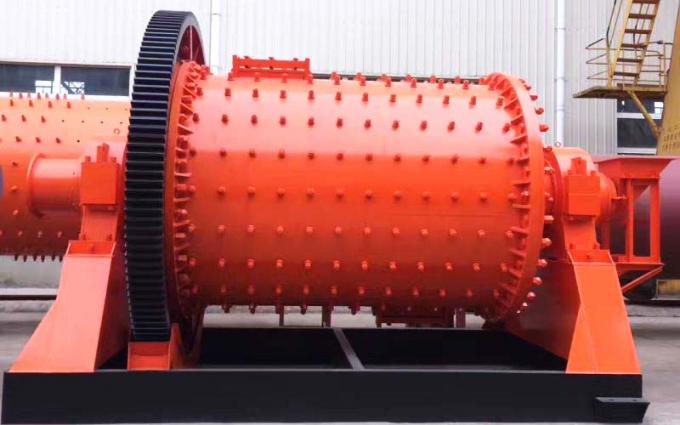

Ball Mill

Technical data

Model Shell rotation speed
(r/min)
Ball load
(t)
Feeding size
(mm)
Discharging size
(mm)
Capacity
(t/h)
Motor power
(kw)
Total weight
(t)
Ф900×1800 36-38 1.5 ≤20 0.075-0.89 0.65-2 18.5 5.85
Ф900×3000 36 2.7 ≤20 0.075-0.89 1.1-3.5 22 6.98
Ф1200×2400 36 3 ≤25 0.075-0.6 1.5-4.8 30 13.6
Ф1200×3000 36 3.5 ≤25 0.074-0.4 1.6-5 37 14.3
Ф1200×4500 32.4 5 ≤25 0.074-0.4 1.6-5.8 55 15.6
Ф1500×3000 29.7 7.5 ≤25 0.074-0.4 2-5 75 19.5
Ф1500×4500 27 11 ≤25 0.074-0.4 3-6 110 22
Ф1500×5700 28 12 ≤25 0.074-0.4 3.5-6 130 25.8
Ф1830×3000 25.4 11 ≤25 0.074-0.4 4-10 130 34.5
Ф1830×4500 25.4 15 ≤25 0.074-0.4 4.5-12 155 38
Ф1830×6400 24.1 21 ≤25 0.074-0.4 6.5-15 210 43
Ф1830×7000 24.1 23 ≤25 0.074-0.4 7.5-17 245 43.8
Ф2100×3000 23.7 15 ≤25 0.074-0.4 6.5-36 155 45
Ф2100×4500 23.7 24 ≤25 0.074-0.4 8-43 245 56
Ф2100×7000 23.7 26 ≤25 0.074-0.4 12-48 280 59.5
Ф2200×4500 21.5 27 ≤25 0.074-0.4 9-45 280 54.5
Ф2200×6500 21.7 35 ≤25 0.074-0.4 14-26 380 61
Ф2200×7000 21.7 35 ≤25 0.074-0.4 15-28 380 62.5
Ф2200×7500 21.7 35 ≤25 0.074-0.4 15-30 380 64.8
Ф2400×3000 21 23 ≤25 0.074-0.4 7-50 245 58
Ф2400×4500 21 30 ≤25 0.074-0.4 8.5-60 320 72
Ф2700×4000 20.7 40 ≤25 0.074-0.4 22-80 380 95
Ф2700×4500 20.7 48 ≤25 0.074-0.4 26-90 480 102
Ф3200×4500 18 65 ≤25 0.074-0.4 As per process conditions 630 149
Ф3600×4500 17 90 ≤25 0.074-0.4 As per process conditions 850 169
Ф3600×6000 17 110 ≤25 0.074-0.4 As per process conditions 1250 198
Ф3600×8500 18 131 ≤25 0.074-0.4 45.8-256 1800 260
Ф4000×5000 16.9 121 ≤25 0.074-0.4 45-208 1500 230
Ф4000×6000 16.9 146 ≤25 0.074-0.4 65-248 1600 242
Ф4000×6700 16.9 149 ≤25 0.074-0.4 75-252 1800 249
Ф4500×6400 15.6 172 ≤25 0.074-0.4 84-306 2000 280
Ф5030×6400 14.4 216 ≤25 0.074-0.4 98-386 2500 320
Ф5030×8300 14.4 266 ≤25 0.074-0.4 118-500 3300 403
Ф5500×8500 13.8 338 ≤25 0.074-0.4 148-615 4500 525
