Product Description

                                                      5000T Per Heap Leaching Design For Gold

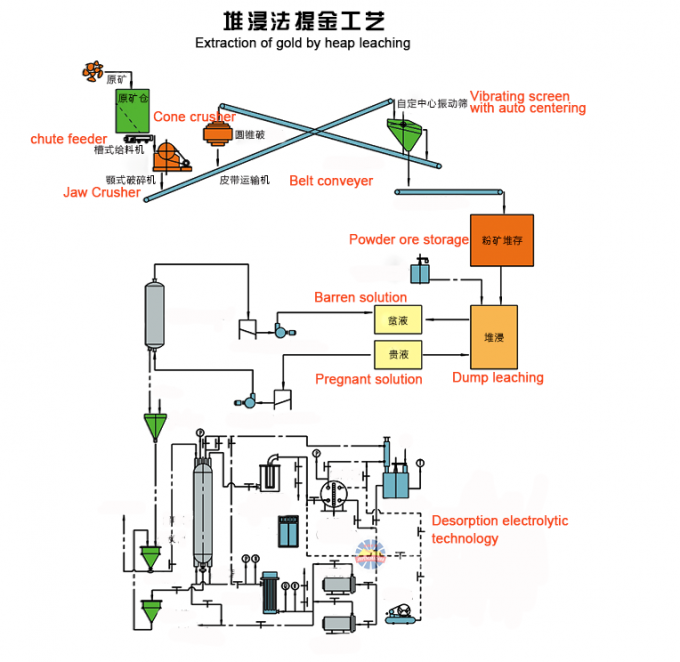

I. Work flow
A. Raw materials preparation (Crushing stage)
Detailed flow process: raw material is transported into coarse by feeder, after crushing, it will be screened. Not-qualified product(big particle) will get into middle crushing stage and then screened by vibrating screen. Finally, qualified product will be transported into storage. Capacity of crushing stage is 400tons per day.
B. Storage area construction
Construct two stock dump of 32*32m, it should be level, and has 3% angle in horizontal and vertical direction. Flatten after laying our clay, and construct drainage ditch and prevent flood into dump.
After storage area is prepared well, lay out high strength polyethylene thin film(film needs to be welded together, prevent leakage, then add 30cm clay on the film, at last, pile up 20cm sand stone and brittle stone(smaller than 20mm).
Construct intercepting gutter, settling pond, barren liquor pond, pregnant liquid pond, pregnant liquid pond and adsorbing column.
C. Heap construction
Qualified crushing product us transported into stock dump by using loader and pile up uniformly to 4m.
D. Maceration and Washing
After construction of storage dump, spray sodium hydroxide of PH 11 on the dump, when PH is close to 10, add cyanide into shower.
E. Pregnant solution goes through adsorption, desorbing and electrolysis, then gets gold mud. After melting, gold mud becomes gold spindle.
F. After heap leaching, ore dump no needs to transport away, which will become permanent waste dump or re-construct after tearing down.
Gold Cyanide Heap Leaching 0
Equipment List


Item Working process Equipment Model Qty.

Unit power

/KW

Remark
1 Storage bin Gold tailing bin 40m3 1pcs   Reinforced concrete
2 Pre-screening Grizzly 350*350 1set   Steel rail & steel rod
3 Feeding Vibrating feeder GZD850*3000 1set 11
4 Coarse crushing Jaw crusher PE400*600 1set 30
5 Conveying Belt conveyor B650×28m 1set 11
6 Screening Circular vibrating screen 2YK1548 1set 15 Mesh size 48 & 24mm
7 Conveying Belt conveyor B650×25m 1set 7.5
8 Secondary Crushing Fine crusher PEX250*1200 1set 45
9 Conveying Conveying B650×18m 1set 7.5
10 Seepage-proofing Polyethylene film HDPE film (1mm thickness) 2sets   5000㎡,Matched with flange, elbow, spray-head, three links, joint and end cap
11 Spraying PVC tube and accessories

Ø65×300m(main pipe)
Ø50×200m(main pipe)
Ø32×1500m (branch pipe)

1sets   Matched with flange, elbow, spray-head, three links, joint and end cap
12 Pregnant liquor Pregnant liquor tank 10×20×1.5 2pcs   Brick setting and cement sand plaster build by self
13 Barren liquor Barren liquor tank 10×20×1.5 2pcs   Brick setting and cement sand plaster build by self
14 Adsorption pump Submersible pump 50WQ30-30-7.5 3sets 7.5

Lift: 30m;
Flow rate: 28m3/h;
One set is on standby;

15 Spraying pump Submersible pump 50WQ30-30-7.5 3sets 7.5

Lift: 30m;
Flow rate: 28m3/h;
One set is on standby;

16 Adsorbing Series group of carbon adsorption column ¢600×2500 2sets / 4 units in one group;
17 Drainage pipes Polyethylene pipe Inner dia. 60mm 300m   Connect spray pumps and adsorption pump, etc
18 Agents feeding Mixer ¢1.5×1.5m 1set 3 Connect spray pumps and adsorption pump.etc
19 Desorption & electrolysis Desorption and electro-winning equipment 300KG 1set 36.7 To process the gold-loaded carbon;
